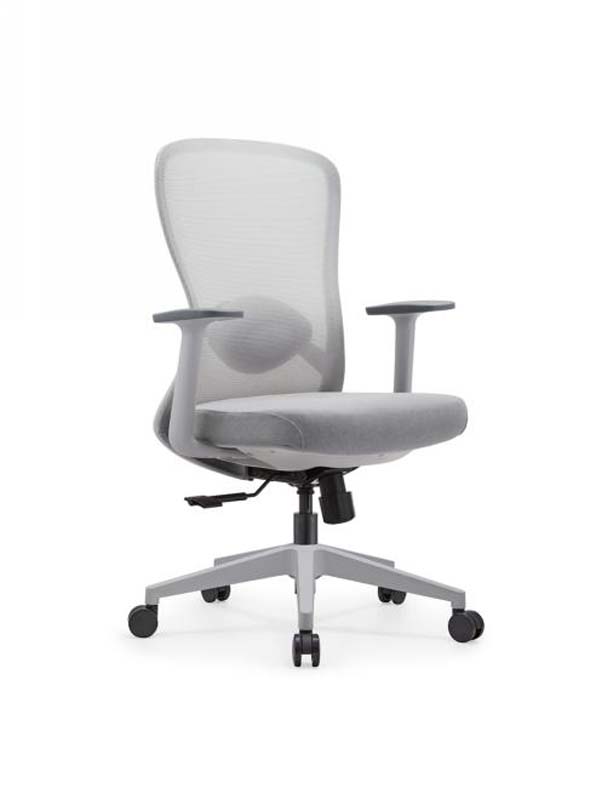

Light Gray Mesh Ergonomic Task Chair with Integrated Lumbar Pad and Fixed Arms (model ET-MID-GRY-01) is listed under Mesh Office Chair. Dimensions: 640 × 630 × 1030 mm. Materials: Light gray flexible mesh stretched over a gray polymer outer frame with rounded top edge. Load capacity: 150 kg. Product Features: mesh,back,integrated,lumbar,pad,fixed,armrests,swivel,task,chair,five-star,caster,base. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | FENGGUAN | Model | ET-MID-GRY-01 |
| Overall dimensions (W × D × H) | 640 × 630 × 1030 mm | Finished Seat Cushion Thickness | 90 mm |
| Backrest Padding Thickness | 70 mm | Lumbar Support Zone Height | 240 mm |
| Clear Width Between Armrests | 540 mm | Recommended user weight | 120 kg |
| Net weight | 14.5 kg | Seat foam density | 45 kg/m3 |
| Back mesh static load | 150 kg | Base static load | 500 kg |
| Gas lift cycle rating | 100000 height cycles | Caster rolling durability | 100000 cycles |
| Seat impact durability | 100000 cycles | Back tilt range | 90 to 115 degrees |
| Warranty | 5 years | Backrest construction | Light gray flexible mesh stretched over a gray polymer outer frame with rounded top edge |
| Lumbar support | Rounded fixed lumbar cushion integrated into the lower mesh back | Seat construction | Gray fabric-covered molded cushion on a black concealed load-bearing shell |
| Armrest construction | Gray molded fixed T-arms with flat soft-touch top pads and upright supports | Mechanism and lift | Black steel tilt mechanism with visible adjustment lever and black gas lift |
| Base and casters | Gray five-star base with five black twin-wheel swivel casters | Height adjustment | Pneumatic seat-height lift with 100 mm stroke operated by the lever visible beneath the seat |
| Recline control | Back tilt through 25 degrees with tension adjustment and upright lock at 90 degrees | Swivel movement | 360 degree swivel around the central gas lift for workstation access |
| Mobility | Five independently pivoting twin-wheel casters provide multi-direction rolling on hard floors and low-pile carpet | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Carton Dimensions | 850× 420× 720 mm |
| Reference Packaged Gross Weight | 23 kg/set | Reference Carton Volume | 0.26 m³/set |
| Indicative 20GP Loading | 135 sets at 85% space utilization | Office workstation use | Suitable for open-plan desks, home offices and administrative workstations where a compact mesh task chair is needed |
| Project seating configuration | Suitable for bulk call-center, studio and meeting-room deployment with light gray upholstery and fixed arms | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 640 × 630 × 1030 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight | 120 kg | |
|---|---|---|
| Net weight | 14.5 kg | |
| Seat foam density | 45 kg/m3 | |
| Back mesh static load | 150 kg | |
| Base static load | 500 kg | |
| Gas lift cycle rating | 100000 height cycles | |
| Caster rolling durability | 100000 cycles | |
| Seat impact durability | 100000 cycles | |
| Back tilt range | 90 to 115 degrees | |
| Warranty | 5 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Backrest construction | Light gray flexible mesh stretched over a gray polymer outer frame with rounded top edge | |
|---|---|---|
| Lumbar support | Rounded fixed lumbar cushion integrated into the lower mesh back | |
| Seat construction | Gray fabric-covered molded cushion on a black concealed load-bearing shell | |
| Armrest construction | Gray molded fixed T-arms with flat soft-touch top pads and upright supports | |
| Mechanism and lift | Black steel tilt mechanism with visible adjustment lever and black gas lift | |
| Base and casters | Gray five-star base with five black twin-wheel swivel casters |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Height adjustment | Pneumatic seat-height lift with 100 mm stroke operated by the lever visible beneath the seat | |
|---|---|---|
| Recline control | Back tilt through 25 degrees with tension adjustment and upright lock at 90 degrees | |
| Swivel movement | 360 degree swivel around the central gas lift for workstation access | |
| Mobility | Five independently pivoting twin-wheel casters provide multi-direction rolling on hard floors and low-pile carpet |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office workstation use | Suitable for open-plan desks, home offices and administrative workstations where a compact mesh task chair is needed | |
|---|---|---|
| Project seating configuration | Suitable for bulk call-center, studio and meeting-room deployment with light gray upholstery and fixed arms |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.1 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
