PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	650 × 650 × 1280 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	135 kg
Net weight	15.5 kg
Seat foam density	45 kg/m3
Back mesh tensile verification load	180 N
Gas-lift vertical stroke	100 mm
Back recline travel	118degrees from upright
Caster rolling durability	100000 cycles
Base static load verification	500 kg
Recommended user height range	190 cm
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest	Breather polyester mesh stretched over a molded aqua polymer frame
Seat cushion	80 mm molded polyurethane foam with aqua woven upholstery
Headrest	Padded aqua mesh-faced cushion on a height-adjustable bracket
Armrests	Fixed aqua polymer T-arms with polymer support posts and flat pads
Central support	Chrome-finish steel gas lift with aqua telescopic sleeve and black mechanism housing
Five-star base and casters	Painted aqua nylon five-star base with five twin-wheel polymer casters

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic lever raises or lowers the seat through a 100 mm stroke
Swivel movement	360-degree swivel around the central gas-lift axis
Back recline	Tilt mechanism reclines to 118 degrees and returns through body-weight tension control
Mobility	Five twin-wheel casters provide rolling movement on hard floors and low-pile carpet

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation use	Suitable for desk-based staff requiring lumbar, head, and arm support during 8 hour work sessions
Home study or executive workspace	Fits contemporary home offices where an aqua mesh chair is used with a 760 mm high desk

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERC-HB-MESH-AQUA-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERC-HB-MESH-AQUA-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERC-HB-MESH-AQUA-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

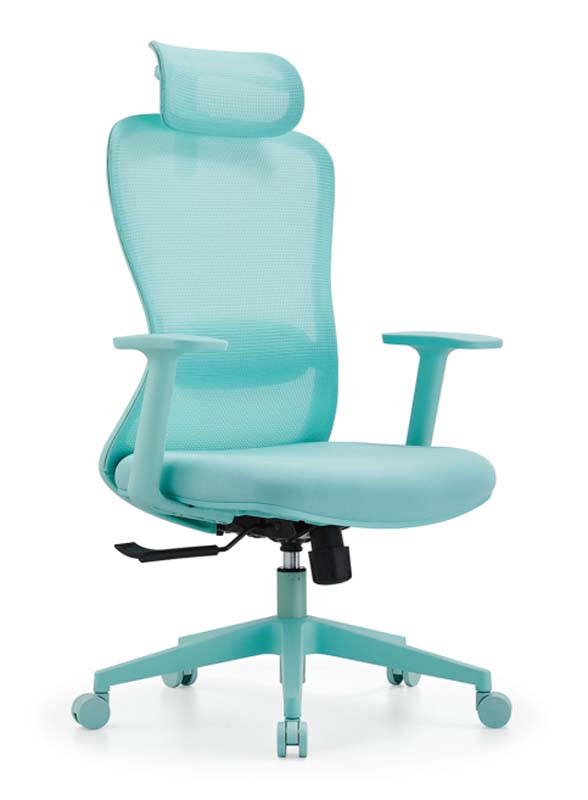

The High-Back Mesh Ergonomic Office Chair with Headrest, model ERC-HB-MESH-AQUA-01, is an unbranded ergonomic seating solution with a coordinated aqua finish. Its tall profile combines a breathable mesh back, padded headrest, contoured seat, and fixed T-armrests on a five-star caster base, giving the chair a streamlined contemporary appearance suited to modern office interiors. The overall dimensions are 650 by 650 by 1280 mm, with 540 mm of clear width between the armrests. Its upright structure is visually anchored by the chrome-finish steel gas lift, aqua telescopic sleeve, black mechanism housing, and painted aqua nylon base. The backrest uses breather polyester mesh stretched over a molded aqua polymer frame, with a 240 mm lumbar support zone and 70 mm backrest padding thickness. The seat features an 80 mm molded polyurethane cushion with a 90 mm finished cushion thickness, 45 kg/m3 foam density, and aqua woven upholstery. The headrest is a padded aqua mesh-faced cushion mounted on a height-adjustable bracket, while the fixed aqua polymer T-arms use polymer support posts and flat pads. The support structure combines painted steel and nylon, and five twin-wheel polymer casters complete the mobile base. Practical operation is centered around the pneumatic seat-height lever, which raises or lowers the seat through a 100 mm gas-lift stroke. The chair provides 360-degree swivel around the central axis, and its tilt mechanism reclines to 118 degrees from upright before returning through body-weight tension control. The twin-wheel casters support rolling movement on hard floors and low-pile carpet, with caster rolling durability verified at 100000 cycles. The back mesh has a tensile verification load of 180 N, recommended user weight capacity is 135 kg, and net weight is 15.5 kg. This model is intended for office workstation use by desk-based staff who need lumbar, head, and arm support during 8 hour work sessions. It also fits contemporary home study or executive workspaces, particularly where an aqua mesh chair is paired with a 760 mm high desk. For procurement, each set is supplied in two cartons, with packaged gross weight of 23 kg, reference carton dimensions of 850 by 420 by 720 mm, and carton volume of 0.26 m3 per set. The reference assembly time is 40 minutes per set. Container planning can use 135 sets in a 20GP configuration at 85 percent space utilization. Buyers should specify the full model when ordering and confirm delivery, installation, and surface-compatibility requirements against the intended workspace.

High-Back Mesh Ergonomic Office Chair with Headrest Specifications
