PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 670 × 1260 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight	136 kg
Static seat load reference	680 kg
Backrest recline force range	90Nf
Gas-lift cycles	100000 cycles
Caster rolling durability	100000 cycles
Tilt mechanism cycles	300000 cycles
Mesh abrasion resistance	60000 Martindale cycles
Net weight	21.5 kg
Color count	1
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Grey woven polyester mesh over a framed flex support, visibly breathable across seat, back and headrest.
Internal seat carrier	Moulded polymer seat shell with a perimeter support frame; exact resin grade requires supplier BOM confirmation.
Back frame	Grey moulded structural frame supporting the mesh tension panel and visible Y-shaped back reinforcement.
Headrest	Curved mesh-covered cushion on a height-adjustable polymer support bracket.
Arm assemblies	Grey polymer arm posts with flat padded polymer arm caps and visible side adjustment hardware.
Base and lift	Polished die-cast aluminium five-star base with chrome-plated steel gas-lift column.

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Synchro recline	Back and seat tilt together at a 1:2.4 movement ratio through a 135-degree recline position with tension control.
Seat height adjustment	Pneumatic lift provides 80 mm height travel through the under-seat lever for 530 mm seat height.
Headrest adjustment	Curved headrest supports 60 mm vertical adjustment and 25-degree angle adjustment for neck support.
Retractable footrest	Sliding mesh leg rest deploys from under the seat for reclined resting and folds away for normal task use.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation use	Suited to desk-based staff requiring breathable mesh support, recline movement and leg rest during breaks.
Executive or home-office space	Appropriate for users seeking a high-back ergonomic chair without bulky leather upholstery.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERM-GR-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERM-GR-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERM-GR-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

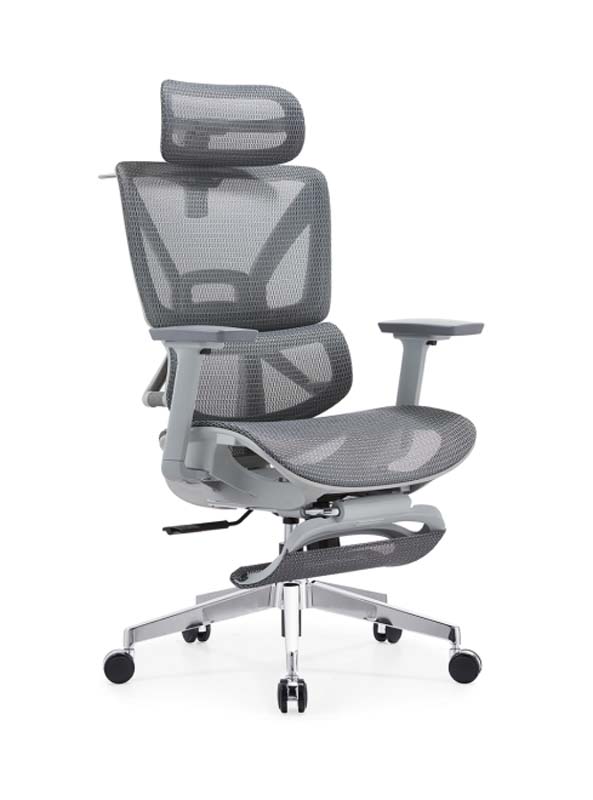

The Grey Mesh Ergonomic Reclining Office Chair with Headrest and Retractable Footrest is an unbranded high-back task chair, model ERM-GR-01, designed for users who want breathability, recline movement, and integrated rest support in one coordinated form. Its grey woven mesh creates a consistent visual language across the seat, back, and curved headrest, while grey moulded plastic components give the frame, arm supports, and back structure a clean commercial appearance. A visible Y-shaped reinforcement on the back adds structural definition, and the polished aluminium five-star base provides a refined contrast to the grey upholstery. The layout includes a tall back, adjustable headrest, flat padded arm caps, a central gas-lift column, and black polyurethane casters. The retractable mesh-padded footrest remains concealed under the seat when not in use, preserving a conventional office-chair profile. Construction combines a framed flex support for the breathable mesh with a moulded polymer seat shell and perimeter support frame. The back uses a grey moulded structural frame to tension the mesh panel, and the arm assemblies feature grey polymer posts with visible side adjustment hardware. The base is polished die-cast aluminium, paired with a chrome-plated steel gas-lift column. Seat cushion thickness is 90 mm, backrest padding is 70 mm, the lumbar support zone is 240 mm high, and the clear width between armrests is 540 mm. Overall dimensions are 680 x 670 x 1260 mm. The chair supports a range of working and resting positions. Its synchro mechanism moves the back and seat together at a 1:2.4 ratio, reaching a 135-degree recline with tension control. Pneumatic seat-height adjustment offers 80 mm of travel through an under-seat lever, with the seat height specified at 530 mm. The headrest provides 60 mm of vertical adjustment and 25-degree angle adjustment for neck support. For breaks, the sliding mesh leg rest deploys from beneath the seat and folds away for normal desk work. Published references include a recommended user weight of 136 kg, a 680 kg static seat load reference, 100,000 gas-lift and caster cycles, 300,000 tilt-mechanism cycles, and mesh abrasion resistance rated to 60,000 Martindale cycles. This model is suited to office workstations where desk-based staff require breathable support and a recline option, as well as executive or home-office settings where a high-back ergonomic chair is preferred without bulky leather upholstery. Procurement teams should note that one set ships in two cartons, with reference assembly time of 40 minutes, packaged gross weight of 23 kg, and carton volume of 0.26 cubic metres per set. The indicative loading figure is 135 sets in a 20GP container at 85 percent space utilization. Buyers needing the exact resin grade should confirm the internal seat-carrier specification on the supplier bill of materials before finalizing specifications or long-term project standards.

Grey Mesh Ergonomic Reclining Office Chair with Headrest and Retractable Footrest Specifications
