PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	620 × 620 × 1010 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	120 kg
Net weight	12.5 kg
Static seat-load verification target	660 kg
Caster rolling durability target	100,000 cycles
Gas-lift cycle target	100,000 height-adjustment cycles
Backrest cyclic load target	120,000 cycles
Fabric abrasion acceptance target	50,000 Martindale cycles
Seat foam density	45 kg/m3
Seat foam rebound	40%
Recommended users per day	1

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support	Black flexible mesh panel in a black molded polymer frame
Seat upholstery	Green woven fabric over molded foam cushion
Seat cushion	70 mm molded polyurethane foam, 45 kg/m3 procurement density
Armrests	Black fixed loop arms with polymer contact pads and angled supports
Internal seat shell	12 mm molded plywood or polypropylene seat carrier
Gas lift	50 mm chrome-plated steel class-3 gas lift with black plastic sleeve

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic lever raises and lowers the seat through a 100 mm stroke, with 440 mm selected as the lower procurement value
Back tilt	Weight-activated synchro tilt with 12-degree recline and upright lock position
Tilt tension	Rear rotary knob adjusts backward resistance for users up to 120 kg
Mobility	Five 50 mm twin-wheel casters enable rolling on carpet or hard floors

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	680 x 620 x 320 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary workplace	Individual workstations, open-plan offices and home offices where a compact mesh task chair is needed for 6-hour daily seating
Procurement configuration	Suitable for bulk staff seating with green seat accents and black neutral frames; pair with 720 to 760 mm high standard desks

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OC-MESH-MB-50-GN

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OC-MESH-MB-50-GN

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OC-MESH-MB-50-GNOpen Export Tool

Quick Actions

Post an RFQ

Product Description

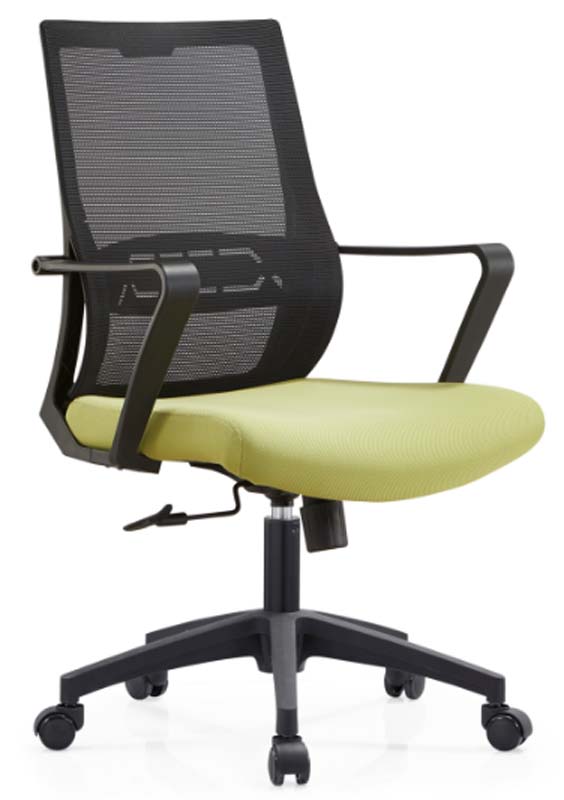

The Mid-Back Mesh Swivel Task Chair with Green Seat is an unbranded office chair designed for practical daily use in individual workstations, open-plan offices, and home offices. Its balanced appearance combines a black flexible mesh back, black molded polymer frame, fixed loop arms, and five-star base with a green woven fabric seat, giving the chair a neutral commercial look with a distinct color accent. The mid-height back and compact 620 by 620 by 1010 mm footprint support an orderly layout in task-focused environments, while the 540 mm clear width between armrests leaves accessible room at the seat. Construction centers on a black mesh panel set in a molded polymer back frame. The seat uses green woven fabric over molded foam, with a 90 mm finished cushion and a 70 mm molded polyurethane cushion specified at 45 kg/m3 procurement density. A 12 mm molded plywood or polypropylene carrier supports the seat internally. Black fixed loop arms include polymer contact pads and angled supports, while the chair rests on a nylon five-star base with five 50 mm twin-wheel casters. Height movement is provided by a 50 mm chrome-plated steel class-3 gas lift with a black plastic sleeve. Functional features suit general desk work. A pneumatic lever controls seat height through a 100 mm stroke, using 440 mm as the lower procurement value. The weight-activated synchro tilt allows a 12-degree recline and includes an upright lock position, while a rear rotary knob adjusts backward resistance for users up to 120 kg. Swivel movement and twin-wheel casters support mobility across carpet or hard floors. The chair is suited to bulk staff seating where green seat accents can complement black frames and broader office furniture schemes. It is intended for six hours of daily seating and pairs with standard desks 720 to 760 mm high. Procurement teams should note the chair ships as one set across two cartons, with reference packaged gross weight of 23 kg per set, reference assembly time of 40 minutes per set, and reference carton volume of 0.26 m3 per set. Design validation targets include a 660 kg static seat-load verification target, 100,000 caster rolling cycles, 100,000 gas-lift height-adjustment cycles, 120,000 backrest cyclic loads, and 50,000 Martindale fabric abrasion cycles, making these useful criteria when comparing supplier samples and inspection expectations.
