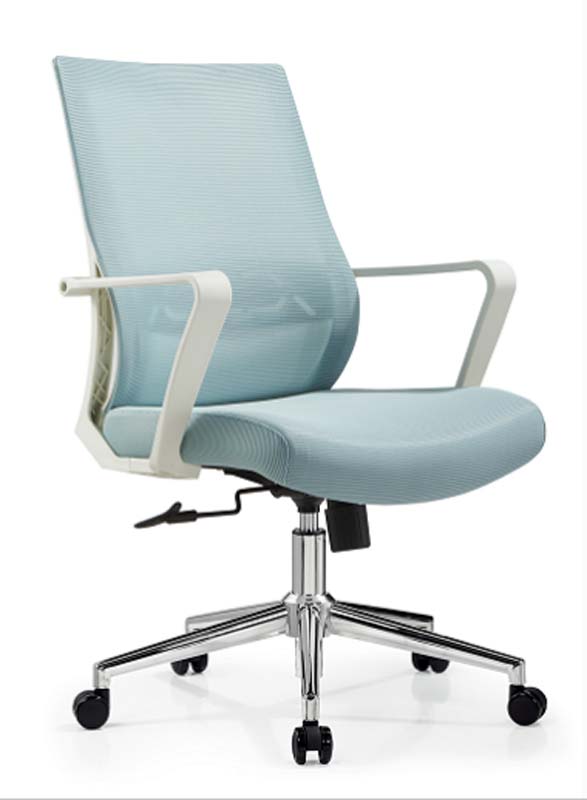

Product supplierMid-Back Light Blue Mesh Swivel Task Chair with White Fixed Arms, Light blue fine-rib knitted polyester mesh stretched over a molded perimeter frame
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 620 × 620 × 980 mm | |
|---|---|---|
| Overall footprint | 620 x 620 x 980 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 13.5 kg | |
|---|---|---|
| Recommended user weight capacity | 120 kg | |
| Seat foam density | 45 kg/m3 | |
| Back mesh tensile verification load | 15 kg static point load | |
| Gas lift cycles | 100,000 height-adjustment cycles | |
| Caster rolling durability | 100,000 cycles | |
| Base static load verification | 500 kg downward static test | |
| Seat sliding and edge durability | 100,000 cycles | |
| Colorway count | 1 visible light blue and white colorway | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Backrest upholstery | Light blue fine-rib knitted polyester mesh stretched over a molded perimeter frame | |
|---|---|---|
| Seat upholstery | Light blue woven fabric over contoured foam cushion | |
| Seat cushion core | Molded polyurethane foam, 65 mm thick at front edge with rounded waterfall profile | |
| Arm and back frame | White glass-fiber-reinforced polypropylene loop structure connecting armrest to back support | |
| Seat underside | Black steel and molded support pan linked to the tilt mechanism | |
| Base and lift | Polished chrome-plated steel five-star base with chrome gas-lift outer tube |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Height adjustment | Pneumatic gas lift raises the seat through a 100 mm stroke using the right-side paddle | |
|---|---|---|
| Swivel function | 360-degree swivel seat supported by a central gas-lift bearing and five-star base | |
| Back recline | Single-lever tilt mechanism allows a 14-degree back recline and upright lock position | |
| Mobility | Five twin-wheel casters provide omnidirectional movement without visible wheel locks |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office workstation | Suits daily computer and desk work where a compact 620 mm footprint and rolling swivel base support flexible seating | |
|---|---|---|
| Meeting or study space | Suitable for conference rooms, home studies and shared desks because fixed arms and mid-back support provide simple low-maintenance seating |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1335-1 applicability | Use for office-chair dimensions and safety-related geometric verification | |
|---|---|---|
| EN 1335-2 applicability | Use for safety, stability and structural performance requirements of the task chair | |
| EN 1335-3 applicability | Use for structural test methods covering seat, back, arms and base components | |
| EN 1022 applicability | Use for chair stability verification under forward, rearward and lateral loading |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.1 applicability | Use the office chairs standard for back, seat, base, arm, caster and fatigue verification in commercial tenders |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 10357.3 applicability | Use for backward static-load and durability testing of chairs in commercial procurement inspection | |
|---|---|---|
| GB/T 27924 suitability | Use for laboratory evaluation of office-chair strength, durability and stability when writing Chinese market QC requirements |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 10357.3 applicability: Use for backward static-load and durability testing of chairs in commercial procurement inspection; 2. GB/T 27924 suitability: Use for laboratory evaluation of office-chair strength, durability and stability when writing Chinese market QC requirements; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
