PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	650 × 650 × 1290 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	135 kg
Net weight	16.5 kg
Seat foam density	45 kg/m3
Back mesh tensile target	180 N/50 mm
Fabric abrasion resistance	50,000 Martindale cycles
Gas lift cycles	100,000 height-adjustment cycles
Caster rolling durability	100,000 cycles
Base static load	500 kg downward static load
Tilt mechanism durability	300,000 cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest	Gray-black woven mesh tensioned in a black molded polymer frame
Seat cushion	80 mm molded polyurethane foam with black woven upholstery
Lumbar support	Fixed padded lumbar band with black fabric or foam facing
Headrest	Framed mesh-and-foam headrest on a black polymer support bracket
Armrests	Black fixed T-shaped polymer arm pads with molded vertical supports
Frame and mechanism	Black polymer back frame with steel tilt plate under the seat

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic lever raises or lowers the seat over a 100 mm stroke using the visible right-side lever.
Back recline	Synchro-tilt movement reclines to 118 degrees and locks at 3 positions through the under-seat mechanism.
Tension adjustment	Rear rotary knob adjusts back-recline resistance for users up to 135 kg.
Swivel mobility	360-degree swivel seat and five twin-wheel casters support movement around a workstation.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	680 x 640 x 360 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation use	Suited to individual workstations and open-plan desks where breathable back support and swivel mobility are needed for 8 hour task use.
Home office or study use	Black neutral finish and compact 650 mm footprint fit home offices, study rooms and shared computer desks.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERG-MESH-HB-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERG-MESH-HB-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERG-MESH-HB-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

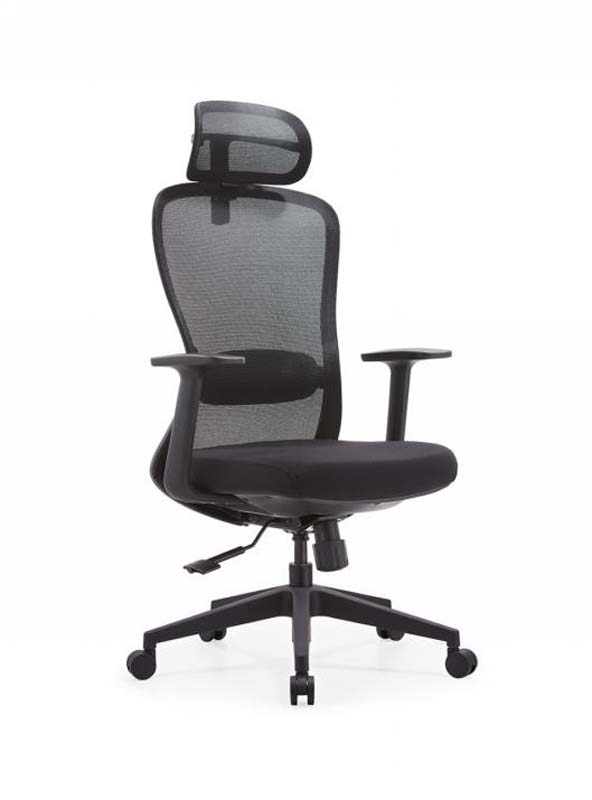

The Black High-Back Mesh Ergonomic Office Chair with Headrest, model ERG-MESH-HB-01, offers a streamlined task seating solution for professional and home settings. Its upright, high-back silhouette combines a gray-black woven mesh backrest tensioned within a black molded polymer frame, a contoured upholstered seat, fixed T-shaped armrests, and a matching framed mesh-and-foam headrest. A fixed padded lumbar band with black fabric or foam facing provides a defined support zone, while the five-star nylon base and twin-wheel casters give the chair a balanced, mobile profile. Overall dimensions are 650 by 650 by 1290 millimeters, with a clear width of 540 millimeters between the armrests. Construction centers on breathable mesh for the back, molded polyurethane foam for the seat, and black polymer components for the frame, arm pads, and headrest support bracket. The seat cushion uses 80 millimeters of molded foam with black woven upholstery, paired with a finished cushion thickness of 90 millimeters; the backrest padding thickness is 70 millimeters. Beneath the seat, a steel tilt plate and steel gas lift connect the seating structure to the nylon base. Product specifications list seat foam density at 45 kilograms per cubic meter, back mesh tensile target at 180 newtons per 50 millimeters, fabric abrasion resistance at 50,000 Martindale cycles, gas lift durability at 100,000 height-adjustment cycles, and caster rolling durability at 100,000 cycles. Functionally, the chair supports everyday desk work through pneumatic seat-height adjustment with a 100 millimeter stroke controlled by the visible right-side lever. Its synchro-tilt mechanism reclines to 118 degrees and locks in three positions, while a rear rotary knob adjusts back-recline resistance. The 360-degree swivel seat and five twin-wheel casters allow easy movement around a workstation. The recommended user weight capacity is 135 kilograms, and the chair has a net weight of 16.5 kilograms. This model is appropriate for individual office workstations, open-plan desks, home offices, study rooms, and shared computer desks where a neutral black finish and compact 650 millimeter footprint are preferred. Buyers should note that fixed armrests limit width and positioning flexibility, plan for assembly time of 40 minutes per set, and allow receiving and storage space for two cartons with a packaged gross weight of 23 kilograms per set.

Black High-Back Mesh Ergonomic Office Chair with Headrest Specifications
