PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	660 × 1230 × 1330 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight	150 kg
Net weight	18.5 kg
Seat foam load capacity	150 kg static seat load
Back static load	136 kg
Base vertical static load	1134 kg
Caster rolling durability	100000 cycles
Gas-lift cycles	100000 height-adjustment cycles
Tilt mechanism cycles	300000 recline cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support	Black breathable mesh tensioned over a contoured nylon outer frame
Seat cushion	Orange woven textile over 60 mm molded foam with density 45 kg/m3
Headrest	Black padded synthetic-leather cushion on a curved polymer support bracket
Armrests	Injection-molded black nylon T-arms with padded flat top surfaces
Frame and mechanism	Black steel tilt mechanism with nylon back shell and polymer control levers
Base and casters	Black nylon five-star base with five 60 mm dual-wheel nylon casters

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Recline and lock	Synchro-tilt mechanism reclines from 100 degrees upright to 140 degrees and locks at 4 positions
Seat height adjustment	50 mm gas lift provides 90 mm height travel from 450 to 540 mm
Pull-out footrest	Telescoping leg rest slides forward 430 mm and supports the lower legs during reclining
Swivel and mobility	360-degree swivel seat with five dual-wheel casters for individual movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation use	Suited to long-duration desk work where recline, head support, and mobile seating are needed
Manager or home-office recline use	Pull-out footrest and 140-degree recline support short breaks without a separate lounge chair

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 16139 applicability	Applicable standards and test results require confirmation
EN 1022 applicability	Chair stability determination for forward, rearward, and side loading

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.11 applicability	Heavy-duty office chair structural validation for users up to 159 kg
ANSI/BIFMA X5.1 applicability	General-purpose office chair safety, strength, fatigue, and stability tests

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357.3 applicability	Furniture strength and durability test for chairs: specify seat/back static and fatigue testing during acceptance
GB/T 10357.6 applicability	Furniture floor-coverage white-bump test: specify caster and base floor protection verification

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357.3 applicability: Furniture strength and durability test for chairs: specify seat/back static and fatigue testing during acceptance;
2. GB/T 10357.6 applicability: Furniture floor-coverage white-bump test: specify caster and base floor protection verification;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EM-OC-OR-FR-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EM-OC-OR-FR-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EM-OC-OR-FR-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

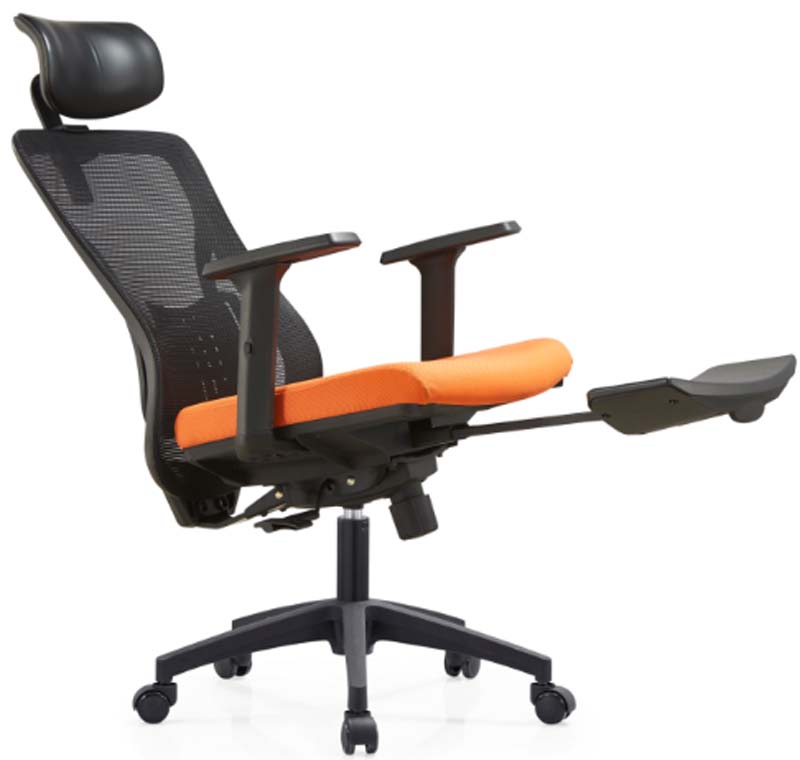

The Ergonomic High-Back Mesh Reclining Office Chair with Headrest and Pull-Out Footrest is an unbranded ergonomic office chair, model EM-OC-OR-FR-01, designed for users who want task seating support with a built-in recline option. Its appearance combines a black mesh back and black nylon frame with an orange woven fabric seat, creating a clear two-tone look suitable for modern offices, manager workstations, and home offices. The high-back layout includes a padded synthetic-leather headrest, contoured back support, T-shaped armrests, a five-star mobile base, and a telescoping footrest that remains concealed beneath the seat until required. The chair has a finished seat cushion thickness of 90 mm, backrest padding thickness of 70 mm, a lumbar support zone height of 240 mm, and a clear width between armrests of 540 mm. Construction balances breathable support with cushioned comfort. The backrest uses black breathable mesh tensioned over a contoured nylon outer frame, while the seat combines orange woven textile over molded foam. The headrest is a black padded synthetic-leather cushion mounted on a curved polymer support bracket. The armrests are injection-molded black nylon T-arms with padded flat top surfaces, and the recline system uses a black steel tilt mechanism with a nylon back shell and polymer control levers. Mobility is provided by a black nylon five-star base fitted with dual-wheel nylon casters and a steel gas lift. The footrest is also padded with synthetic leather for lower-leg comfort during reclining. Functionally, the chair supports 360-degree swivel movement and easy repositioning on its five casters. The synchro-tilt mechanism reclines from a 100-degree upright position to 140 degrees and locks at four positions, allowing the user to move between focused desk posture and a supported rest posture. Seat height is adjustable through the gas lift, with 90 mm of height travel. When a break is desired, the telescoping leg rest slides forward 430 mm, giving lower-leg support without requiring a separate lounge chair. The recommended user weight is 150 kg, and the chair’s net weight is 18.5 kg. This model is well suited to long-duration workstation use where head support, recline, lumbar containment, and mobility are priorities. It is also practical for private offices or residential workspaces where one chair must serve both desk work and short relaxation periods. Procurement teams should plan for assembly, as each set is supplied in two cartons with a reference assembly time of 40 minutes. The packaged gross weight is 23 kg per set, carton volume is 0.26 cubic meters per set, and an indicative 20-foot general-purpose container can accommodate 135 sets at 85 percent space utilization. These logistics make the chair relevant for individual purchases as well as larger office fit-outs.
