PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	670 × 650 × 1080 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	136 kg
Net weight	15.5 kg
Seat foam density	45 kg/m3
Seat foam indentation hardness	65 N
Back mesh tensile load	120 kgf
Gas-lift dynamic load rating	150 kg
Caster rolling durability	100000 cycles
Base static vertical load	1134 kg
Seat-front static load	159 kgf
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support	Flexible black woven mesh over a curved polymer outer frame
Seat cushion	80 mm molded polyurethane foam with black woven fabric upholstery
Seat inner support	12 mm molded plywood or polymer seat pan under the cushion
Arm pads	Black matte polymer pads mounted on height-adjustable posts
Arm supports	Black painted steel or reinforced nylon vertical posts with polymer adjustment components
Mechanism	Black steel tilt mechanism with polymer lever handles and multi-position plate

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic right-hand lever raises and lowers the seat through a 100 mm stroke
Backrest recline	Center-tilt mechanism permits a 12-degree recline from upright to relaxed work posture
Tilt tension and lock	Rear knob controls spring tension and lever locks the back at selected positions within the 12-degree range
Swivel function	360-degree swivel seat rotates around the gas-lift center for multitask access

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office workstations	Suitable for desks 760 mm high because the 540 mm seat range supports standard monitor and keyboard tasks
Meeting and focus rooms	Black rolling mesh chair works for 8 hour meetings, hot desks, and individual focus work

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1 applicability	Use office-work chair dimensional safety and ergonomic geometry requirements for design verification
EN 1335-2 applicability	Use safety, structural strength, and stability test requirements for the chair, base, casters, and mechanism
EN 1335-3 applicability	Use structural and safety test methods to validate back, seat, arm, and caster endurance
EN 1022 applicability	Use furniture overturning test method to verify seated stability on a level floor

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.11 applicability	Use general-purpose office-chair safety and durability tests for static, impact, fatigue, and caster loads

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2024 applicability	Use for wooden furniture dimensional and structural quality checks if a wood seat pan is supplied
GB/T 10357.3 applicability	Use chair strength and durability test methods for back, seat, and leg loading validation
GB/T 3326 applicability	Use furniture dimensional-coordination rules when verifying seat, back, and clearance dimensions
GB 17927 applicability	Use upholstered furniture fire-safety requirements if the project specifies Chinese fire performance
GB 18584 applicability	Use indoor wooden-furniture limited-substance testing if wood-based panels are used in the seat pan

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2024 applicability: Use for wooden furniture dimensional and structural quality checks if a wood seat pan is supplied;
2. GB/T 10357.3 applicability: Use chair strength and durability test methods for back, seat, and leg loading validation;
3. GB/T 3326 applicability: Use furniture dimensional-coordination rules when verifying seat, back, and clearance dimensions;
4. GB 17927 applicability: Use upholstered furniture fire-safety requirements if the project specifies Chinese fire performance;
5. GB 18584 applicability: Use indoor wooden-furniture limited-substance testing if wood-based panels are used in the seat pan;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ET-MESH-BLK-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ET-MESH-BLK-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ET-MESH-BLK-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

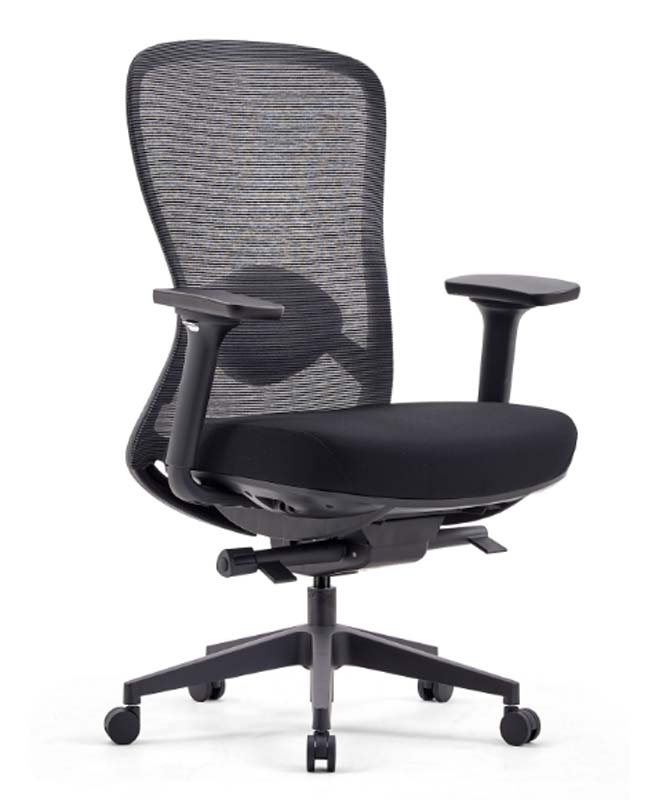

The Black Mesh Ergonomic Task Chair presents a practical office seating solution with a clean black finish and a structured five-star footprint. Its visual character is defined by a flexible woven mesh back set within a curved polymer frame, paired with a black fabric-upholstered foam seat. Height-adjustable armrests flank the seat, while the central gas lift connects to a painted steel base fitted with twin-wheel casters, giving the chair a familiar professional task-chair silhouette suited to both shared and individual work settings. Construction balances breathable support with durable working components. The backrest uses flexible black woven mesh over a molded polymer outer frame and includes a defined lumbar support zone. The seat features molded polyurethane foam covered in black woven fabric, with a molded plywood or polymer seat pan beneath the cushion. Arm pads are finished in matte black polymer and mounted on height-adjustable posts supported by black painted steel or reinforced nylon structures. A black steel tilt mechanism, polymer lever handles, steel gas lift, and nylon twin-wheel casters complete the functional assembly. The chair is designed for active desk use. A right-hand pneumatic lever adjusts seat height, supporting transition between different desk postures. The center-tilt mechanism allows the backrest to recline from an upright position to a relaxed working angle, with a rear knob for tilt tension and a lever to lock selected positions. The seat also swivels fully around the gas-lift center, improving reach in multitask environments, while the rolling base supports movement across typical office floors. This model is appropriate for open-plan workstations, standard desk-based computer tasks, hot-desking areas, meeting rooms, and focus rooms. Its understated black appearance coordinates with commercial office furniture, and its adjustable features make it suitable for users sharing seating across shifts or flexible workspaces. It can also serve home offices and residential study areas where task seating is required for extended work sessions. Procurement teams should note that the chair is supplied unbranded under model ET-MESH-BLK-01 and ships as one set across two cartons, with assembly required. The specification includes a recommended user weight capacity, detailed cushion and lumbar dimensions, caster durability rating, and packaged weight and volume data that can support freight and storage planning. Buyers should allocate time for on-site assembly, confirm floor surface compatibility with the casters, and evaluate the armrest spacing, seat adjustment range, and recline behavior against the intended workstation or shared seating application.

Black Mesh Ergonomic Task Chair with Height-Adjustable Arms and Swivel Five-Star Base Specifications
