PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 680 × 1290 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight	135 kg
Net weight	18.5 kg
Static base verification load	680 kg
Seat impact test target	100000 cycles
Gas-lift rotation life	100000 cycles
Caster rolling durability	100000 cycles
Backrest tilt range	125degrees; published value 125 degrees
Seat slide travel	0 mm
Recommended user height	1900 mm; published value 1900 mm
Color options	2 finishes

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest and headrest fabric	Breathable gray polymer mesh stretched over a framed back and headrest
Seat cushion	Molded polyurethane foam with orange woven fabric upholstery
Seat-support inner frame	12 mm molded plywood or 2.0 mm steel seat plate under the cushion
Back support frame	Dark gray glass-fiber-reinforced polypropylene or nylon frame with internal reinforcing ribs
Armrests	Black polyurethane or PVC pads on silver painted metal/die-cast support posts
Base and lifting parts	Polished aluminum-alloy five-star base, black steel gas lift and black steel tilt mechanism

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat-height adjustment	Pneumatic lever raises the seat through a 90 mm stroke from 450 to 540 mm
Back tilt and lock	Synchronized tilt mechanism reclines to 125 degrees and locks in 4 positions
Headrest positioning	Headrest adjusts 80 mm vertically and tilts 25 degrees for upper-neck support
Lumbar and back support	Framed mesh back provides passive flexible lumbar support with a visible central support bridge

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation use	Suited to individual desk-based staff requiring 4-hour to 8-hour seated task support
Meeting and manager spaces	Suitable for executive desks, home offices and project rooms where mobility and recline are needed

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1 applicability	Office furniture seating dimensions and dimensional safety assessment
EN 1335-2 applicability	Office chair safety, structural and mechanical performance requirements
EN 1335-3 applicability	Office chair test methods for structural strength and durability
EN 1022 applicability	Determination of chair stability for seating without tilt or with controlled tilt

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1 applicability	Applicable standards and test results require confirmation

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357.3 applicability	Furniture strength and durability test for chair seats and backs
GB/T 3324 applicability	General wooden furniture technical requirements may apply only to wooden hidden seat boards

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357.3 applicability: Furniture strength and durability test for chair seats and backs;
2. GB/T 3324 applicability: General wooden furniture technical requirements may apply only to wooden hidden seat boards;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EO-HB-MESH-ORG-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EO-HB-MESH-ORG-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EO-HB-MESH-ORG-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

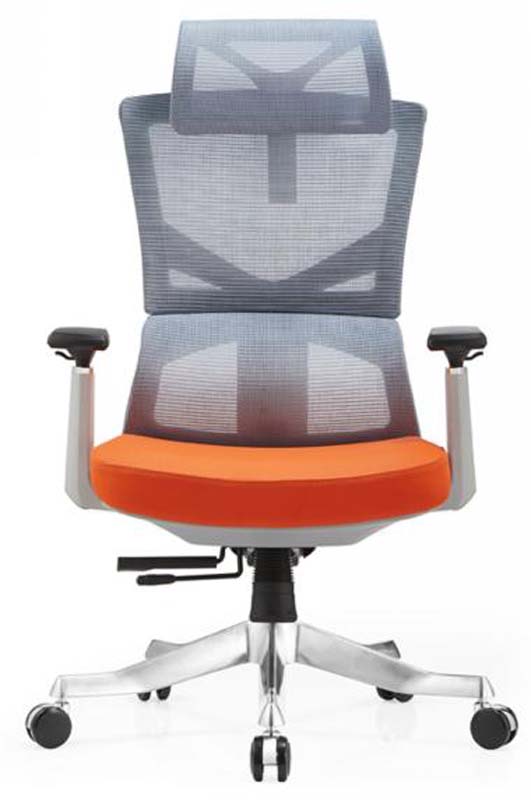

The High-Back Mesh Ergonomic Office Chair with Headrest and Orange Seat presents a mobile high-back profile with a breathable gray mesh back and headrest, an orange upholstered seat, black arm pads, silver-painted supports, and a polished aluminum-alloy five-star base. Its overall dimensions are 680 by 680 by 1290 millimeters, with 540 millimeters of clear width between the armrests. The gray polymer mesh is stretched over framed back and headrest structures, while the visible central support bridge and 240 millimeter lumbar support zone create a defined supportive shape across the back. Construction balances comfort with robust components. The seat uses molded polyurethane foam 90 millimeters thick, covered in orange woven fabric, while backrest padding is 70 millimeters thick. Beneath the cushion, the seat-support inner frame is supplied as 12 millimeter molded plywood or a 2.0 millimeter steel seat plate. The back frame is dark gray glass-fiber-reinforced polypropylene or nylon with internal reinforcing ribs. Armrests combine black polyurethane or PVC pads with silver painted metal or die-cast support posts. The polished five-star base is paired with black steel gas-lift and tilt components and nylon twin casters. Functional adjustment is designed for desk-based work. A pneumatic lever controls seat height through a 90 millimeter stroke, raising the seat from 450 to 540 millimeters. The synchronized tilt mechanism reclines to 125 degrees and locks in four positions. The headrest moves 80 millimeters vertically and tilts 25 degrees to support the upper neck, while the framed mesh provides passive flexible lumbar support. The chair is rated for a recommended user weight of 135 kilograms and has a net weight of 18.5 kilograms. Published durability targets include a 680 kilogram static base verification load, 100000 seat-impact cycles, 100000 gas-lift rotation cycles, and 100000 caster rolling cycles. This model is suited to individual office workstations for staff requiring four to eight hours of seated task support. It also fits executive desks, home offices, meeting areas, manager spaces, and project rooms where mobility and recline are useful. Procurement planning should note that each unbranded set ships as one chair in two cartons, with packaged gross weight of 23 kilograms and carton volume of 0.26 cubic meters. Assembly time is referenced at 40 minutes per set, and an indicative 20-foot general-purpose container loads 135 sets at 85 percent space utilization. Buyers should review the alternate frame, arm support, and internal seat-support constructions when confirming exact product specifications.

High-Back Mesh Ergonomic Office Chair with Headrest and Orange Seat Specifications
