PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	660 × 680 × 1290 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	136 kg
Net weight range	20 kg
Back tilt angle range	125degrees
Seat-height travel	100 mm
Recommended user height range	190 cm
Seat static load verification target	136 kg
Caster rolling durability target	100000 cycles
Gas-lift durability target	100000 height-adjustment cycles
Back frame static load target	136 kg
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support	Black woven mesh stretched over a framed resin outer back with visible lumbar contour
Seat cushion	80 mm molded polyurethane foam pad with black woven fabric or mesh-faced upholstery
Headrest	Curved black mesh panel over resin shell with soft front padding and visible top trim
Armrests	Rigid black resin T-arm posts with flat padded top pads and silver-grey insert on the visible arm
Central mechanism	Black steel tilt plate with resin cover, round tension knob and lift actuator visible under the seat
Gas lift and base	Black metal telescoping gas lift paired with a five-star resin or nylon-composite caster base

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lever raises or lowers the seat through 100 mm for 760 mm desk compatibility
Back recline	Multi-position tilt mechanism allows the back to recline from 95 to 125 degrees with lockable upright and reclined positions
Tilt tension control	Round rear under-seat knob adjusts recline resistance for users up to 136 kg
Recline Angle / Lock Reference	125° with 3suggested lock positions

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Gross weight	21 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan and private offices	Suits task seating at 760 mm desks because of 550 mm seat height, lumbar mesh and mobile caster base
Home office and workstation use	Appropriate for daily computer work with headrest support, recline control and 360-degree swivel

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EM-HB-MESH-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EM-HB-MESH-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EM-HB-MESH-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

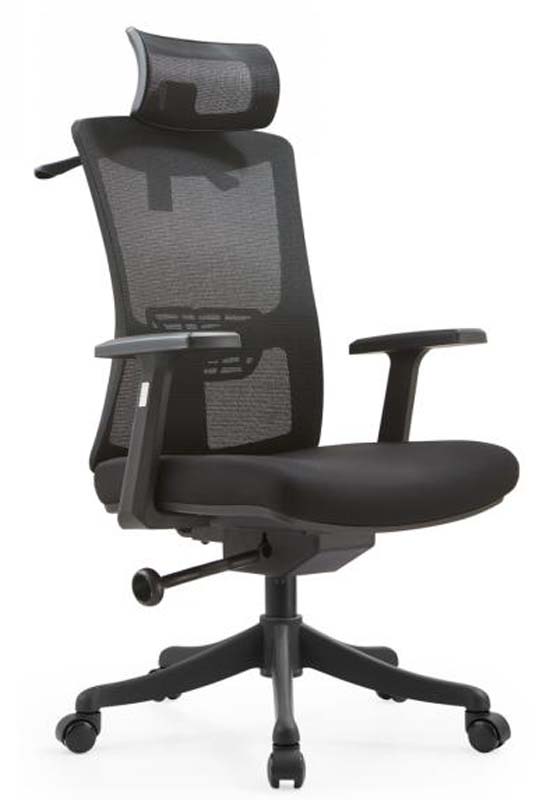

The High-Back Mesh Ergonomic Office Chair with Headrest and Adjustable Arms, model EM-HB-MESH-01, is a professional task chair finished in black. Its tall mesh back forms the main visual element, with a framed resin outer structure and a visible lumbar contour. The curved mesh headrest sits above the backrest and includes a resin shell, soft front padding and visible top trim. Below, the upholstered seat presents a clean rectangular work-chair profile, while rigid T-shaped arm posts and a five-star caster base reinforce its commercial office appearance. Silver-grey inserts on the arms provide subtle contrast against the black frame. Overall dimensions are 660 x 680 x 1290 mm, with 540 mm of clear width between the armrests. Construction combines breathable black woven mesh, molded polyurethane foam, engineered resin and black metal components. The seat uses an 80 mm molded foam pad with black woven fabric or mesh-faced upholstery, and the finished cushion thickness is 90 mm. Backrest padding thickness is 70 mm, and the lumbar support zone height is 240 mm. The armrests use rigid black resin posts with flat padded top pads. Under the seat, a black steel tilt plate with resin cover incorporates a round tension knob and visible lift actuator. A black metal telescoping gas lift connects the seat to the resin or nylon-composite five-star base, which is fitted with casters for movement. Functionally, the chair supports daily computer work through pneumatic seat-height adjustment, a 360-degree swivel, recline control and headrest support. The height lever provides 100 mm of seat-height travel and is intended for compatibility with 760 mm desks. The multi-position tilt mechanism allows the back to recline from 95 to 125 degrees, with lockable upright and reclined positions and three suggested lock positions. A rear under-seat knob adjusts tilt tension to match recline resistance. The stated recommended user weight capacity is 136 kg, and the recommended user height extends to 190 cm. The product facts also list a seat static load verification target of 136 kg and a caster rolling durability target of 100000 cycles. This chair is suited to open-plan offices, private offices, home offices and dedicated workstation settings, particularly for task seating at standard desks. Its mobile base, swivel and adjustable recline make it practical for users who move between keyboard work, calls and relaxed reading positions. For procurement, the chair is unbranded and supplied as one set in two cartons. The reference assembly time is 40 minutes per set. Reference packaged gross weight is 23 kg per set, with carton dimensions of 850 x 420 x 720 mm and a carton volume of 0.26 cubic meters per set. Buyers should plan for two-box receiving, assembly time and final checks of height, tilt, lock and caster operation after installation.

High-Back Mesh Ergonomic Office Chair with Headrest and Adjustable Arms Specifications
