PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 670 × 1320 mm
Overall footprint	680 x 670 x 1320 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Chair net weight	22 kg
Recommended user weight capacity	150 kg
Recommended user height range	160 to 190 cm
Seat-foam density	45 kg/m3
Seat-foam rebound	40%
Back-mesh tensile load	120 kg
Gas-lift service class	Class 4
Base static load target	1136 kg
Caster rolling durability	100000 cycles
Warranty duration	5 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest construction	Black flexible mesh stretched over a black polymer outer frame with internal Y-shaped spine support
Seat cushion construction	70 mm molded foam pad wrapped in black woven fabric and supported by a contoured polymer seat shell
Headrest construction	Breathable black mesh insert in a curved padded polymer frame mounted on a height-adjustable bracket
Armrest construction	Black rigid polymer arm posts and soft-touch flat arm pads connected to the seat support frame
Under-seat mechanism	Black steel tilt mechanism with tension knob, lift lever and chrome-plated center column
Base and casters	Polished aluminum five-star base with chrome center tube and five black twin-wheel nylon casters

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic lever raises and lowers the seat through a 100 mm stroke between 440 and 540 mm
Synchronous recline	Backrest and seat move in a coordinated tilt with a 22-degree maximum recline and lockable upright, mid and full-recline positions
Seat-depth adjustment	Sliding seat pan provides 50 mm of fore-aft adjustment to maintain 50 to 100 mm behind-knee clearance
Footrest operation	Mesh-padded leg rest pivots out and extends 430 mm from the seat front, then retracts flush beneath the cushion

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary workplace use	Private offices, open workstations and home-office rooms for users requiring lumbar support, recline and leg rest during long computer tasks
Recommended procurement configuration	Pair with a 720 to 760 mm deep task desk and a 700 mm circulation zone to permit full recline and footrest extension

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office chair safety and dimensions	EN 1335
Office chair structural durability	EN 1335
Office chair dimensional fit	EN 1335

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Office chair safety and durability	ANSI/BIFMA X5.1
Base vertical load	ANSI/BIFMA X5.1 Clause 8
Caster durability	ANSI/BIFMA X5.1 Clause 11

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Safety and mechanical durability	GB/T 10357.3
Upholstery fabric safety	GB 18401
Formaldehyde emission	GB 18580

Standardized tender description text

This product must meet the following technical requirements:
1. Safety and mechanical durability: GB/T 10357.3;
2. Upholstery fabric safety: GB 18401;
3. Formaldehyde emission: GB 18580;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EOH-MESH-FOOTREST-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EOH-MESH-FOOTREST-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EOH-MESH-FOOTREST-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

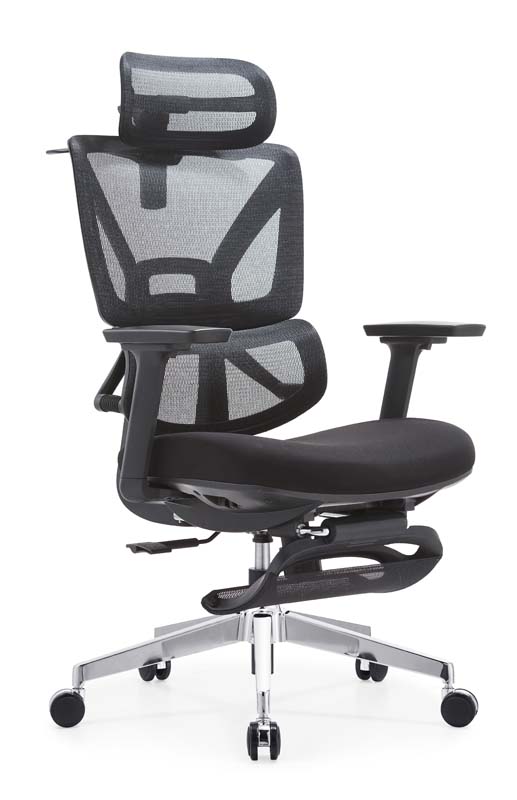

The Ergonomic High-Back Mesh Office Chair with Headrest, Sliding Seat and Retractable Footrest is an unbranded ergonomic task chair designed for long computer sessions that call for back support, controlled recline, and optional leg support. Its tall black form combines a flexible mesh backrest, contoured seat, adjustable headrest, and integrated leg rest in a professional silhouette suited to private offices, open workstations, and dedicated home-office rooms. Visually, the chair is structured around a high black mesh back set within a black polymer outer frame. An internal Y-shaped spine support reinforces the backrest, while a defined lumbar support zone helps target the lower back. The curved headrest uses a breathable black mesh insert in a padded polymer frame and is mounted on a height-adjustable bracket. Black rigid polymer arm posts and soft-touch flat arm pads connect to the seat support frame, balancing a streamlined office appearance with durable support components. The seat uses a molded foam pad wrapped in black woven fabric and carried by a contoured polymer shell. Its 90 mm finished cushion and 45 kg/m3 foam density provide a supportive sitting surface, while the 540 mm clear width between armrests accommodates a broad range of users. Under the seat, a black steel tilt mechanism includes a tension knob, lift lever, and chrome-plated center column. The chair rests on a polished aluminum five-star base with a chrome center tube and five black twin-wheel nylon casters. Functional adjustment is a central feature. Pneumatic seat height control operates through a 100 mm stroke, and the sliding seat pan offers 50 mm of fore-aft adjustment to support proper behind-knee clearance. The synchronous recline coordinates movement between the backrest and seat, with a 22-degree maximum recline and lockable upright, mid, and full-recline positions. When needed, the mesh-padded footrest pivots out and extends 430 mm from the seat front; it retracts flush beneath the cushion when not in use. The chair is specified for users from 160 to 190 cm in height and up to 150 kg in weight. Its 22 kg net weight and Class 4 gas lift support regular commercial use. Procurement teams should plan for two cartons per set, a packaged gross weight of 23 kg, and an assembly time of 40 minutes per chair. For effective layout, pair the chair with a task desk 760 mm deep and maintain a 700 mm circulation zone to allow full recline and footrest extension without obstruction.

Ergonomic High-Back Mesh Office Chair with Headrest, Sliding Seat and Retractable Footrest Specifications
