PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	640 × 620 × 1050 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Chair net weight	13.5 kg
Recommended user weight capacity	120 kg
Seat foam density	45 kg/m3
Seat foam indentation support rating	65 N
Back mesh static load target	150 kg
Gas lift cycle target	100000 height-adjustment cycles
Tilt mechanism static load target	150 kg
Caster rolling durability target	100000 cycles
Warranty period	36 months
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support panel	Dark gray flexible mesh tensioned in a black molded polymer frame
Seat upholstery	Black woven polyester fabric over molded foam
Seat cushion core	70 mm molded polyurethane foam with hidden supporting shell
Armrest assembly	Black fixed molded polymer pad and vertical support connected to the seat frame
Center support	Chrome-plated telescopic steel gas lift with black telescopic shroud
Base and casters	Black molded nylon five-star base with five twin-wheel polymer casters

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift operates through the right-side paddle over a 100 mm travel range
Recline and tension control	Center-tilt mechanism allows a 15-degree back recline with a rotary tension knob under the seat
Swivel movement	360-degree swivel around the gas-lift center column for multi-directional desk access
Mobility	Five twin-wheel casters provide rolling movement on hard floors or low-pile carpet

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office workstation	Suited to daily computer and desk work because it combines swivel access, lumbar-height mesh support and rolling mobility
Home office or meeting room	Neutral black fixed-arm design fits compact desks, shared workpoints and temporary meeting positions

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1	Suggested dimensional safety standard for office work chairs
EN 1335-2	Applicable standards and test results require confirmation
EN 1335-3	Suggested test methods for office work chair safety and durability
EN 1022	Suggested seating stability test standard for domestic and commercial chairs

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1	Suggested North American office chair standard for strength, durability, stability and dimensional checks

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357.2	Suggested test standard for office-chair mechanical stability on level floors
GB/T 10357.3	Suggested strength and durability standard for chair back, seat and arm loading

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357.2: Suggested test standard for office-chair mechanical stability on level floors;
2. GB/T 10357.3: Suggested strength and durability standard for chair back, seat and arm loading;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · TSK-MB-FA5-BLK

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · TSK-MB-FA5-BLK

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · TSK-MB-FA5-BLKOpen Export Tool

Quick Actions

Post an RFQ

Product Description

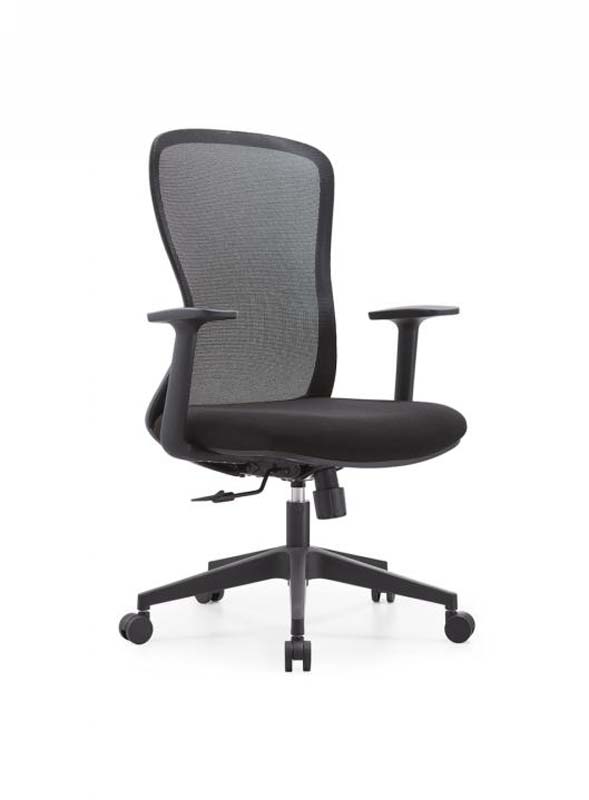

The Black Mesh Swivel Task Chair with Fixed Arms is an unbranded office chair designed for practical daily seating in commercial and residential work settings. Its model reference is TSK-MB-FA5-BLK, and its neutral black appearance makes it suitable for coordinated open-plan offices, home offices, meeting rooms, and shared workpoints. Visually, the chair combines a dark gray flexible mesh back panel with a black molded polymer frame, a black fabric-upholstered seat, fixed polymer armrests, and a black five-star caster base. The center support uses a chrome-plated telescopic steel gas lift with a black telescopic shroud, providing a subtle metallic accent within the otherwise dark finish. The fixed arms connect to the seat frame and create a straightforward, structured silhouette suited to compact desks and standard task layouts. The clear width between armrests is 540 mm, while the overall dimensions are 640 mm wide, 620 mm deep, and 1050 mm high. Construction is focused on familiar office-chair durability and support. The backrest uses flexible mesh tensioned within the molded frame, with a lumbar support zone height of 240 mm. The seat features black woven polyester fabric over molded foam. Its cushion core consists of 70 mm molded polyurethane foam with a hidden supporting shell, and the finished seat cushion thickness is 90 mm. The seat foam specification includes a density of 45 kg/m3 and an indentation support rating of 65 N. The armrest pads and vertical supports are fixed molded polymer components. A steel gas lift, molded nylon five-star base, and five twin-wheel polymer casters complete the main structure. The chair has a net weight of 13.5 kg and a recommended user weight capacity of 120 kg. Functional controls support typical desk and computer work. A right-side paddle operates pneumatic seat-height adjustment across 100 mm of travel. The center-tilt mechanism allows 15 degrees of back recline, with a rotary tension knob beneath the seat for adjusting recline resistance. The seat and upper assembly swivel 360 degrees around the gas-lift column, helping users reach different areas of a workstation without moving the entire chair. The twin-wheel casters provide rolling movement on hard floors and low-pile carpet.

Black Mesh Swivel Task Chair with Fixed Arms Specifications
