PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	650 × 640 × 1080 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	16.5 kg
Recommended user weight capacity	120 kg
Seat foam density	45 kg/m3
Seat foam rebound	42%
Back mesh tensile rating	350 N/50 mm
Fabric abrasion resistance	50,000 Martindale cycles
Seat static load verification	110 kg
Base static load verification	1136 kg
Caster rolling durability	100,000 cycles
Gas-lift cycles	100,000 height-adjustment cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support	Light gray breathable woven mesh tensioned over a molded gray polymer frame
Seat cushion	Orange woven fabric over 70 mm molded polyurethane foam with a concealed hard seat board
Seat support shell	Gray molded polymer seat pan connected to a black steel tilt mechanism
Armrests	Gray fixed polymer pads on gray-painted steel or reinforced polymer support posts
Mechanism	Black powder-coated steel synchro-tilt mechanism with side tension and lock controls
Gas lift and base	50 mm black gas column with polished or silver-painted die-cast aluminum five-star base

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height adjustment from 440 to 540 mm through a 100 mm gas-lift stroke
Swivel	360-degree swivel around the gas column for seated turning and workstation access
Recline movement	Synchro-style back recline with seat linkage, 3-position lock and rear tension knob; maximum back tilt 18 degrees
Mobility	Five independently pivoting twin-wheel casters provide rolling movement on level hard floors or low-pile carpet

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Workstation seating	Suitable for open-plan desks, private offices and home offices requiring 540 mm seat height and rolling swivel access
Project procurement fit	Recommended for fleets using orange seat accent color with light gray frames, requiring fixed arms and breathable mesh backs

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ETC-MESH-OR-550

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ETC-MESH-OR-550

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ETC-MESH-OR-550Open Export Tool

Quick Actions

Post an RFQ

Product Description

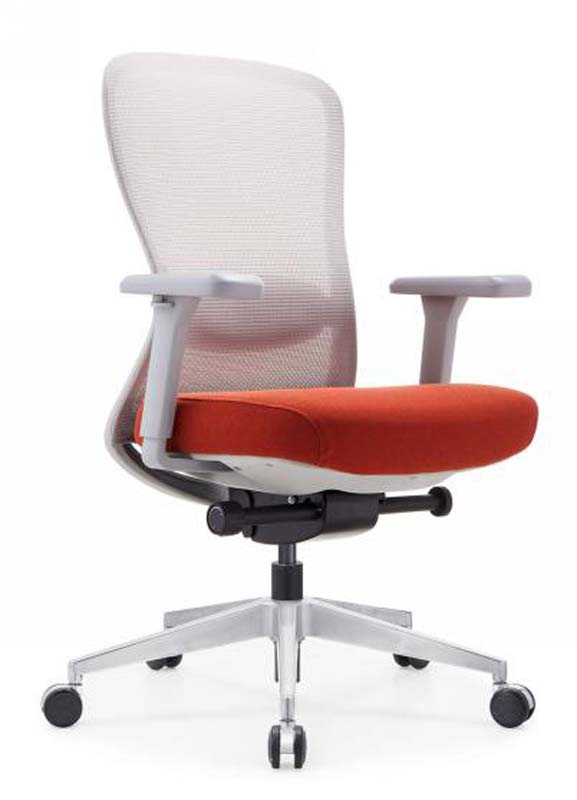

The Mesh Back Swivel Task Chair with Orange Upholstered Seat, model ETC-MESH-OR-550, is an unbranded ergonomic office chair designed for active workstation use. Its appearance balances a light gray breathable woven mesh back with a distinct orange woven-fabric seat, while gray molded polymer framing and painted or powder-coated steel components give the chair a structured commercial look. Overall dimensions are 650 x 640 x 1080 mm, with a five-star base, twin-wheel casters, fixed armrests, and a central gas column supporting the familiar task-chair silhouette. The clear width between armrests is 540 mm, providing defined space within the fixed-arm layout. Construction combines a molded gray polymer back frame with tensioned mesh, a gray molded polymer seat pan, and a black steel synchro-tilt mechanism. The orange seat uses woven fabric over molded polyurethane foam with a concealed hard seat board; finished cushion thickness is 90 mm, while the molded foam component is specified at 70 mm. Backrest padding thickness is 70 mm, and the lumbar support zone is 240 mm high. Seat foam density is 45 kg/m3 with 42 percent rebound, and the fabric is rated to 50,000 Martindale cycles. Back mesh tensile rating is 350 N/50 mm. Supporting elements include gray fixed polymer arm pads on gray-painted steel or reinforced polymer posts, a 50 mm black gas lift, and a polished or silver-painted die-cast aluminum five-star base. The chair weighs 16.5 kg and carries a recommended user weight capacity of 120 kg; seat static load verification is listed at 110 kg. Functionally, the chair offers pneumatic seat-height adjustment from 440 to 540 mm through a 100 mm gas-lift stroke, 360-degree swivel, and synchro-style recline where the back and seat move in linkage. It includes a three-position lock, side tension control, and rear tension knob, with a maximum back tilt of 18 degrees. Five independently pivoting twin-wheel casters support rolling on level hard floors or low-pile carpet, making the chair suited to open-plan desks, private offices, and home offices that need swivel access and adjustable seat height. It is also a practical option for projects seeking an orange accent seat with light gray frames, fixed arms, and breathable mesh backs across a seating fleet. Buyers should note delivery is one set across two cartons, packaged gross weight is 23 kg, carton volume is 0.26 m3 per set, and reference assembly time is 40 minutes. A 20GP container plan can account for 135 sets at 85 percent space utilization.

Mesh Back Swivel Task Chair with Orange Upholstered Seat Specifications
