PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 1180 × 1290 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Net weight	22.5 kg
Seat foam density	45 kg/m3
Back mesh static tension reference	120 kg
Gas-lift grade	Class 4
Tilt mechanism rating	150 kg
Caster rolling durability target	100000 cycles
Seat sliding travel	50 mm
Warranty target	5 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Black flexible mesh stretched over a black polymer outer frame; visual material inference requiring BOM confirmation.
Headrest construction	Breathable black mesh panel with molded polymer frame and height-adjustable central support.
Seat surface	Black woven mesh or mesh-textured fabric over molded foam and a black polymer seat shell; supplier BOM confirmation required.
Internal seat board	12 mm molded plywood or reinforced polymer seat carrier recommended for commercial use.
Arm components	Black molded polymer arm posts and padded arm caps with internal steel reinforcement; exact adjustment internals require BOM confirmation.
Base and support	Polished die-cast aluminum five-star base with chrome-finished steel gas-lift tube and black polymer telescoping shroud.

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Synchronous recline	Backrest reclines to 135 degrees with coordinated seat-pan movement and multi-position tension control.
Seat height adjustment	Class 4 gas lift provides 80 mm vertical travel through the under-seat height lever.
Seat-depth adjustment	Under-seat slide provides 50 mm seat-depth travel to fit different thigh lengths.
Headrest adjustment	Curved mesh headrest moves through 80 mm height travel and supports 25 degrees angle adjustment.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation use	Suitable for managers, engineers and knowledge workers requiring recline, lumbar support and 6 to 10 hour seating.
Commercial project installation	Recommended for executive offices, ergonomic workstations and high-attention task areas where adjustable support is required.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EMH-MESH-FT-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EMH-MESH-FT-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EMH-MESH-FT-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

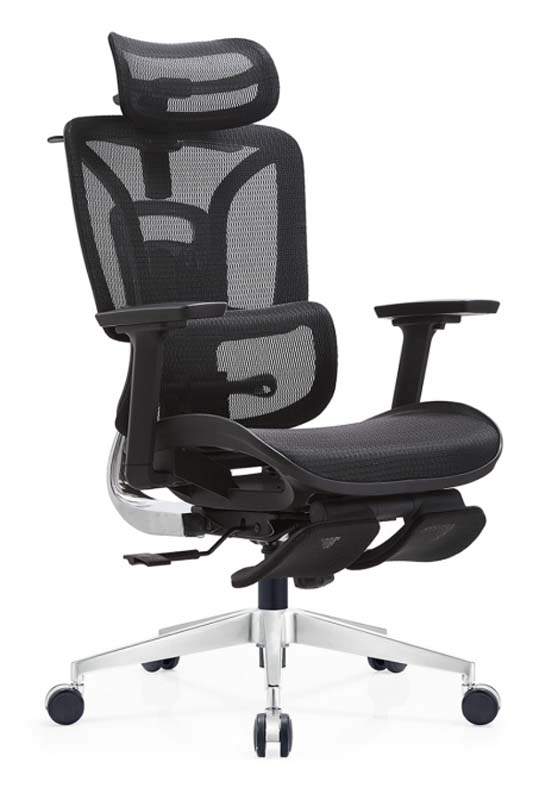

The Black Mesh Ergonomic Office Chair with Headrest and Sliding Footrest is a high-back task chair designed for users seeking structured support, recline capability, and a breathable appearance in a modern office setting. Its black finish gives it a restrained, professional look, while the mesh back and headrest create a light visual profile suited to both private offices and open workstation layouts. The chair follows a conventional ergonomic layout, with a tall backrest, contoured headrest, padded armrests, central gas-lift support, five-star base, and retractable footrest for use during reclined resting positions. The backrest uses black flexible mesh stretched over a black polymer outer frame. The headrest combines a breathable black mesh panel with a molded polymer frame and height-adjustable central support. The seat uses a black woven mesh or mesh-textured surface over molded foam and a black polymer seat shell, with a molded plywood or reinforced polymer internal carrier recommended for commercial applications. Arm posts and mechanism covers are finished in black molded polymer, while the arm caps are padded and internally reinforced with steel. The polished die-cast aluminum five-star base provides a refined contrast to the black upper structure, and the support column uses a chrome-finished steel gas lift with a black polymer telescoping shroud. Twin-wheel PU casters complete the mobile base. Functionality is centered on extended adjustability. The synchronous recline mechanism allows the backrest to recline to 135 degrees while coordinating movement with the seat pan, and it includes multi-position tension control. Seat height is adjusted through an under-seat lever using a Class 4 gas lift with 80 mm of vertical travel. A separate under-seat slide provides 50 mm of seat-depth adjustment, helping users match the seat front to different thigh lengths. The curved mesh headrest offers 80 mm of height travel and 25 degrees of angle adjustment. The clear width between armrests is 540 mm, and the chair has a recommended user weight capacity of 150 kg. This model is appropriate for executive offices, manager workstations, engineering desks, ergonomic task environments, and other high-attention commercial spaces where users may sit for six to ten hours. It can also suit a refined home office when a full-feature task chair is preferred. Overall dimensions are 680 by 1180 by 1290 mm, net weight is 22.5 kg, and the finished seat cushion and backrest padding thicknesses are 90 mm and 70 mm respectively. Procurement teams should note that the product is unbranded, supplied as model EMH-MESH-FT-01, and packed as one set in two cartons. Reference assembly time is 40 minutes per set, packaged gross weight is 23 kg, and total carton volume is 0.26 cubic metres. Buyers should confirm exact seat-surface material, internal seat board, and arm-adjustment components in the final bill of materials, as some construction details require supplier confirmation before project specification or bulk ordering.

Black Mesh Ergonomic Office Chair with Headrest and Sliding Footrest Specifications
