PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	660 × 660 × 1290 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	135 kg
Net weight	18.5 kg
Seat foam thickness	60 mm
Seat foam density	45 kg/m3
Back mesh tensile acceptance target	180 N/50 mm
Fabric abrasion acceptance target	50,000 Martindale cycles
Gas-lift class target	Class 3
Caster rolling durability target	100,000 cycles
Back frame static load acceptance target	136 kg
Warranty target	36 months

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support	Light gray molded outer frame with elastic mesh insert
Seat cushion	Molded foam core with orange woven textile upholstery
Headrest	Curved mesh-faced support mounted on a rigid polymer bracket
Lumbar support	Rigid light gray curved lumbar pad attached through the back frame
Armrests	Rigid light gray T-shaped supports with rectangular polymer contact pads
Base and lifting parts	Five-star metallic base, black central mechanism, steel gas-lift column and twin-wheel casters

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic lift lever adjusts seat height from 450 to 540 mm with 90 mm travel
Back recline	Synchronized tilt mechanism reclines to 122 degrees and locks in 3 positions
Lumbar support	Curved rear pad provides height-adjustable lower-back support over 60 mm travel
Head support	Height-adjustable curved headrest travels 80 mm and pivots 25 degrees for neck support

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Gross weight	20.5 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open office and workstation use	Suited to daily computer work where mesh back ventilation, head support and mobility are needed
Executive or home-office desk setup	Orange seat provides accent color while the gray frame coordinates with neutral desks and storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EO-HB-MESH-OR-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EO-HB-MESH-OR-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EO-HB-MESH-OR-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

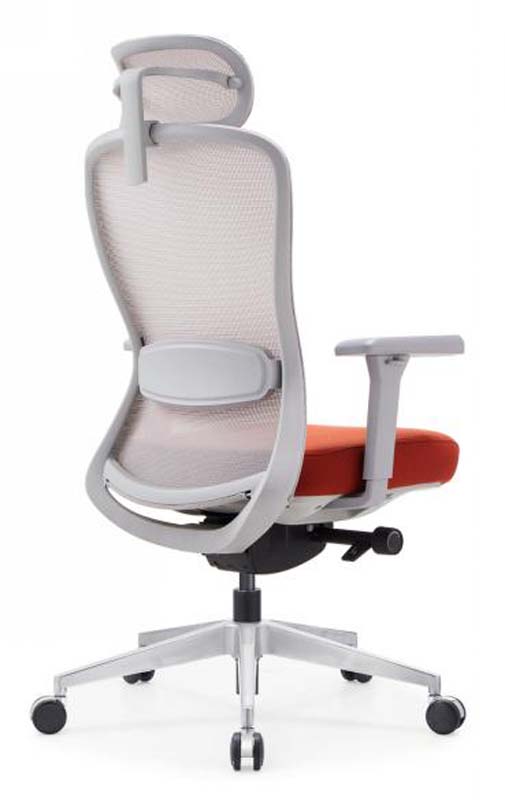

The High-Back Mesh Ergonomic Office Chair with Headrest and Orange Seat is a contemporary task chair designed for users seeking structured support, breathable back support, and a distinctive seat finish. Model EO-HB-MESH-OR-01 is unbranded and presented as a complete chair set suited to both commercial workspaces and private office settings. Visually, the chair combines a light gray molded outer back frame with an elastic mesh insert, creating an open and streamlined profile. The orange woven fabric seat adds a focused accent color, while the gray frame and metallic support structure coordinate readily with neutral desks, storage, and modern interior finishes. At the top, a curved mesh-faced headrest is mounted on a rigid polymer bracket, continuing the layered, ergonomic appearance. The five-star metallic base, black central mechanism, steel gas-lift column, and twin-wheel polyurethane casters give the chair a familiar professional task-chair layout. T-shaped light gray armrest supports use rectangular polymer contact pads, and a curved light gray lumbar pad is positioned through the back frame. Construction balances soft support with rigid load-bearing components. The seat uses a molded foam core upholstered in orange woven textile, with a finished cushion thickness of 90 mm and a 60 mm foam core rated at 45 kg/m3 density. The backrest includes 70 mm of padding thickness alongside the mesh support area, while the lumbar support zone is 240 mm high. Painted steel and aluminum form the support structure, with nylon used in the armrest construction. The specified weight capacity is 135 kg, and the chair has a net weight of 18.5 kg. Adjustability is centered on extended seated comfort. A pneumatic lift lever controls seat height from 450 to 540 mm, providing 90 mm of travel. The synchronized tilt mechanism allows the back to recline to 122 degrees and lock in three positions. The lumbar pad is height adjustable over 60 mm of travel, and the headrest adjusts through 80 mm of height movement and pivots 25 degrees. These features make the chair appropriate for open offices, workstation rows, executive desks, and home-office spaces where daily computer work is combined with a need for ventilation, neck support, lower-back support, and mobility. Procurement teams should note the clear width between armrests is 540 mm and the overall footprint is 660 x 660 x 1290 mm. Delivery is organized as one set across two cartons, with packaged gross weight listed at 23 kg per set and reference carton volume of 0.26 m3 per set. The reference assembly time is 40 minutes per set, so installation planning should allow for unboxing, fitting components, and final adjustment. Material acceptance targets include 50,000 Martindale abrasion cycles for the fabric, 180 N/50 mm tensile acceptance for the back mesh, and a Class 3 gas-lift target. Buyers should also review seating requirements, floor surface compatibility, and the visual contrast of the orange seat before placing larger orders.
