PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 1180 × 1320 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Net weight	23 kg
Seat foam density	45 kg/m3
Back mesh tensile rating	900 N per 50 mm strip
Seat static-load validation target	1136 kg
Gas-lift durability target	100000 height-adjustment cycles
Caster rolling durability target	100000 cycles
Backrest tilt range	112 to 135 degrees
Recommended user body height	165 to 190 cm
Warranty period	5 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery	Black breathable woven mesh over a contoured polymer seat carrier with padded front edge
Backrest upholstery	Black tensioned mesh retained by a flexible framed back structure
Cushion structure	Molded high-resilience polyurethane foam under mesh with 60 mm seat thickness
Headrest	Breathable black mesh insert in a curved polymer frame with padded perimeter
Armrests	Black polyurethane pads on polished aluminum and polymer height-adjustment supports
Frame and base	Polished aluminum alloy five-star base and side support castings with black steel mechanism parts

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Synchronized recline	Backrest reclines to 135 degrees with linked seat tilt and multi-position lock for work or rest positions
Seat-height adjustment	Pneumatic lever adjusts the seat between 460 and 520 mm, with 520 mm used for screening
Multi-direction armrests	Pads support height setting and 30 mm lateral movement to align with keyboard work
Retractable footrest	Under-seat mesh foot panel slides forward 260 mm and rotates upward for reclined leg support

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive and managerial workstations	High-back support, armrest adjustment, and recline suit 6 to 10 hour desk work
Private office or home office	Black mesh and polished aluminum base fit professional spaces where comfort and mobility are required

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EMH-MESH-FT-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EMH-MESH-FT-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EMH-MESH-FT-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

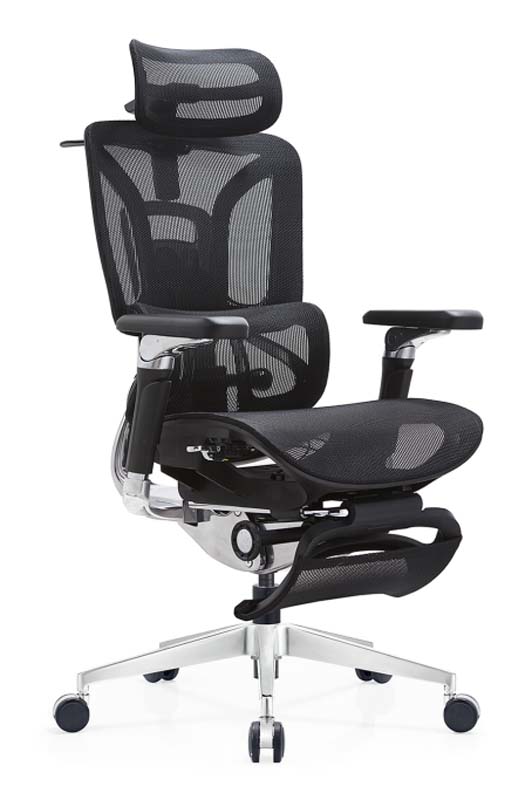

The Black Mesh Ergonomic Executive Office Chair with Headrest and Footrest, model EMH-MESH-FT-01, is an unbranded high-back task chair designed for extended desk work and periodic reclined rest. Its visual character combines black breathable woven mesh with polished aluminum alloy structural elements, giving it a tailored executive appearance that suits both professional and residential work environments. The tall mesh back, contoured seat, integrated headrest, padded armrests, and five-star base create a structured silhouette, while the under-seat footrest remains visually discreet until deployed. Overall dimensions are 680 by 1180 by 1320 millimeters, with 540 millimeters of clear width between the armrests. Construction centers on a tensioned mesh back held within a flexible framed structure and a black mesh seat over a contoured polymer carrier. Beneath the seat mesh is molded high-resilience polyurethane foam with a padded front edge; the finished cushion thickness is 90 millimeters, while the backrest padding thickness is 70 millimeters. The headrest uses a breathable black mesh insert in a curved polymer frame with a padded perimeter. Arm pads are black polyurethane, mounted on polished aluminum and polymer height-adjustment supports. The polished aluminum alloy five-star base and side support castings are paired with black steel mechanism parts, a steel gas lift, and nylon twin-wheel casters. Functionally, the chair provides synchronized recline up to 135 degrees with linked seat tilt and multi-position locking, allowing users to move between upright work and supported rest positions. Pneumatic seat-height adjustment operates through a lever, with a seat-height range reaching 520 millimeters. The armrest pads offer height setting and 30 millimeters of lateral movement to support keyboard alignment. For reclined use, the retractable under-seat mesh foot panel slides forward 260 millimeters and rotates upward to support the legs. A 240-millimeter lumbar support zone contributes to the chair’s ergonomic focus. The model is appropriate for executive and managerial workstations, private offices, and home offices where long-duration seating, mobility, and a polished appearance are priorities. Its black mesh and aluminum finish work well in contemporary professional interiors. The stated recommended user weight capacity is 150 kilograms, and the chair has a net weight of 23 kilograms. Procurement teams should plan for two cartons per set, about 40 minutes of assembly time, and packaged gross weight of 23 kilograms per set. The reference carton volume is 0.26 cubic meters per set, with an indicative 20GP loading figure of 135 sets at 85 percent space utilization. Buyers should also verify delivery access, assembly responsibilities, and whether the adjustable headrest, recline, armrest movement, and footrest match the intended user’s work patterns.

Black Mesh Ergonomic Executive Office Chair with Headrest and Footrest Specifications
