PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 680 × 1280 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Net weight	18 kg
Seat foam density	45 kg/m3
Back foam or mesh support rating	35 kg/m3 equivalent
Foam rebound resilience	40%
Gas-lift class	Class 4
Gas-lift stroke	100 mm
Tilt angle	18 degrees
Mechanism static load target	450 kg
Caster rolling durability target	100000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support fabric	Gray flexible mesh stretched over a molded external frame
Seat cushion	Upholstered contoured cushion with 80 mm foam core and rounded waterfall front
Headrest	Curved padded headrest covered in gray mesh or matching textile
Armrest assembly	Light gray molded support arms with dark gray flat elbow pads
Seat mechanism and levers	Black painted steel tilt mechanism with visible side paddle and chrome tension rod
Base and casters	Light gray molded five-star base with five black twin-wheel casters

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift with 100 mm stroke operated by the visible under-seat paddle
Recline and lock control	Synchronized tilt mechanism with up to 18 degrees back recline and lockable working positions
Head support	Curved padded headrest positioned above the high back for neck support
Mobility and rotation	360-degree swivel seat on five 60 mm twin-wheel casters for carpet or hard-floor movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary workplace use	Suitable for executive desks, open-plan workstations and home offices requiring 460 mm seat height and reclining back support.
User and flooring profile	Suited to users up to 150 kg on hard floors or low-pile carpet where twin-wheel casters and a 680 mm base are required.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1 applicability	Use for office-chair dimensions, including seat height, depth, back support and clearance verification.
EN 1335-2 applicability	Use as the safety performance and structural acceptance reference for the chair frame, gas lift and base.
EN 1335-3 applicability	Use as the durability test reference for repeated seat, back and arm loading before bulk acceptance.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1 applicability	Use for office-chair back, seat, arm, base, caster and stability verification; no certification is claimed.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357.3 applicability	Use for chair strength and durability testing of seat, back, armrests and stability during procurement inspection.
GB/T 27723 applicability	Use for general office-chair safety, dimensional and performance requirements in Chinese market supply.

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357.3 applicability: Use for chair strength and durability testing of seat, back, armrests and stability during procurement inspection.;
2. GB/T 27723 applicability: Use for general office-chair safety, dimensional and performance requirements in Chinese market supply.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERG-MESH-HR-GRY-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERG-MESH-HR-GRY-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERG-MESH-HR-GRY-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

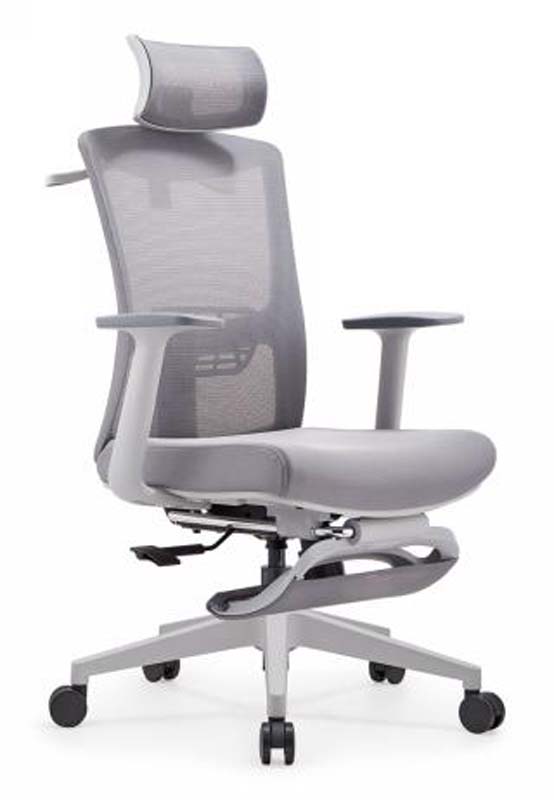

The Gray Mesh Ergonomic Executive Task Chair with Headrest, model ERG-MESH-HR-GRY-01, presents a professional high-back silhouette in coordinated gray tones. Its breathable mesh back is stretched over a light gray molded external frame, paired with a contoured upholstered seat, curved padded headrest, and molded armrests with dark gray flat elbow pads. The light gray five-star base, black twin-wheel casters, black metal gas lift, and black tilt mechanism create a balanced visual contrast suitable for contemporary office settings. Overall dimensions are 680 by 680 by 1280 mm, with a 540 mm clear width between armrests. The finished seat cushion is 90 mm thick, the backrest padding is 70 mm thick, and the lumbar support zone is 240 mm high. Construction focuses on layered support and controlled movement. The seat uses an upholstered contoured cushion with an 80 mm foam core and rounded waterfall front, specified with 45 kg/m3 seat foam density and 40 percent rebound resilience. The back support uses flexible gray mesh rated at 35 kg/m3 equivalent support. A Class 4 gas lift provides a 100 mm stroke, while the black painted steel tilt mechanism includes a visible side paddle and chrome tension rod. The chair has a recommended user weight capacity of 150 kg and a net weight of 18 kg. Practical adjustment is integrated into daily use. The visible under-seat paddle operates pneumatic seat-height adjustment, and the synchronized tilt mechanism allows up to 18 degrees of back recline with lockable working positions. The curved headrest sits above the high back to support the neck, and the 360-degree swivel seat moves on five 60 mm twin-wheel casters made for carpet or hard-floor use. These features support task work, computer-based roles, and seated meetings that require periodic posture change. The chair is appropriate for executive desks, open-plan workstations, and home offices requiring a 460 mm seat height and reclining back support. It is suited to users up to 150 kg and to hard floors or low-pile carpet where a 680 mm base and twin-wheel casters are required. Procurement planning should account for one unbranded chair supplied as one set across two cartons, with packaged gross weight of 23 kg per set and reference carton dimensions of 850 by 420 by 720 mm. Carton volume is 0.26 cubic meters per set, reference assembly time is 40 minutes per set, and the indicative 20GP loading is 135 sets at 85 percent space utilization.
