PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	660 × 680 × 1240 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	136 kg
Chair net weight	18.5 kg
Static seat verification load for procurement	680 kg reference
Caster rolling durability target	100000 cycles
Gas-lift cyclic durability target	100000 height-adjustment cycles
Seat-front edge foam indentation load deflection	45 kg/m3 density, 45 percent rebound reference
Back mesh tensile durability target	30000 back-cycles
Recommended user height range	1600 to 1900 mm
Warranty period	3 years
Available color count	1 standard black color

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support fabric	Black flexible woven mesh over a contoured polymer back frame
Seat cushion	Molded polyurethane foam, 70 mm thick at center, under black woven upholstery
Seat support shell	8 mm molded polypropylene load-bearing shell under cushion
Armrests	Fixed black polymer T-arms with padded tops and molded side support brackets
Back frame and mechanism housing	Black glass-fiber-reinforced nylon or injection-molded polymer components
Five-star base	Polished die-cast aluminum or chrome-plated steel radial base, 3 mm wall section

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift with 80 mm travel, operated by the visible underside lever; target Class 4 cylinder.
Recline and lock	Synchronized seat-and-back tilt to 120 degrees with multi-position lock and side tension knob based on visible mechanism.
Swivel mobility	360-degree swivel around the chrome center column with five dual-wheel casters for carpet or hard-floor movement.
Head and arm support	Padded fixed headrest supports the neck, while fixed T-armrests provide forearm support but no width, height or pivot adjustment.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	720 x 640 x 340 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary office application	Open-plan workstations, executive desks and home offices where users need neck, lumbar and forearm support during 6 to 8 hour seated work.
Procurement configuration	Suitable for single-unit executive use or bulk worker seating; specify floor-protection soft casters when used primarily on hard floors.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture safety	EN 1335:2020 defines office chair dimensional safety requirements and is appropriate for European procurement review.
Office chair mechanical testing	EN 1335:2018 covers safety, strength and durability test methods for office chairs.
Office chair structural verification	EN 1335:2020 provides test methods for structural strength, backrest, armrest, seat and caster durability.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Office chair durability and safety	ANSI/BIFMA X2017is applicable to strength, durability, stability, backrest, armrest, caster and base verification.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Formaldehyde and textile verification	GB 18401Category B textile safety and GB 18580formaldehyde emission limits are suggested tender checks for upholstered components.
Furniture labeling	GB/T 5296.6instructions for use of furniture is applicable to product labeling, materials and maintenance information.

Standardized tender description text

This product must meet the following technical requirements:
1. Formaldehyde and textile verification: GB 18401Category B textile safety and GB 18580formaldehyde emission limits are suggested tender checks for upholstered components.;
2. Furniture labeling: GB/T 5296.6instructions for use of furniture is applicable to product labeling, materials and maintenance information.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EH-HBM-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EH-HBM-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EH-HBM-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

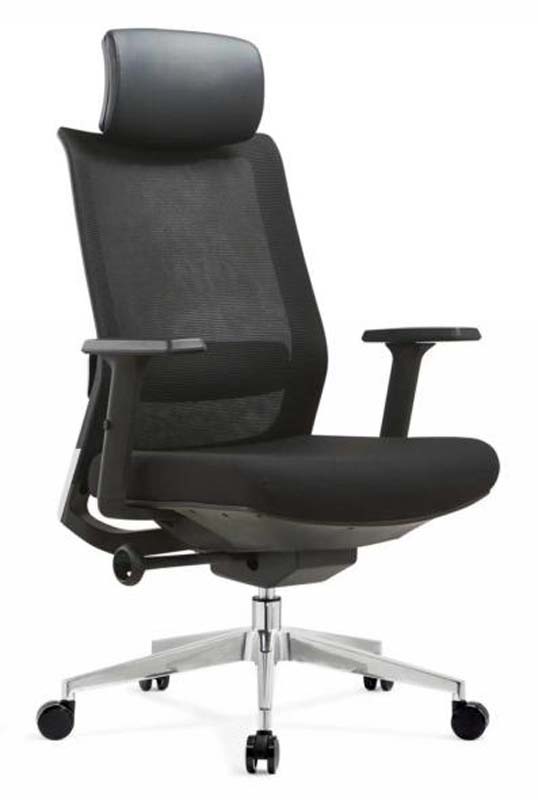

The High-Back Mesh Ergonomic Office Chair with Headrest, model EH-HBM-01, presents a professional executive-style seating solution with a structured black aesthetic suited to both commercial and residential work environments. Its tall mesh backrest is shaped over a contoured polymer frame and integrated with a padded fixed headrest, creating a continuous upright form intended to support the neck and upper body. The black color scheme is carried through the back frame, armrests, mechanism housing and upholstered seat, while the polished chrome-plated metal five-star base provides a contrasting visual anchor. Five nylon twin-wheel casters are arranged radially beneath the seat for a balanced mobile footprint. Construction combines flexible woven mesh with molded and reinforced components. The back uses black flexible woven mesh supported by a contoured polymer frame, with a defined lumbar support zone and padded backrest section. The seat features molded polyurethane foam beneath black woven upholstery, supported by a molded polypropylene load-bearing shell. Fixed polymer T-arms include padded tops and molded side support brackets. The base is a polished die-cast aluminum or chrome-plated steel radial structure, paired with a steel gas lift and center column. The chair is rated for a recommended user weight capacity of 136 kg and has a net weight of 18.5 kg. Functional features support everyday desk use. A pneumatic seat-height lift provides 80 millimeters of travel through an underside lever and uses a target Class 4 cylinder. The synchronized seat-and-back tilt reclines to 120 degrees, offers multi-position locking, and includes a side tension knob. A 360-degree swivel and five dual-wheel casters allow movement across carpet or hard-floor surfaces. The fixed headrest and T-armrests provide neck and forearm support, though the armrests do not adjust in width, height or pivot. This model is appropriate for open-plan workstations, executive desks and home offices, especially for users seeking neck, lumbar and forearm support during long periods of seated work. It can be procured as a single executive chair or in volume for worker seating. Buyers specifying hard-floor installations should request floor-protection soft casters. Delivery is configured as one set across two cartons, with a packaged gross weight of 23 kilograms and a reference assembly time of 40 minutes per set.
