Name: Mesh Ergonomic Task Chair with Adjustable Arms and Chrome Base
Brand: FENGGUAN
SKU: H68WX6

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	670 × 650 × 1090 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	18 kg
Maximum user load	136 kg
Gas-lift class	Class 4
Gas-lift stroke	100 mm
Base static load reference	1134 kg
Caster rolling durability reference	100000 cycles
Seat impact durability reference	100000 cycles
Back structural durability reference	150000 cycles
Recommended daily usage	9 hours
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Grey breathable woven mesh stretched over a black polymer outer frame
Seat surface	Grey mesh-covered padded seat with contoured front edge
Seat cushion foam	70 mm molded polyurethane foam at 45 kg/m3
Seat support shell	8 mm reinforced polypropylene seat pan
Arm pads	Black soft polyurethane pads on rigid polymer cores
Arm supports	Black painted steel uprights with polymer adjustment collars

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat-height adjustment	Pneumatic lever raises and lowers the seat over a 100 mm stroke
Synchronous recline	Back reclines 25 degrees with coordinated seat tilt and lockable positions
Arm adjustment	Height-adjustable armrests use side triggers and provide 70 mm vertical travel
Swivel and mobility	360-degree swivel seat with five 60 mm twin-wheel casters

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Export carton dimensions	680 x 640 x 610 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Individual workstation seating	Suitable for open-plan desks, private offices, and home offices requiring swivel, recline, and height adjustment
Commercial project fit-out	Suitable for fleets where grey mesh, black components, and chrome bases coordinate with neutral workstations

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ETC-MESH-CHROME-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ETC-MESH-CHROME-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ETC-MESH-CHROME-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

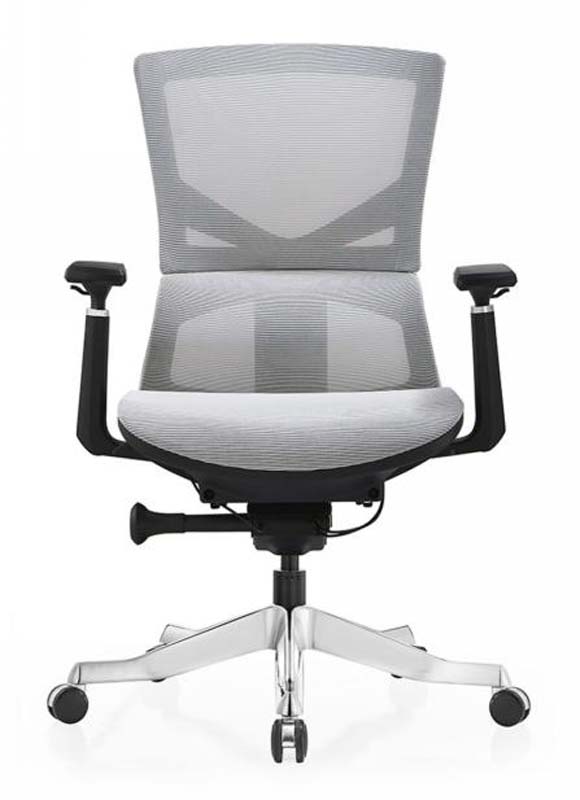

The FENGGUAN Mesh Ergonomic Task Chair with Adjustable Arms and Chrome Base, model ETC-MESH-CHROME-01, is a mid-back swivel task chair designed for individual and commercial workstation use. Its grey breathable woven mesh backrest is stretched over a black polymer outer frame, creating a light, open visual profile that pairs with black arm components and a polished chrome five-star base. The coordinated grey and black finish supports neutral office interiors while maintaining a professional, functional appearance. The chair is built around a contoured, mesh-covered padded seat with a finished cushion thickness of 90 mm. Its cushion uses 70 mm molded polyurethane foam at 45 kg/m3, set on an 8 mm reinforced polypropylene seat pan. Backrest padding is 70 mm thick, and the lumbar support zone is 240 mm high, providing a defined central support area without enclosing the user. The 540 mm clear width between armrests leaves open space at the seat sides. Arm pads are black soft polyurethane on rigid polymer cores, while the arm supports use black painted steel uprights with polymer adjustment collars. Pneumatic seat-height adjustment is controlled by a lever and provides 100 mm of travel through a Class 4 gas lift. The synchronous recline mechanism lets the backrest recline 25 degrees with coordinated seat movement and lockable positions. Height-adjustable armrests operate through side triggers and offer 70 mm of vertical adjustment, allowing users to align arm support with different desk heights. A 360-degree swivel seat and five 60 mm twin-wheel casters support movement across typical workstation tasks. This model is suitable for open-plan desks, private offices, and home offices where swivel, recline, and height adjustment are required. It is also appropriate for commercial fit-outs and multi-chair installations where grey mesh, black components, and chrome bases create a consistent look across neutral workstations. Procurement planning should account for an 18 kg net chair weight and a 136 kg maximum user load. Reference values include an 1134 kg base static load, 100000-cycle caster rolling durability, and 100000-cycle seat impact durability. Each set is supplied in two cartons, with a packaged gross weight of 23 kg and a total carton volume of 0.26 m3. Export carton dimensions are 680 x 640 x 610 mm, with a reference carton dimension of 850 x 420 x 720 mm also provided. Assembly time is 40 minutes per set, which should be considered when scheduling delivery and installation.
