PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 680 × 1320 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Suggested user weight capacity	150 kg
Seat static load verification target	102 kg
Backrest cyclic test target	120,000 cycles
Gas lift cycling target	100,000 cycles
Caster rolling durability target	100,000 cycles
Recommended user height range	1900 mm
Seat foam density	45 kg/m3
Foam rebound resilience	40%
Mesh abrasion acceptance target	50,000 double rubs
Net weight range	25 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Back and seat upholstery	Black woven mesh tensioned over contoured polymer frames, with visible translucent support zones
Seat cushion	Molded foam pad under mesh with a waterfall front edge
Lumbar support	Curved mesh-backed lumbar zone mounted within the high-back frame
Headrest	Curved mesh headrest with padded front border and black polymer rear housing
Armrests	Black rigid polymer arm posts and flat soft-touch pads
Base and casters	Polished die-cast aluminum five-star base with black twin-wheel swivel casters

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic cylinder raises the seat through an 80 mm stroke with an under-seat lever
Back recline	Synchro-tilt mechanism allows recline to 135 degrees with tension control and position lock
Headrest positioning	Curved headrest is intended for height and angle adjustment to support the neck
Footrest operation	Pull-out padded footrest extends beneath the seat for reclined resting and retracts flush

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation use	Suited to executive, managerial, and dedicated computer workstations requiring lumbar, head, and recline support
Manager or home-office use	Appropriate for users who alternate upright keyboard work and reclined resting positions

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERG-MESH-HB-FT-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERG-MESH-HB-FT-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERG-MESH-HB-FT-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

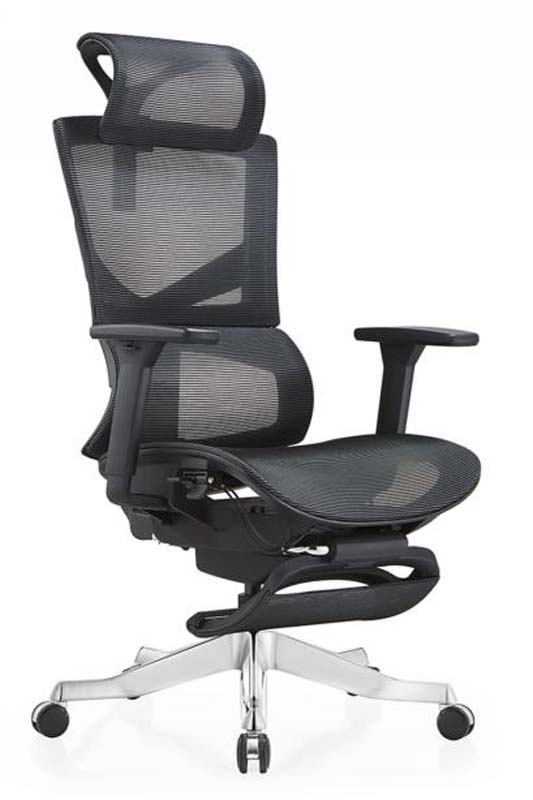

The High-Back Mesh Ergonomic Office Chair with Headrest and Retractable Footrest is a full-support seating solution for users who need both focused workstation comfort and a relaxed reclined position. Its tall profile combines a black mesh back, integrated lumbar zone, adjustable headrest, and pull-out footrest in a coordinated black and polished aluminum finish. Visually, the chair uses black woven mesh tensioned over contoured polymer frames, with visible translucent support zones that give the backrest a light, open appearance. The high-back frame encloses a curved mesh-backed lumbar area, while the curved headrest features mesh support, a padded front border, and a black polymer rear housing. Black rigid polymer arm posts, flat soft-touch pads, and mechanism covers maintain a consistent commercial look, complemented by a polished die-cast aluminum five-star base and black twin-wheel swivel casters. The seat is built around a molded foam cushion beneath mesh upholstery, with a waterfall front edge intended to support the thighs during extended sitting. The cushion thickness is 90 mm, and the seat foam density is 45 kg/m3. Backrest padding is 70 mm, the lumbar support zone is 240 mm high, and the clear width between armrests is 540 mm. Overall dimensions are 680 x 680 x 1320 mm, and the suggested user weight capacity is 150 kg. Functional adjustment is centered on an under-seat pneumatic control providing 80 mm of seat-height travel. A synchro-tilt mechanism enables back recline to 135 degrees, with tension control and position lock for personalized support. The headrest is designed for height and angle adjustment to cradle the neck, while the padded footrest pulls out from beneath the seat for reclined resting and retracts flush when not in use. Twin-wheel casters support mobility across typical office floor arrangements. This model is well suited to executive offices, managerial workstations, dedicated computer desks, and residential home offices where users alternate upright keyboard tasks with lean-back breaks. It is particularly relevant where lumbar, head, and leg support are priorities in one chair. Procurement teams should plan for assembly: each set ships in two cartons, with a packaged gross weight of 23 kg and a reference assembly time of 40 minutes. The reference carton dimensions are 850 x 420 x 720 mm, with carton volume of 0.26 m3 per set and an indicative 20GP loading figure of 135 sets at 85 percent space utilization. Buyers should also review local assembly requirements, delivery access, floor surface compatibility, and whether the black mesh and polished base aesthetic matches the intended interior scheme.
