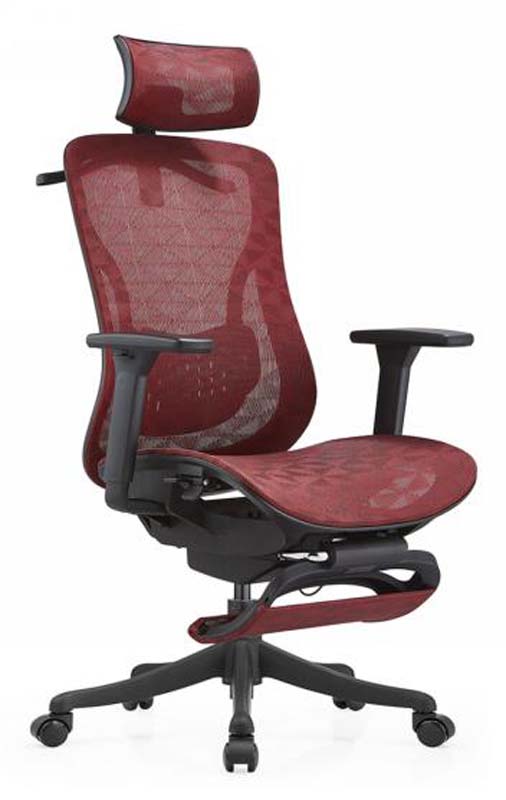

Burgundy Mesh Ergonomic Office Chair with Adjustable Headrest and Footrest (model ERC-MSH-BRG-FR01) is listed under Mesh Office Chair. Dimensions: 670 × 680 × 1290 mm. Materials: Burgundy woven engineered mesh over a curved polymer frame; breathable open construction visible, grade requires BOM confirmation.. Product Features: Burgundy,mesh,high-back,ergonomic,adjustable,headrest,retractable,footrest,five-star,caster,base. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | FENGGUAN | Model | ERC-MSH-BRG-FR01 |
| Overall dimensions (W × D × H) | 670 × 680 × 1290 mm | Finished Seat Cushion Thickness | 90 mm |
| Backrest Padding Thickness | 70 mm | Lumbar Support Zone Height | 240 mm |
| Clear Width Between Armrests | 540 mm | Recommended user weight capacity | 150 kg |
| Net weight reference | 19.5 kg | Backward recline range | 135degrees |
| Seat-height lift travel | 90 mm | Seat foam compression layer thickness | 60 mm |
| Seat foam density | 45 kg/m3 | Back mesh tensile support rating | 120 kg distributed load |
| Caster rolling durability | 100000 cycles | Gas-lift cyclic durability | 100000 height cycles |
| Warranty period | 3 years | Back and headrest upholstery | Burgundy woven engineered mesh over a curved polymer frame; breathable open construction visible, grade requires BOM confirmation. |
| Seat surface | Burgundy mesh-faced padded seat with black molded edge trim; internal cushion layers are not visible and need supplier confirmation. | Support frame | Black injection-molded polymer back carrier with integrated lateral support ribs and visible central mesh tension zones. |
| Armrests | Black rigid polymer arm pads and posts with matte finish; metal reinforcement is not externally visible. | Mechanism and lift | Black steel multi-position tilt mechanism with a 50 mm chrome/black gas lift; finish and steel grade require BOM confirmation. |
| Base and casters | Black nylon or glass-fiber-reinforced polymer five-star base with 60 mm twin-wheel swivel casters. | Back recline and lock | Synchronous tilt mechanism reclines to 135 degrees with multi-position locking lever under the right front seat. |
| Seat-height adjustment | Pneumatic lift changes seat height from 450 to 540 mm through a single under-seat lever. | Headrest adjustment | Curved headrest provides 70 mm height adjustment and pivoting neck support on a central bracket. |
| Retractable leg rest | Sliding burgundy footrest extends 280 mm from beneath the seat for reclined resting and retracts flush when not in use. | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Carton Dimensions | 850× 420× 720 mm |
| Reference Packaged Gross Weight | 23 kg/set | Reference Carton Volume | 0.26 m³/set |
| Indicative 20GP Loading | 135 sets at 85% space utilization | Office workstation use | Suitable for prolonged desk work in private offices and open-plan seats because of high-back support, headrest and lumbar contour. |
| Recharge or focus room use | Footrest and 135-degree recline support short resting breaks in quiet rooms, manager offices or home workspaces. | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 670 × 680 × 1290 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight capacity | 150 kg | |
|---|---|---|
| Net weight reference | 19.5 kg | |
| Backward recline range | 135degrees | |
| Seat-height lift travel | 90 mm | |
| Seat foam compression layer thickness | 60 mm | |
| Seat foam density | 45 kg/m3 | |
| Back mesh tensile support rating | 120 kg distributed load | |
| Caster rolling durability | 100000 cycles | |
| Gas-lift cyclic durability | 100000 height cycles | |
| Warranty period | 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Back and headrest upholstery | Burgundy woven engineered mesh over a curved polymer frame; breathable open construction visible, grade requires BOM confirmation. | |
|---|---|---|
| Seat surface | Burgundy mesh-faced padded seat with black molded edge trim; internal cushion layers are not visible and need supplier confirmation. | |
| Support frame | Black injection-molded polymer back carrier with integrated lateral support ribs and visible central mesh tension zones. | |
| Armrests | Black rigid polymer arm pads and posts with matte finish; metal reinforcement is not externally visible. | |
| Mechanism and lift | Black steel multi-position tilt mechanism with a 50 mm chrome/black gas lift; finish and steel grade require BOM confirmation. | |
| Base and casters | Black nylon or glass-fiber-reinforced polymer five-star base with 60 mm twin-wheel swivel casters. |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Back recline and lock | Synchronous tilt mechanism reclines to 135 degrees with multi-position locking lever under the right front seat. | |
|---|---|---|
| Seat-height adjustment | Pneumatic lift changes seat height from 450 to 540 mm through a single under-seat lever. | |
| Headrest adjustment | Curved headrest provides 70 mm height adjustment and pivoting neck support on a central bracket. | |
| Retractable leg rest | Sliding burgundy footrest extends 280 mm from beneath the seat for reclined resting and retracts flush when not in use. |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office workstation use | Suitable for prolonged desk work in private offices and open-plan seats because of high-back support, headrest and lumbar contour. | |
|---|---|---|
| Recharge or focus room use | Footrest and 135-degree recline support short resting breaks in quiet rooms, manager offices or home workspaces. |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.1 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
