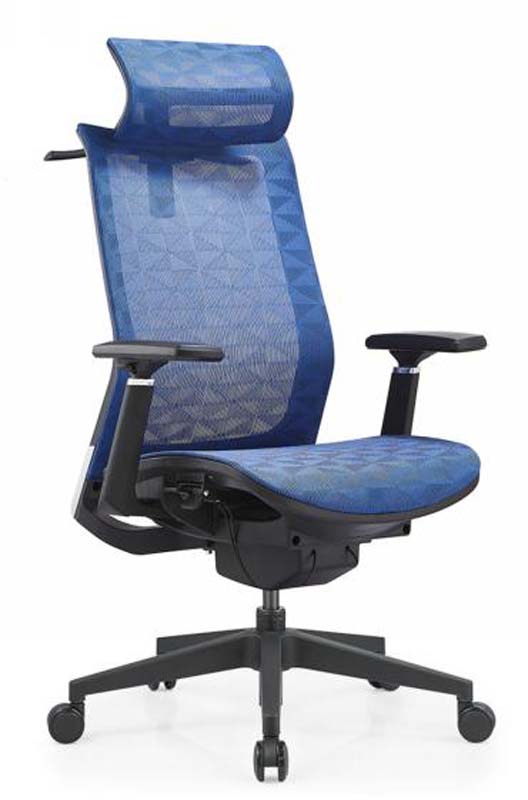

Product supplierHigh-Back Blue Mesh Ergonomic Office Chair with Headrest, Blue flexible polyester mesh over a black curved peripheral frame
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 680 × 680 × 1320 mm | |
|---|---|---|
| Overall product size | 680 x 680 x 1320 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight capacity | 150 kg | |
|---|---|---|
| Net weight | 19 kg | |
| Static seat loading acceptance target | 1020 kg | |
| Caster rolling durability target | 100000 cycles | |
| Gas lift cyclic durability target | 100000 cycles | |
| Back structure durability target | 150000 cycles | |
| Seat cushion density | 45 kg/m3 | |
| Back mesh tensile breaking strength | 250 N | |
| Seating capacity | 1 adult user | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Backrest carrying panel | Blue flexible polyester mesh over a black curved peripheral frame | |
|---|---|---|
| Seat upholstery | Blue mesh or mesh-fabric surface over molded cushion foam | |
| Cushion core | 70 mm molded polyurethane foam, 45 kg/m3 density and 40% rebound target | |
| Arm pads | Black molded polyurethane pads on height-adjustable support posts | |
| Arm support frame | Black-finish steel or reinforced nylon upright with silver trim ring | |
| Back and mechanism frame | Black glass-filled nylon housing with steel recline linkage |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seat height adjustment | Pneumatic lever raises and lowers the seat through a 90 mm stroke from 450 to 540 mm | |
|---|---|---|
| Synchronized recline | Under-seat multi-position synchro mechanism coordinates seat and back movement to a 125 degree back angle | |
| Recline lock and tension | Side lever locks the back at selected positions; rear tension knob adjusts resistance for user weight up to 150 kg | |
| Swivel and mobility | 360 degree swivel seat and five twin-wheel casters provide movement on level office floors |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton dimensions | 820 x 660 x 360 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary workplace fit-out | Open-plan workstations, private offices, and home offices requiring full-back support, swivel access, and daily seated task work | |
|---|---|---|
| Recommended user group | Adult office workers using computers for 6 hours or more per day |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.1 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
No standards data is available for this market.
Standardized tender description text
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
