PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	650 × 680 × 1290 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	136 kg
Static seat load verification target	680 kg
Net weight range	16.8 to 19.5 kg, published value 19.5 kg
Caster rolling durability	100000 cycles
Gas lift cyclic durability	100000 cycles
Seat slide endurance	20000 cycles
Backrest recline cycles	100000 cycles
Recommended user height range	1600 to 1900 mm
Warranty target	5 years structural, 2 years upholstery and mechanism
Color option count	1 visible color, black

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest	Black flexible mesh panel over a framed high-back support
Seat cushion	Molded foam cushion with black woven fabric upholstery
Seat foam	60 mm thick molded polyurethane foam, 45 kg/m3 density target
Back mesh	1.8 mm thick breathable mesh webbing with woven polyester-fiber target
Internal seat shell	8 mm thick molded polypropylene seat pan with steel reinforcing plate
Back frame	Black molded polypropylene outer frame with 2.0 mm wall target

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift through a 90 mm stroke using the right-side under-seat lever
Recline function	Synchro-tilt backrest recline through a 15-degree angle, 90 to 105 degrees from vertical
Tension control	Rotary rear-knob tension adjustment supporting 4 user-weight settings
Headrest adjustment	Height-adjustable headrest with 80 mm vertical travel and 15-degree angle pivot

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Gross weight	21.5 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary workplace	Open-plan offices, workstation clusters and home offices where all-day seated tasks require breathable back support
Recommended user profile	Users from 1600 to 1900 mm tall requiring head support, lumbar contact and swivel mobility

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EM-HB-MESH-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EM-HB-MESH-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EM-HB-MESH-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

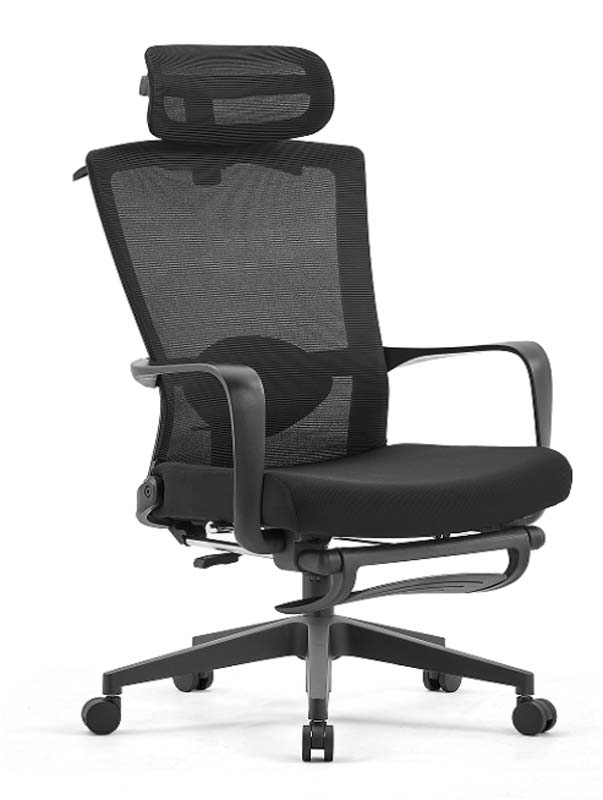

The Black Mesh High-Back Ergonomic Office Chair with Headrest, model EM-HB-MESH-01, is an unbranded seating solution designed for task-focused work environments. Its upright, high-back silhouette combines a black flexible mesh back panel and matching mesh headrest with a black upholstered foam seat. Molded armrests flank the seat, while the five-star base and twin-wheel casters create a familiar swivel-chair profile suited to organized workstation layouts. Overall dimensions are 650 x 680 x 1290 mm, with 540 mm of clear width between the armrests. The 90 mm finished seat cushion and 70 mm backrest padding provide a substantial visual form, and the 240 mm lumbar support zone is positioned to encourage contact through the lower back. Construction balances breathable and molded components. The backrest uses black mesh webbing over a molded polypropylene outer frame with a 2.0 mm wall target. The seat features molded polyurethane foam at a 45 kg/m3 density target, covered in black woven fabric, with an 8 mm molded polypropylene seat pan and steel reinforcing plate beneath. A steel mechanism supports the control functions, and the nylon five-star base carries twin-wheel casters. The chair has a published net weight of 19.5 kg and a recommended user weight capacity of 136 kg. Its static seat load verification target is 680 kg, while caster rolling, gas lift cycling, and backrest recline are each specified to 100000 cycles; seat slide endurance is rated to 20000 cycles. Practical adjustment supports extended seated work. A right-side under-seat lever controls pneumatic seat height through a 90 mm stroke. The synchro-tilt mechanism allows the backrest to recline 15 degrees, from 90 to 105 degrees from vertical, and a rear rotary knob provides tension adjustment across four user-weight settings. The headrest moves through 80 mm of vertical travel and pivots 15 degrees, helping users who want head support in addition to lumbar contact and swivel mobility. The chair is appropriate for open-plan offices, workstation clusters, and home offices where all-day seated tasks require a breathable back. Its recommended user profile covers people from 1600 to 1900 mm tall. Procurement planning should account for fixed arms, a black mesh aesthetic, self-contained swivel mobility, and assembly requirements. Each set is supplied in two cartons, with a reference packaged gross weight of 23 kg and reference carton dimensions of 850 x 420 x 720 mm. The reference carton volume is 0.26 m3 per set, and reference assembly time is 40 minutes per set.

Black Mesh High-Back Ergonomic Office Chair with Headrest Specifications
