PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	630 × 620 × 1010 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	120 kg
Net weight range	13 to 16 kg
Seat foam density	45 kg/m3
Back mesh static tension rating	120 kg
Caster rolling load per set	150 kg
Gas lift cycle durability	100000 cycles
Seat static load acceptance	136 kg
Backrest cyclic endurance	100000 cycles
Seat fabric abrasion acceptance	50000 Martindale cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest	Gray flexible woven mesh tensioned in a light gray molded outer frame
Seat cushion	Rounded padded seat with gray woven upholstery over shaped foam
Arm and back frame	Light gray molded loop frame integrating fixed armrests and back supports
Seat mechanism	Black metal tilt mechanism with side adjustment lever and tension knob
Gas lift	Black telescoping gas lift with upper and lower tube sections
Base and casters	Black five-star base with five black twin-wheel swivel casters

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift operated by the visible under-seat lever, engineered for a 100 mm stroke
Recline function	Center-tilt mechanism allows the seat and back to rock rearward to a 15-degree maximum tilt angle
Tilt tension control	Knob-style tension device under the seat adjusts resistance for users up to 120 kg
Swivel and mobility	360-degree swivel seat and five twin-wheel casters provide movement on hard floors or low-pile carpet

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	680 x 640 x 340 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Workstation seating	Suited to individual office desks and open-plan workstations requiring 540 mm seat-height adjustment and caster mobility.
Meeting and study areas	Appropriate for conference rooms, home offices, and study spaces where a ventilated mesh back and padded seat are needed for daily use.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OC-MESH-GY-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OC-MESH-GY-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OC-MESH-GY-01Open Export Tool

Quick Actions

Post an RFQ

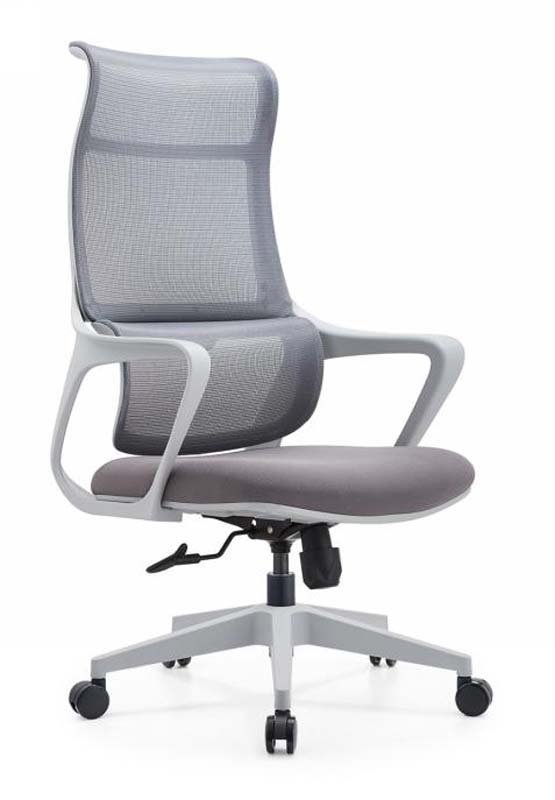

Product Description

The Mid-Back Gray Mesh Swivel Office Chair is a practical seating solution for daily workstation use, balancing a light, open appearance with structured support. Its gray flexible woven mesh back is tensioned within a light gray molded outer frame, creating a clean visual profile suited to modern office and residential settings. The matching molded loop frame integrates the fixed armrests and back supports, giving the chair a continuous, streamlined form. A rounded, upholstered foam seat in gray woven fabric complements the mesh back, while the black five-star base, gas lift, and twin-wheel casters provide a contrasting functional base. Overall dimensions are 630 x 620 x 1010 mm, with 90 mm finished seat cushion thickness, 70 mm backrest padding thickness, a 240 mm lumbar support zone, and 540 mm clear width between the fixed armrests. Construction centers on a shaped foam seat with gray woven upholstery, a flexible mesh backrest, molded frame components, a black metal tilt mechanism, and a telescoping gas lift. The seat uses 45 kg/m3 foam, and the back mesh carries a 120 kg static tension rating. The caster set is rated for a 150 kg rolling load, the seat accepts a 136 kg static load, and the chair has a recommended user weight capacity of 120 kg. Gas lift cycle durability is listed at 100000 cycles. For everyday use, the chair offers pneumatic seat-height adjustment through an under-seat lever with a 100 mm stroke. Its center-tilt mechanism lets the seat and back rock rearward to a 15-degree maximum tilt angle, while the under-seat tension knob adjusts recline resistance. A 360-degree swivel seat and five twin-wheel casters support movement at individual desks and shared work areas; the casters are intended for hard floors or low-pile carpet. This model is appropriate for open-plan offices, personal workstations, conference rooms, home offices, and study spaces where ventilated back support, a padded seat, and mobile swivel function are required. It is supplied unbranded under model OC-MESH-GY-01. Procurement teams should plan for assembly, with a reference time of 40 minutes per set. Packaging is listed as one set across two cartons, with a reference packaged gross weight of 23 kg per set and a reference carton volume of 0.26 m3 per set. Buyers should also note the fixed loop armrest design and light gray finish when coordinating the chair with existing desks, interiors, or fleet standards.
