PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	670 × 670 × 1270 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	136 kg
Net weight reference	18.5 kg
Seat foam density	45 kg/m3
Seat foam thickness	70 mm
Back mesh tensile support rating	120 kg distributed back load
Back recline travel	18 degrees from upright to reclined
Tilt tension adjustment range	45 to 136 kg user-force range
Gas-lift cycles	100000 height-adjustment cycles
Caster rolling durability	100000 cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support fabric	Grey breathable woven mesh stretched over a contoured polymer frame; material grade and flame rating need supplier BOM confirmation
Seat cushion	Molded polyurethane foam pad with fixed grey woven fabric upholstery and sewn edge panel
Headrest	Curved polymer shell with grey mesh-faced padded front and two-side support yoke
Back frame and arm supports	Light-grey injection-molded polymer outer frame with integral curved arm support columns
Arm contact pads	Dark-grey soft polymer pads mounted on rigid T-shaped supports
Under-seat mechanism	Black steel tilt plate with polymer adjustment levers and tension control

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift with 100 mm travel, operated by the visible under-seat lever and lockable at any position within the 440 to 540 mm range
Back recline and lock	Synchronous tilt mechanism provides 18 degrees of recline and locks in the upright position plus three intermediate recline positions
Tilt tension control	Rear under-seat rotary knob adjusts recline resistance for users from 45 to 136 kg
Headrest positioning	Height-adjustable curved headrest with 90 mm vertical travel and angle pivoting over a 25-degree arc

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	690 x 640 x 370 mm
Gross weight	20.5 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary workspace	Open-office workstations, private offices, and home offices requiring full-back support, swivel access, and seated movement over an 8-hour shift
User selection target	Users from 160 to 190 cm tall and up to 136 kg using a 720 to 760 mm desk height

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERM-GRY-HR-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERM-GRY-HR-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERM-GRY-HR-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

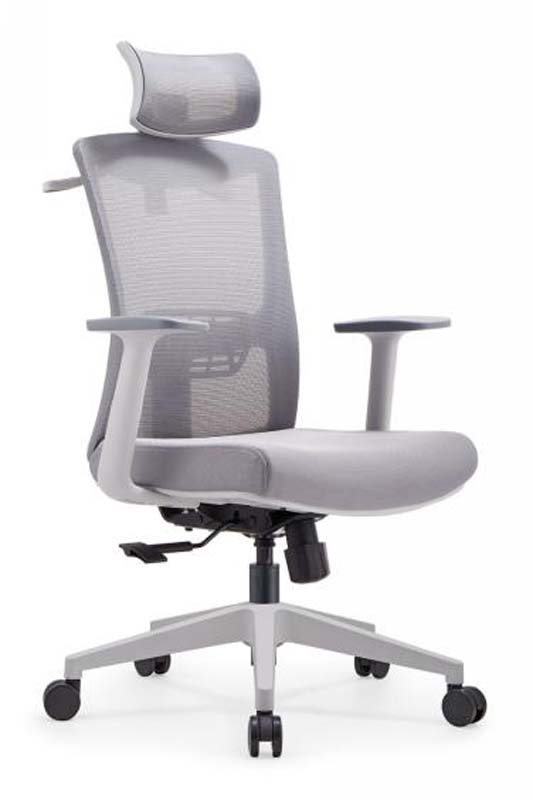

The Grey Mesh Ergonomic Executive Task Chair with Headrest is a high-back swivel task chair designed for full-back support in daily office use. Its visual character is defined by a breathable grey mesh back and matching mesh-faced headrest, set within a light-grey polymer outer frame. Integrated curved T-arm supports continue the frame structure, while dark-grey soft arm pads provide restrained contrast. The upholstered seat, five-star nylon base, twin-wheel casters, and painted steel gas-lift assembly give the chair a contemporary commercial look suited to both executive and standard work settings. Construction combines a contoured polymer back frame with grey woven mesh stretched across the support surface. The seat uses a molded polyurethane foam pad with fixed grey woven fabric upholstery and a sewn edge panel. Under the seat, a black steel tilt plate houses the tilt mechanism, polymer adjustment levers, and tension control. The support structure includes a painted steel gas-lift assembly, nylon five-star base, and black twin-wheel casters. The headrest uses a curved polymer shell with a padded mesh front and a two-side support yoke. Product documentation notes a finished seat cushion thickness of 90 mm, a 70 mm backrest padding figure, a 240 mm lumbar support zone, and 540 mm of clear width between the armrests. Material grade and flame rating should be confirmed through the supplier bill of materials before specification where these are project requirements. Functionally, the chair supports pneumatic seat-height adjustment with 100 mm of travel and locks at any position within its range. The synchronous tilt mechanism allows 18 degrees of back recline, with an upright lock and three intermediate recline positions. A rear under-seat rotary knob adjusts tilt tension across the stated user-force range. The curved headrest offers 90 mm of height adjustment and pivots through a 25-degree angle arc. Fixed T-armrests provide consistent forearm support, and the swivel base with casters supports easy movement around a workstation. The published recommended user weight capacity is 136 kg, and the back mesh has a distributed back-load support rating of 120 kg. This model is appropriate for open-office workstations, private offices, executive desks, and home offices where full-back support, swivel access, and seated movement across an eight-hour shift are priorities. It is targeted to users from 160 to 190 cm tall and up to 136 kg, paired with desks 760 mm high when using the maximum stated desk-height endpoint for planning. Procurement teams should review supplier confirmation of material grade and fire performance, confirm packaging details against the order, allow for on-site assembly, and verify that fixed armrest height, headrest movement, grey finish, and caster type match the intended flooring and workspace standards.
