PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	670 × 650 × 1290 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	136 kg
Net weight reference	19.5 kg
Gas lift class and stroke	Class 4, 100 mm diameter tube, 80 mm stroke
Tilt mechanism static strength reference	136 kg seat load
Five-star base static load reference	1134 kg vertical verification load
Caster rolling durability target	100000 cycles
Seat foam density	45 kg/m3 molded polyurethane
Seat foam rebound	40%
Fabric abrasion acceptance target	50000 Martindale cycles
Color count	1 visible colorway

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support	Gray elastic mesh tensioned within a dark outer frame and silver structural side rails
Seat cushion	80 mm polyurethane foam pad with woven gray fabric upholstery and rounded front edge
Headrest	Gray padded cushion on a silver height bracket, with dark side trim
Arm assembly	Black polymer top pads mounted on angular silver-painted steel or aluminum support posts
Under-seat mechanism	Black steel tilt mechanism with side tension handle and central gas-lift connection
Base and casters	Polished chrome-plated steel five-star base with five black twin-wheel swivel casters

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic lever raises and lowers the seat through an 80 mm stroke between 450 and 530 mm
Recline and lock system	Synchro-tilt mechanism reclines to 120 degrees with lock-in-position and rear tension control
Head and neck support	Separate padded headrest sits above the mesh back and is specified for 60 mm height adjustment
Mobility and rotation	360-degree swivel seat and five twin-wheel casters on a polished base support movement around a workstation

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	700 x 650 x 660 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary office application	Executive, managerial and focused workstation seating where lumbar support, recline and head support are required
Facility deployment	Open offices, private offices and meeting rooms on hard floors or low-pile carpet with rolling twin-wheel casters

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EOC-GRY-MESH-HR-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EOC-GRY-MESH-HR-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EOC-GRY-MESH-HR-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

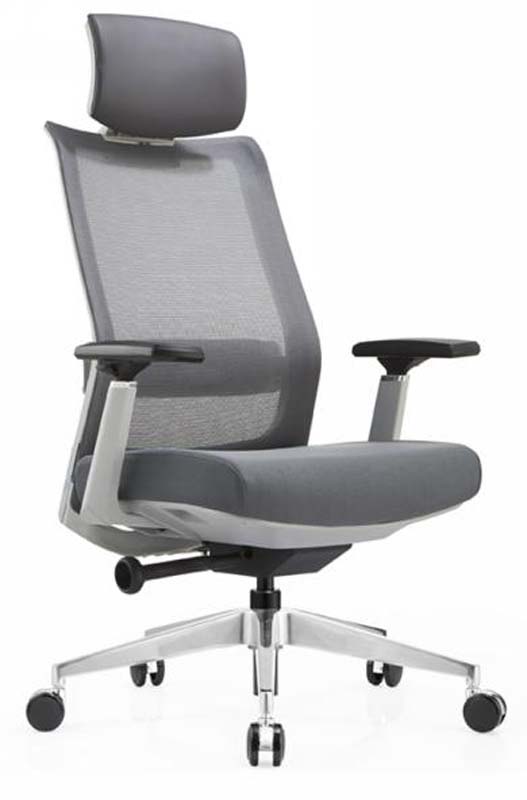

The Gray Mesh Ergonomic Executive Office Chair with Headrest presents a high-back executive profile defined by a gray elastic mesh back, a separate padded headrest, and a polished chrome five-star base. The mesh is tensioned within a dark outer frame and silver structural side rails, giving the backrest a breathable surface while maintaining a structured appearance. The gray fabric-covered foam seat has a rounded front edge, and black polymer arm pads rest on angular silver support posts, creating a balanced contrast among gray, black, and polished metallic finishes. Construction combines painted and chrome-plated steel components with molded polyurethane foam. The seat uses a 45 kg/m3 molded polyurethane cushion upholstered in woven gray fabric, while the back frame is made of painted steel. Under the seat is a black steel tilt mechanism with a side tension handle and central gas-lift connection. The polished chrome-plated steel base supports five black twin-wheel swivel casters. A Class 4 gas lift with an 80 mm stroke provides seat-height adjustment, and the padded headrest is mounted on a silver height bracket with dark side trim. Designed for extended task and executive seating, the chair supports pneumatic seat-height adjustment between 450 and 530 mm, 360-degree swivel movement, and mobility around a workstation through its five casters. The synchro-tilt mechanism reclines to 120 degrees, offers lock-in-position control, and includes rear tension control. The high mesh back includes a defined lumbar support zone, while the separate headrest provides 60 mm of height adjustment for head and neck support. The clear width between the armrests is 540 mm, and the recommended user weight capacity is 136 kg. This model is suited to executive offices, managerial workstations, private offices, open-plan work areas, and meeting rooms. Its twin-wheel casters are intended for hard floors or low-pile carpet, making it appropriate for standard commercial interiors as well as refined home offices where supportive, professional seating is required. Procurement teams should note that the chair is supplied unbranded under model EOC-GRY-MESH-HR-01 and ships as one set in two cartons, with a packaged gross weight of 23 kg and a reference assembly time of 40 minutes per set. Planning should allow for on-site assembly and verification of floor compatibility, caster movement, gas-lift operation, tilt tension, headrest height, and arm pad fitment before broad deployment.

Gray Mesh Ergonomic Executive Office Chair with Headrest Specifications
