PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	650 × 680 × 1320 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Seat foam thickness	80 mm
Seat foam density	45 kg/m3
Back mesh fabric thickness	2.0 mm
Fabric abrasion resistance target	50,000 Martindale cycles
Back frame internal thickness	4.0 mm
Gas-lift performance class	Class 4, 100 mm stroke
Gas-lift cycle target	100,000 height-adjustment cycles
Base static-load target	1,136 kg
Caster rolling durability target	100,000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Back and headrest suspension	Black elastic mesh held in a molded polymer frame
Seat upholstery	Black woven fabric over a contoured foam cushion
Seat cushion core	Molded polyurethane foam with molded front waterfall edge
Armrest assembly	Black molded polymer fixed arms with flat padded contact surfaces
Back support frame	Black molded polymer spine and side ribs with geometric mesh windows
Lumbar mechanism	Separate curved mesh pad controlled by a side rotary knob

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic lever provides 90 mm seat-height travel through the 450 to 540 mm working range
Back recline	Synchronized tilt mechanism supports a 15-degree back recline with tension adjusted by the under-seat knob
Lumbar support	Rotary side control adjusts the movable lumbar pad by 40 mm in depth to match the lower back
Headrest support	Height-adjustable mesh headrest moves through 80 mm and pivots 25 degrees for neck support

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton gross weight	18.5 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation use	Suitable for individual desks and open-plan workstations where breathable back support and height adjustment are required for 6 to 8 hour seated tasks
Home office and study use	Fits compact home offices needing a swivel task chair with headrest, lumbar support, and mobility without a large executive-chair footprint

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERC-MESH-HB-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERC-MESH-HB-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERC-MESH-HB-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

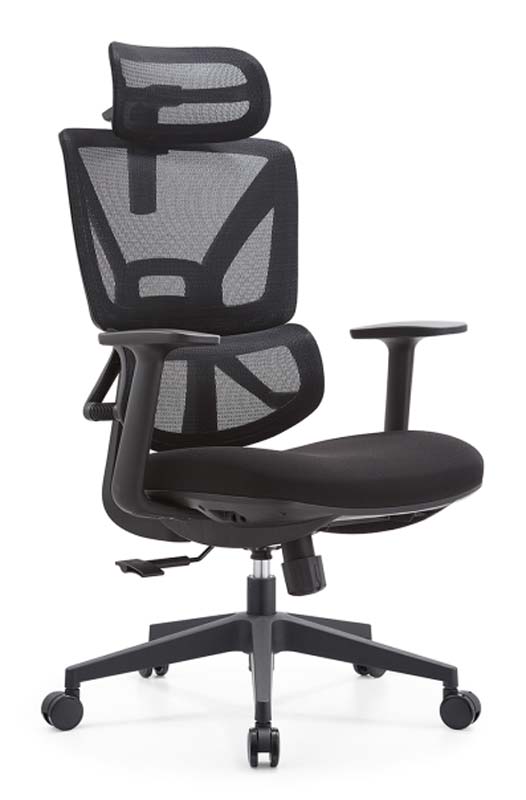

The Black Mesh High-Back Ergonomic Office Chair with Headrest and Adjustable Lumbar Support is an unbranded task seating solution, model ERC-MESH-HB-01, designed for users seeking structured support in a streamlined profile. Its visual language is defined by a tall black elastic mesh back and matching mesh headrest, both suspended within molded polymer frames. A central spine and side ribs form geometric mesh windows, giving the backrest an open, architectural appearance while maintaining a consistent dark finish. The black woven fabric seat, fixed molded polymer armrests, black frame, nylon five-star base, twin-wheel casters, and chrome gas lift create a coordinated look suited to neutral office interiors. The chair is organized around a high-back layout with a separate curved lumbar pad and a height-adjustable, pivoting headrest. Its overall dimensions are 650 by 680 by 1320 millimeters, with 540 millimeters of clear width between the armrests. The seat uses a contoured molded polyurethane foam cushion with a molded waterfall front edge, upholstered in black woven fabric. The finished cushion is 90 millimeters thick, while the foam core is 80 millimeters thick and specified at 45 kilograms per cubic meter. The backrest combines 2.0 millimeter mesh with a molded polymer support structure and 70 millimeters of backrest padding thickness. The fixed arms feature flat padded contact surfaces, and the 240 millimeter lumbar support zone is controlled by a side rotary knob. Functional adjustment is focused on everyday desk use. A pneumatic lever provides 90 millimeters of seat-height travel across a 450 to 540 millimeter working range. The synchronized tilt mechanism enables 15 degrees of back recline, with tension set using an under-seat knob. The movable lumbar pad adjusts 40 millimeters in depth to suit the lower back, while the mesh headrest moves through 80 millimeters of height and pivots 25 degrees for neck support. The swivel base and dual-wheel casters support movement between tasks, and the Class 4 gas lift has a 100 millimeter stroke. Recommended user weight capacity is 150 kilograms, and the fabric abrasion resistance target is 50,000 Martindale cycles. This model is appropriate for individual desks, open-plan workstations, home offices, and study spaces where breathable back support, adjustable height, headrest support, and mobility are needed without the larger footprint of an executive chair. It is intended for seated tasks lasting six to eight hours. Procurement teams should plan for one chair supplied across two cartons, with packaged gross weight of 23 kilograms per set and a reference assembly time of 40 minutes. The fixed armrest design, black mesh aesthetic, and included headrest should be checked against workstation dimensions, user needs, and interior standards before purchase.

Black Mesh High-Back Ergonomic Office Chair with Headrest and Adjustable Lumbar Support Specifications
