PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	620 × 620 × 1010 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	120 kg
Net weight	12.5 kg
Seat foam density	40 kg/m3
Back mesh breaking-load target	250 N per 50 mm strip
Fabric abrasion acceptance target	50,000 Martindale cycles
Seat static-load verification target	102 kg for 1 hour
Caster rolling durability target	100,000 cycles
Gas lift cycle target	100,000 height-adjustment cycles
Base static-load acceptance target	1134 kg vertical proof load
Warranty period	3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest construction	Black flexible mesh stretched over a black molded polymer frame with a contoured central lumbar band
Seat upholstery	Dark gray woven textile over a contoured foam cushion with stitched edge piping
Seat cushion	70 mm molded polyurethane foam on a load-bearing seat shell
Internal seat support	8 to 10 mm molded polymer seat pan mounted to a steel mechanism plate
Armrests	Fixed black polymer T-shaped arms with rectangular soft-touch pads and vertical support posts
Lift and center structure	Black powder-coated steel telescopic gas lift with a 50 mm outer tube and polymer center shroud

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height adjustment from 440 to 540 mm using the right-side lever and a 100 mm lift stroke
Back recline	Backrest tilts from 93 to 110 degrees, with the side lever used to lock or release the selected recline position
Tension control	Rear under-seat knob adjusts tilt resistance to suit body weight and reclining force
Swivel mobility	360-degree swivel seat and five twin-wheel casters enable movement around a workstation without lifting the chair

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Workstation use	Suited to open-plan desks, private offices, and home offices requiring 440 to 540 mm seat height and rolling swivel access
User profile	Designed for single-shift users up to 120 kg who need breathable mesh back support and fixed forearm support

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OC-MB-FA-620

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OC-MB-FA-620

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OC-MB-FA-620Open Export Tool

Quick Actions

Post an RFQ

Product Description

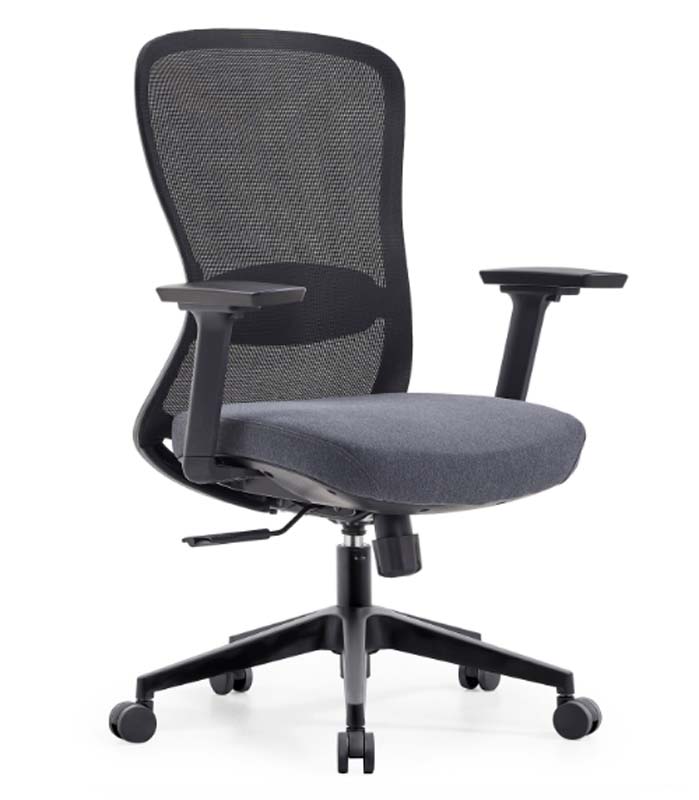

The Mid-Back Mesh Swivel Task Chair with Fixed Arms, model OC-MB-FA-620, is an unbranded office chair designed for practical daily seating at individual workstations. Its overall form combines a black mesh back, dark gray upholstered seat, fixed black arms, and a five-star caster base, giving it a functional appearance suited to neutral office interiors. The backrest uses flexible black mesh stretched over a black molded polymer frame and includes a contoured central lumbar band. The seat is covered in dark gray woven textile with stitched edge piping and sits over a contoured molded polyurethane foam cushion on a load-bearing shell. Fixed T-shaped polymer arms with rectangular soft-touch pads provide consistent forearm support, while the clear width between armrests supports comfortable positioning at a desk. Construction balances lightweight mobility with structural support. The seat uses a molded polymer seat pan mounted to a steel mechanism plate, and the center structure features a black powder-coated steel telescopic gas lift with a polymer center shroud. The chair rests on a nylon five-star base fitted with nylon twin-wheel casters. Its listed specifications include a 90 mm finished seat cushion, 70 mm backrest padding dimension, 240 mm lumbar support zone height, 40 kg/m3 seat foam density, and a recommended user weight capacity of 120 kg. Material and durability targets noted for the product include a back mesh breaking-load target of 250 N per 50 mm strip, fabric abrasion acceptance at 50,000 Martindale cycles, static-load verification at 102 kg for one hour, and caster rolling durability of 100,000 cycles. For function, the chair provides pneumatic seat-height adjustment from 440 to 540 mm through a right-side lever with a 100 mm lift stroke. The backrest tilts from 93 to 110 degrees and can be locked or released using the side lever. A rear under-seat knob controls tilt tension, allowing the resistance to be adjusted to body weight and preferred reclining force. A 360-degree swivel seat and five twin-wheel casters allow users to turn and move within a workstation without lifting the chair. This model is appropriate for open-plan desks, private offices, and home offices where rolling swivel access and a breathable mesh back are priorities. It is intended for single-shift users up to 120 kg who prefer fixed arm support. Procurement planning should account for delivery as one set in two cartons, a packaged gross weight of 23 kg per set, 0.26 cubic meters of carton volume, and a reference assembly time of 40 minutes per set. The 20-foot container loading indication is 135 sets at 85 percent space utilization, useful for bulk purchasing and storage s.

Mid-Back Mesh Swivel Task Chair with Fixed Arms Specifications
