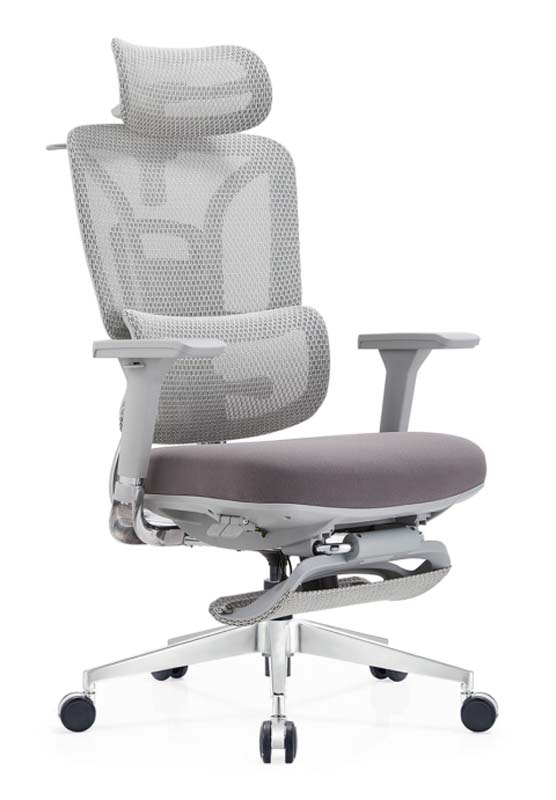

Grey Mesh Ergonomic Office Chair with Headrest and Retractable Footrest (model EMH-FT-GRY-01) is listed under Mesh Office Chair. Dimensions: 680 × 690 × 1290 mm. Materials: Grey engineered polymer mesh stretched over a painted structural frame, visible as a ventilated elastic support; fiber grade requires supplier BOM confirmation.. Load capacity: 150 kg. Product Features: ergonomic,high-back,chair,mesh,back,adjustable,headrest,retractable,footrest,five-star,swivel,base,grey,and,dark,finish. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | FENGGUAN | Model | EMH-FT-GRY-01 |
| Overall dimensions (W × D × H) | 680 × 690 × 1290 mm | Finished Seat Cushion Thickness | 90 mm |
| Backrest Padding Thickness | 70 mm | Lumbar Support Zone Height | 240 mm |
| Clear Width Between Armrests | 540 mm | Recommended static load capacity | 150 kg |
| Net weight reference | 22 kg | Seat foam density | 45 kg/m3 |
| Back mesh tensile reference | 900 N/50 mm | Fabric abrasion acceptance target | 50,000 Martindale cycles |
| Gas lift cycles acceptance target | 100,000 cycles | Caster rolling durability target | 100,000 cycles |
| Seating capacity | 1 person | Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
| Back Foam Density Reference | 38 kg/m³ | Backrest and headrest | Grey engineered polymer mesh stretched over a painted structural frame, visible as a ventilated elastic support; fiber grade requires supplier BOM confirmation. |
| Seat cushion | Dark grey woven fabric over 100 mm molded foam, with a contoured waterfall front; foam density and fabric composition require supplier BOM confirmation. | Internal seat support | Steel seat plate and engineered-polymer carrier beneath the cushion, inferred from the exposed mechanism and chair class. |
| Lifting and tilt hardware | Chrome-plated or polished steel gas-lift column connected to a multi-position synchro-tilt mechanism under the seat. | Base and casters | Polished aluminium five-star base with five black twin-wheel polyurethane casters and metallic wheel forks. |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | Height adjustment | Pneumatic gas lift raises the seat to 540 mm and lowers it to 460 mm for 760 mm office desks. |
| Recline and lock | Synchro-tilt mechanism allows back recline to 125 degrees with seat-back synchronized movement and position locking. | Arm support | Padded arm posts provide vertical height adjustment and 240 mm elbow support above the seat for keyboard work. |
| Head and neck support | Curved mesh headrest provides adjustable height and angle to align with the neck during reclined resting. | Gross weight | 25 kg |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Carton Dimensions | 850× 420× 720 mm | Reference Packaged Gross Weight | 23 kg/set |
| Reference Carton Volume | 0.26 m³/set | Primary workplace | Executive workstation, private office, or home office where users need 8 hour lumbar, neck, arm, and recline support. |
| Facility use | Open-plan offices and manager workstations requiring swivel mobility, breathable mesh, and a retractable rest position. | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 680 × 690 × 1290 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended static load capacity | 150 kg | |
|---|---|---|
| Net weight reference | 22 kg | |
| Seat foam density | 45 kg/m3 | |
| Back mesh tensile reference | 900 N/50 mm | |
| Fabric abrasion acceptance target | 50,000 Martindale cycles | |
| Gas lift cycles acceptance target | 100,000 cycles | |
| Caster rolling durability target | 100,000 cycles | |
| Seating capacity | 1 person | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Backrest and headrest | Grey engineered polymer mesh stretched over a painted structural frame, visible as a ventilated elastic support; fiber grade requires supplier BOM confirmation. | |
|---|---|---|
| Seat cushion | Dark grey woven fabric over 100 mm molded foam, with a contoured waterfall front; foam density and fabric composition require supplier BOM confirmation. | |
| Internal seat support | Steel seat plate and engineered-polymer carrier beneath the cushion, inferred from the exposed mechanism and chair class. | |
| Lifting and tilt hardware | Chrome-plated or polished steel gas-lift column connected to a multi-position synchro-tilt mechanism under the seat. | |
| Base and casters | Polished aluminium five-star base with five black twin-wheel polyurethane casters and metallic wheel forks. | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Height adjustment | Pneumatic gas lift raises the seat to 540 mm and lowers it to 460 mm for 760 mm office desks. | |
|---|---|---|
| Recline and lock | Synchro-tilt mechanism allows back recline to 125 degrees with seat-back synchronized movement and position locking. | |
| Arm support | Padded arm posts provide vertical height adjustment and 240 mm elbow support above the seat for keyboard work. | |
| Head and neck support | Curved mesh headrest provides adjustable height and angle to align with the neck during reclined resting. |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Gross weight | 25 kg | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary workplace | Executive workstation, private office, or home office where users need 8 hour lumbar, neck, arm, and recline support. | |
|---|---|---|
| Facility use | Open-plan offices and manager workstations requiring swivel mobility, breathable mesh, and a retractable rest position. |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.1 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
