PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 680 × 1320 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Net weight	22 kg
Back tilt range	135degrees
Gas-lift travel	80 mm
Back dynamic test reference load	136 kg
Seat static acceptance load	1020 N
Caster rolling durability target	100000 cycles
Mechanism recline cycle target	100000 cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery	Grey flexible mesh over a moulded contoured seat shell
Backrest upholstery	Grey tension mesh on a framed ergonomic back with integrated lumbar zone
Headrest	Breathable grey mesh pad mounted on a curved plastic support bracket
Arm components	Grey engineering-plastic arm supports with soft black or dark-grey padded top surfaces
Internal seat frame	Reinforced polymer seat pan with steel mechanism mounting plate
Lift and base	Chrome-plated steel gas-lift column and polished five-star metal base

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift with side paddle, providing 80 mm travel and a 540 mm maximum seat height
Recline system	Synchronized seat-and-back mechanism reclining to 135 degrees with user-weight tension control
Armrest adjustment	Height-adjustable arm posts supporting the 260 x 95 mm pads over an 80 mm vertical range
Headrest adjustment	Pivoting curved headrest providing neck support to 900 mm above the seat

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Gross weight per carton	26 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive and workstation use	Suited to individual desks, executive workstations and hot desks requiring 4-hour-plus seated support
Reclined task or break use	Suitable for short reclining breaks at a workstation because the stored footrest extends to 260 mm

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EM-GMESH-FT01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EM-GMESH-FT01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EM-GMESH-FT01Open Export Tool

Quick Actions

Post an RFQ

Product Description

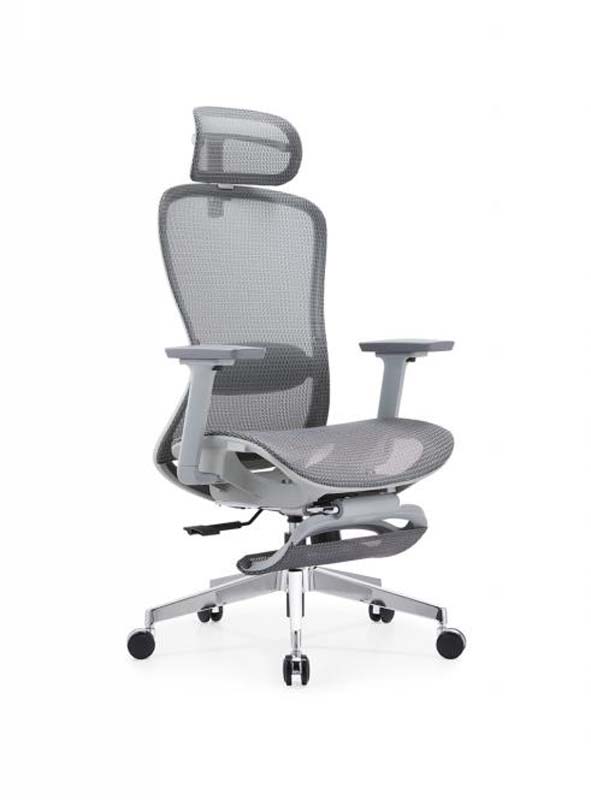

The Grey Mesh Ergonomic Office Chair with Headrest and Sliding Footrest is a high-back task chair designed for users seeking structured support, breathable surfaces, and a built-in reclining option. Presented as model EM-GMESH-FT01 under an unbranded label, it has a streamlined commercial-office appearance defined by grey mesh, engineered-plastic framing, dark padded arm surfaces, and a polished chrome-plated steel five-star base. Its tall back, contoured seat, pivoting headrest, and retractable footrest create a layered ergonomic layout suited to focused work and brief periods of relaxed reclining. The seat uses grey flexible mesh over a moulded contoured shell, with a finished cushion thickness of 90 mm. The backrest combines grey tension mesh with a framed ergonomic form, a 70 mm padded section, and an integrated lumbar support zone measuring 240 mm in height. A breathable grey mesh headrest is carried on a curved plastic support bracket, while the armrests pair grey engineering-plastic supports with soft black or dark-grey padded pads. Internally, the chair uses a reinforced polymer seat pan with a steel mechanism mounting plate. Mobility is provided by a chrome-plated gas-lift column, polished five-star metal base, and twin-wheel casters. Everyday adjustment is centered on a pneumatic seat-height lift operated by a side paddle, with 80 mm of travel and a maximum seat height of 540 mm. The synchronized seat-and-back mechanism allows the chair to recline to 135 degrees and incorporates user-weight tension control. Arm posts adjust through an 80 mm vertical range, supporting 260 by 95 mm arm pads, and the 540 mm clear width between armrests gives generous seated room. The curved headrest pivots to position neck support up to 900 mm above the seat. When a short reclined break is desired, the stored mesh footrest extends 260 mm. The chair is appropriate for individual desks, executive workstations, hot desks, and other workstation settings where support over seated periods of four hours or more is a priority. Its recline and footrest also make it useful in offices that want occasional break posture without adding a separate lounge seat. Residential use is equally credible in home offices and study spaces that favor a professional mesh-chair aesthetic. Procurement planning should account for a recommended user weight capacity of 150 kg, a net weight of 22 kg, and overall dimensions of 680 by 680 by 1320 mm. The chair is supplied as one set across two cartons, with reference packaging details including 0.26 cubic meters per set, 850 by 420 by 720 mm carton dimensions, and a reference packaged gross weight of 23 kg per set; a separate gross weight per carton is listed as 26 kg. Buyers should allow 40 minutes for assembly per set and confirm floor surface suitability for the twin-wheel casters before placement.

Grey Mesh Ergonomic Office Chair with Headrest and Sliding Footrest Specifications
