PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	630 × 640 × 1030 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight	120 kg
Net weight	13.5 kg
Caster rolling load per set	150 kg total
Base static load target	500 kg
Gas-lift cycle target	100,000 height cycles
Seat swivel	360 degrees
Tilt range	90 to 112 degrees
Seat impact durability target	100,000 cycles
Fabric abrasion acceptance target	30,000 Martindale cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support	Light gray flexible mesh tensioned within a molded polymer frame
Seat cushion	Molded foam seat pad with gray woven upholstery over a steel or plywood seat shell
Back frame	Gray glass-fiber-reinforced nylon or polypropylene outer frame with integrated lower belt
Armrests	Fixed gray polymer arm posts with flat polymer contact pads and no visible adjustment button
Lumbar mechanism	Curved polymer lumbar bracket with circular height-adjustment knob and metal insert
Base and lift	Gray molded nylon five-star base, black powder-coated steel gas lift and black tilt mechanism

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift operated by the visible right-side lever, with a 100 mm procurement stroke
Recline and lock	Synchro-style tilt plate with side lever for lock or tension setting, engineered for a 22-degree maximum back recline
Lumbar positioning	Central knob adjusts the curved lumbar pad height or pressure on the lower back
Mobility	360-degree swivel and five twin-wheel casters provide rolling movement on hard floors or low-pile carpet

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Workstation seating	Suitable for open-plan desks, private offices and home offices where a compact mid-back mesh chair is required
Project and meeting areas	Suitable for hot desks, training rooms and temporary workpoints requiring swivel mobility and fixed arm support

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ENC-MESH-GY-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ENC-MESH-GY-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ENC-MESH-GY-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

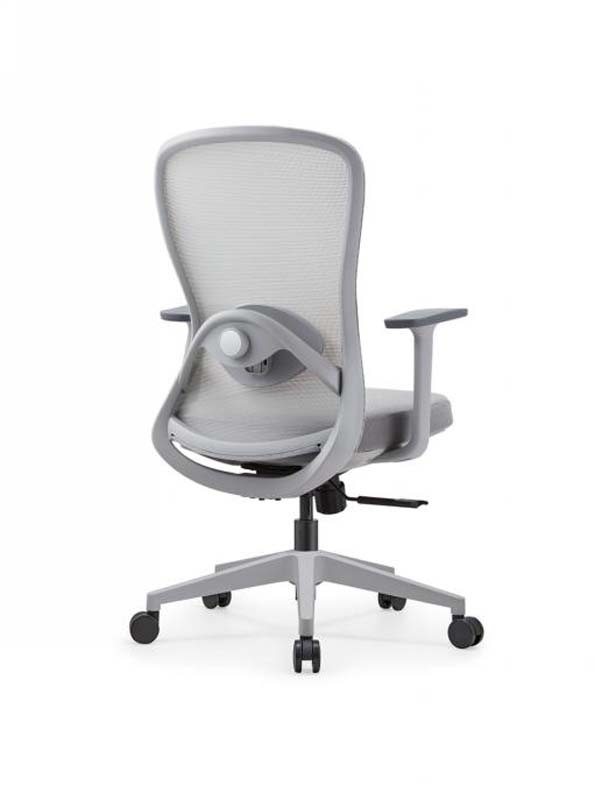

The Gray Mesh Swivel Task Chair with Fixed Armrests and Lumbar Pad is a practical mid-back office seating solution for settings that value straightforward support, mobility, and a restrained gray aesthetic. Model ENC-MESH-GY-01 is unbranded and presented as a functional task chair for routine workstation use. Its light gray mesh back is tensioned within a molded polymer frame, giving the chair a clean, open appearance while allowing the backrest to flex with the user. A curved lumbar pad sits within the lower-back support zone, adjusted through a central circular knob, while fixed gray armrests provide a simple, uncluttered side profile without visible adjustment controls. The gray molded nylon five-star base, black gas lift, black tilt mechanism, and twin-wheel casters complete the chair’s professional, neutral form. The overall dimensions are 630 by 640 by 1030 millimeters, with a 540-millimeter clear width between armrests. Construction combines a gray glass-fiber-reinforced nylon or polypropylene outer back frame with an integrated lower belt, a molded foam seat pad upholstered in gray woven fabric, and a steel or plywood seat shell. The finished seat cushion is 90 millimeters thick, and backrest padding is 70 millimeters thick. Fixed polymer arm posts and flat contact pads contribute to a durable, low-maintenance specification, while the curved polymer lumbar bracket includes a metal insert and height-adjustment knob. Under the seat, a black powder-coated steel gas lift provides pneumatic height adjustment through a visible right-side lever, with a 100-millimeter procurement stroke. The synchro-style tilt plate includes a side lever for lock or tension control and supports a maximum back recline of 22 degrees, with the tilt range extending from 90 to 112 degrees. The seat offers 360-degree swivel movement, and the five twin-wheel casters are intended for rolling on hard floors or low-pile carpet. The recommended user weight is 120 kilograms, the chair net weight is 13.5 kilograms, and the caster rolling load is 150 kilograms total per set. The chair is well suited to open-plan desks, private offices, home offices, hot desks, training rooms, and temporary workpoints where swivel mobility and fixed arm support are needed. For procurement, each set ships in two cartons with reference assembly time of 40 minutes. Packaged gross weight is 23 kilograms, carton volume is 0.26 cubic meter per set, and the indicative 20GP loading is 135 sets at 85 percent space utilization. Buyers should review seat width, lumbar adjustment, flooring type, assembly resources, and delivery packaging against project requirements.

Gray Mesh Swivel Task Chair with Fixed Armrests and Lumbar Pad Specifications
