PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 680 × 1290 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	18.5 kg
Maximum user weight	150 kg
Seat static load rating	200 kg
Gas-lift vertical stroke	80 mm
Backrest recline range	95 to 135 degrees
Seat-slide travel	50 mm
Caster rolling durability target	100000 cycles
Gas-lift cyclic durability target	100000 height-adjustment cycles
Seat and back load-cycle target	100000 recline cycles
Recommended daily usage	8 hours

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support fabric	Black flexible woven mesh stretched over a framed polymer back, with visible lumbar contour
Seat support surface	Black breathable mesh over a molded cushion carrier and contoured waterfall front
Seat comfort layer	Molded polyurethane foam insert with 60 mm effective thickness at the rear pressure zone
Lumbar support	Black padded central lumbar pad mounted on the mesh back
Back and side frame	Injection-molded black polymer outer frame with reinforced rear spine
Armrest construction	Height-adjustable black polymer posts with 25 mm padded polymer top pads

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height adjustment with 80 mm lift stroke controlled by an under-seat lever
Recline and lock system	Synchronized seat-and-back recline from 95 to 135 degrees with multi-position lock via the under-seat chassis
Armrest adjustment	4D armrests provide height, width, 40 mm slide and 15-degree pad rotation for arm alignment
Headrest adjustment	Curved headrest provides 80 mm height travel and 25-degree angle change for neck support

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary workstation use	Suitable for private offices, open-plan desks and home offices where users need recline, head support and footrest use during long computer tasks
Facility selection	Suitable for commercial seating tenders requiring black upholstery, mobile swivel base, adjustable armrests and high-back ergonomic support

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1 applicability	Use for office-chair dimensional and safety-space evaluation of seat, back, arms and clearance
EN 1335-2 applicability	Use for structural safety, stability and strength acceptance of the mobile swivel chair
EN 1335-3 applicability	Use as the test-method reference for structural strength, durability and mechanism validation
EN 1022 applicability	Use for static stability testing when the chair is occupied and reclined

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1 applicability	Use for back, seat, arm, base, caster, tilt and gas-lift durability and safety acceptance

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357.3 applicability	Use for chair strength and durability testing of the backrest, seat, arms and base during procurement inspection
GB/T 28004.1 applicability	Use for swivel office-chair dimensional, safety and structural quality checks before acceptance
GB/T 17957 applicability	Use for caster and chair-base stability requirements relevant to the five-star mobile base

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357.3 applicability: Use for chair strength and durability testing of the backrest, seat, arms and base during procurement inspection;
2. GB/T 28004.1 applicability: Use for swivel office-chair dimensional, safety and structural quality checks before acceptance;
3. GB/T 17957 applicability: Use for caster and chair-base stability requirements relevant to the five-star mobile base;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EMH-FT4D-BLK-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EMH-FT4D-BLK-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EMH-FT4D-BLK-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

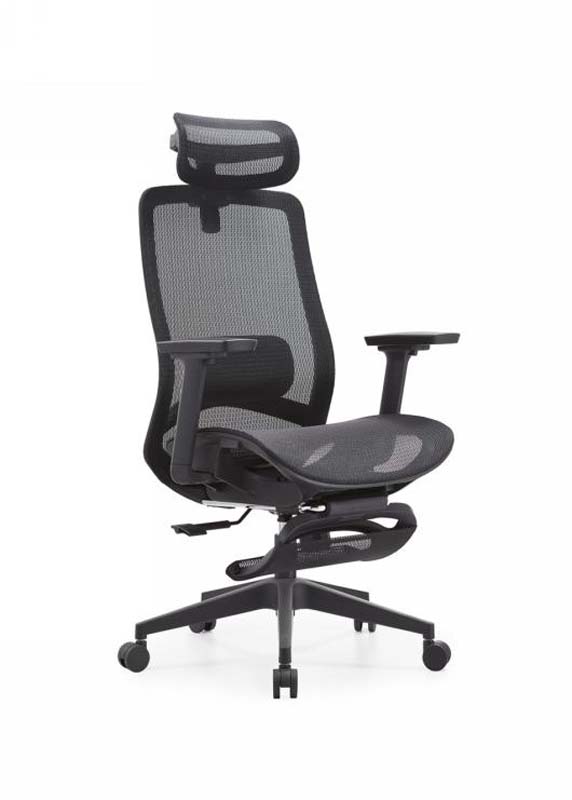

The Black Mesh Ergonomic Executive Office Chair presents a high-back, task-focused profile finished in black. Its breathable woven mesh back is stretched over a molded polymer frame, with a visible lumbar contour and a padded central support pad. A curved headrest crowns the backrest, while the black outer frame and reinforced rear spine give the chair a structured executive appearance. The seat uses black mesh over a molded cushion carrier with a contoured waterfall front, and the matching black armrests, five-star base, casters, and sliding footrest maintain a coordinated visual layout suitable for professional interiors. Construction combines flexible support surfaces with durable load-bearing components. The seat contains a molded polyurethane foam insert, with 90 millimeters of finished cushion thickness and a 60-millimeter effective comfort layer at the rear pressure zone. Backrest padding is 70 millimeters thick, and the lumbar support zone is 240 millimeters high. The frame is injection-molded black polymer, while the base is black steel in a five-star form. Twin-wheel casters provide mobility, and the gas lift offers 80 millimeters of vertical travel. The chair weighs 18.5 kilograms, supports a maximum user weight of 150 kilograms, and carries a 200-kilogram static load rating for the seat. Designed for extended computer work, the chair uses pneumatic seat-height adjustment from an under-seat lever. Its synchronized seat-and-back recline moves from 95 to 135 degrees and can be locked in multiple positions through the under-seat chassis. The seat also provides 50 millimeters of slide travel. The 4D armrests adjust in height and width, with 40 millimeters of pad slide and 15 degrees of rotation to align with the shoulders and forearms. Armrest posts are black polymer with 25-millimeter padded top pads, and the clear width between armrests is 540 millimeters. The headrest offers 80 millimeters of height travel and a 25-degree angle change, while the retractable sliding mesh footrest supports relaxed reclining. This model is appropriate for private offices, open-plan workstations, and home offices where users require head support, recline, adjustable arm support, and footrest use. It is also suited to commercial seating tenders specifying black upholstery, a mobile swivel base, and high-back ergonomic support. Procurement teams should note the unbranded model number EMH-FT4D-BLK-01. Each set ships in two cartons, with packaged gross weight of 23 kilograms and reference carton dimensions of 850 by 420 by 720 millimeters. Reference assembly time is 40 minutes per set, and indicative loading is 135 sets in a 20-foot general-purpose container at 85 percent space utilization. The caster rolling durability target is 100,000 cycles.

Black Mesh Ergonomic Executive Office Chair with Headrest, Retractable Footrest and 4D Armrests Specifications
