PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	660 × 640 × 1080 mm
Overall product size	660 x 640 x 1080 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	136 kg
Net weight	15.5 kg
Static vertical seat load acceptance target	1134 kg for 1 hour
Caster rolling durability target	100000 cycles over obstacle course
Gas lift cyclic durability target	100000 height-adjustment cycles
Backrest cyclic tilt durability target	120000 cycles
Recommended user height range	160 to 185 cm
Seat foam density	45 kg/m3 molded polyurethane
Back mesh tensile burst target	450 N minimum
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery	Gray woven polyester mesh over a contoured 60 mm foam cushion, with waterfall front edge
Backrest	Gray flexible mesh tensioned within a gray polymer outer frame and integrated lumbar zone
Seat support shell	30% glass-fiber-reinforced polypropylene seat pan, 5 mm molded wall thickness
Armrests	Height-adjustable gray polymer arm posts with soft-touch rectangular polyurethane pads
Gas lift and controls	Black steel gas-lift collar, chrome telescoping tube, black tilt lever, and tension knob
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic lever provides 100 mm height travel from 440 to 540 mm
Synchronized recline	Back reclines through 18 degrees with coordinated seat tilt and rear tension knob
Armrest adjustment	Vertical arm posts provide 80 mm pad-height adjustment for forearm alignment
Swivel and mobility	360-degree swivel seat with five 60 mm black twin-wheel casters for hard-floor movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office workstations	Suits daily computer work with breathable mesh back, mobile base, adjustable seat height, and forearm support
Home office and meeting rooms	Neutral gray finish and compact 660 mm width fit individual desks, shared focus rooms, and conference workpoints

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EMB-GM5P-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EMB-GM5P-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EMB-GM5P-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

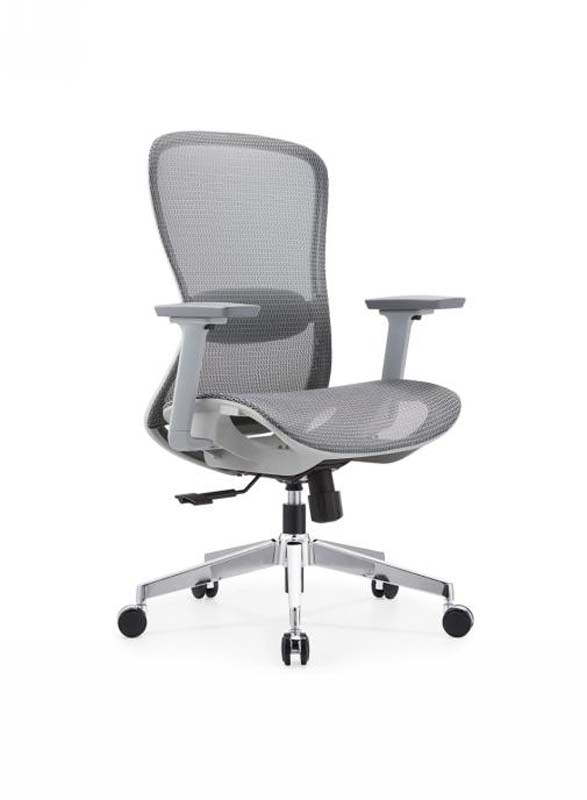

The Mid-Back Gray Mesh Ergonomic Office Chair, model EMB-GM5P-01, presents a clean commercial seating solution with a neutral gray finish and a compact mid-back profile. Its open mesh backrest is tensioned within a matching gray polymer frame, while the contoured seat uses gray woven polyester mesh over molded foam with a waterfall front edge. The rectangular soft-touch polyurethane arm pads sit on gray height-adjustable posts, and the polished aluminum five-star base contrasts with the black twin-wheel casters and gas-lift assembly. The complete chair measures 660 x 640 x 1080 mm, with 540 mm of clear width between the armrests. It combines a breathable visual character with structured support, making it suitable for settings where a professional, understated appearance is preferred. Construction balances comfort and durability through layered support materials. The seat uses a 30 percent glass-fiber-reinforced polypropylene seat pan with a 5 mm molded wall thickness, paired with a 14 mm bent plywood or equivalent support board. The finished cushion is 90 mm thick, including a 60 mm contoured foam cushion, while the backrest offers 70 mm of padding thickness and a 240 mm high integrated lumbar support zone. Controls include a black steel gas-lift collar, chrome telescoping tube, black tilt lever, and rear tension knob. Functionally, the chair supports a range of seated positions through pneumatic seat-height movement from 440 to 540 mm, synchronized back recline through 18 degrees, and coordinated seat tilt. The arm pads adjust vertically through 80 mm to assist forearm alignment, while the 360-degree swivel seat and five 60 mm twin-wheel casters provide mobility over hard floors. The chair has a recommended user weight capacity of 136 kg and is intended for users from 160 to 185 cm tall. It is well suited to open-plan office workstations and daily computer-based work, as well as home offices, individual desks, shared focus rooms, meeting rooms, and conference workpoints. Its restrained gray appearance works across shared and residential workspaces. Procurement teams should plan for one set supplied in two cartons, with reference assembly time of 40 minutes per set, packaged gross weight of 23 kg, and carton volume of 0.26 cubic meter per set. The chair has a net weight of 15.5 kg. Durability targets include 100000 caster rolling cycles over an obstacle course, 100000 gas-lift height-adjustment cycles, 120000 backrest tilt cycles, and a static vertical seat load acceptance target of 1134 kg for one hour. An indicative 20GP container plan allows 135 sets at 85 percent space utilization.

Mid-Back Gray Mesh Ergonomic Office Chair Specifications
