PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	690 × 1320 × 1260 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	21 kg
Recommended user weight capacity	150 kg
Suitable user height	1600 to 1900 mm
Gas-lift stroke	80 mm
Back recline angle	135 degrees from upright
Leg-rest extension travel	320 mm
Seat foam density	45 kg/m3
Seat foam thickness	70 mm
Back mesh tensile load	1200 N per 50 mm strip
Base static-load target	1136 kg vertical verification load

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Grey breathable elastic mesh over a contoured polymer perimeter frame
Seat upholstery	Grey mesh or woven fabric surface over 70 mm moulded foam cushion
Seat-support shell	Injection-moulded polymer seat pan with visible underside cut-outs
Back frame	Rigid light-grey polymer outer frame with integrated lumbar curve
Armrests	Height-positioned light-grey polymer supports with dark-grey padded top pads
Leg-rest assembly	Grey polymer padded support on polished chrome sliding steel rails

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Synchronized recline and leg rest	Backrest reclines to 135 degrees while the rail-mounted leg rest extends 320 mm for rest posture
Pneumatic seat-height adjustment	Side lever controls an 80 mm gas-lift stroke, setting seat height from 460 to 540 mm
Adjustable head support	Headrest provides 80 mm height travel and 25 degrees tilt adjustment for neck support
Swivel and mobility	360-degree swivel seat with five 60 mm twin-wheel casters on a 700 mm chrome base

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Gross weight	24 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive or knowledge-worker workstation	Suitable for prolonged computer work where head support, recline and leg support are required
Private office or quiet focus room	Fits individual offices and focus rooms that need a neutral grey chair with reclining break function

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERM-GRY-LR-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERM-GRY-LR-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERM-GRY-LR-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

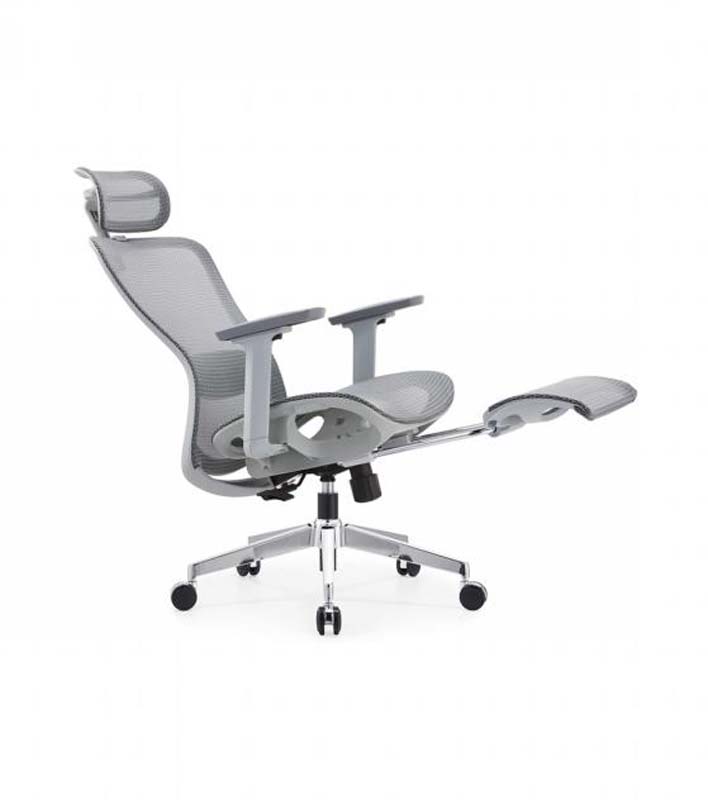

The Grey Mesh Reclining Ergonomic Office Chair with Headrest and Extending Leg Rest, model ERM-GRY-LR-01, is an unbranded high-back task chair designed for users who want seated support during focused work and a reclined rest position. Its neutral grey appearance gives it a practical, understated profile for professional interiors, while the tall back, separate headrest, arm supports, five-star base, and forward-extending leg rest create a complete workstation seating form. In the upright seated position, the chair measures 690 by 680 by 1260 millimetres, with a clear width of 540 millimetres between the armrests. The backrest uses grey breathable elastic mesh over a contoured, rigid light-grey polymer perimeter frame with an integrated lumbar curve. The lumbar support zone is 240 millimetres high, and backrest padding thickness is 70 millimetres. The seat combines a grey mesh or woven fabric surface with a moulded foam cushion; the finished cushion thickness is 90 millimetres and the foam density is 45 kilograms per cubic metre. Beneath the seat is an injection-moulded polymer pan with visible underside cut-outs. Armrests use light-grey height-positioned polymer supports with dark-grey padded top pads. The leg rest consists of a grey polymer padded support carried on polished chrome sliding steel rails. A synchronized mechanism allows the backrest to recline 135 degrees from upright while the rail-mounted leg rest extends 320 millimetres, supporting a relaxed break posture without leaving the chair. Pneumatic seat-height adjustment is operated by a side lever through an 80-millimetre gas-lift stroke, setting the seat height from 460 to 540 millimetres. The headrest offers 80 millimetres of height travel and 25 degrees of tilt adjustment for neck support. A 360-degree swivel seat, chrome-plated steel five-star base, steel gas lift, and five black 60-millimetre twin-wheel casters provide mobility and a polished base structure. This chair is appropriate for executive offices, knowledge-worker workstations, private offices, and quiet focus rooms where prolonged computer work is paired with the need for head support, recline, and leg support. It is specified for users from 1600 to 1900 millimetres in height, with a recommended user weight capacity of 150 kilograms. The chair weighs 21 kilograms net. Procurement planning should allow for two cartons per set, with a reference packaged gross weight of 23 kilograms and reference assembly time of 40 minutes. The reference carton dimensions are 850 by 420 by 720 millimetres, with a carton volume of 0.26 cubic metre per set. Buyers should also consider the recline and leg-rest extension clearance around desks and walls, the neutral grey finish against existing interiors, and the need to receive and assemble a multi-carton chair.
