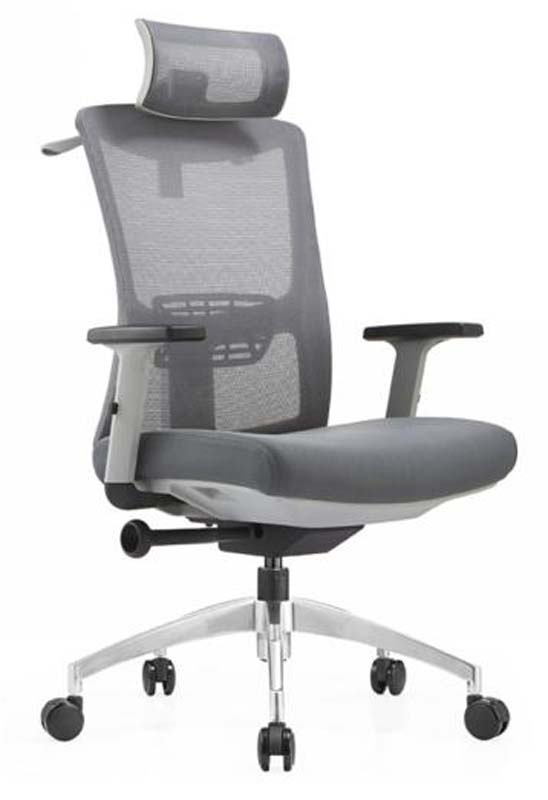

Product supplierHigh-Back Mesh Ergonomic Office Chair with Headrest, Grey flexible mesh over a contoured polymer outer frame
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 670 × 650 × 1290 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 18.5 kg | |
|---|---|---|
| Maximum user load | 150 kg | |
| Back dynamic load acceptance target | 136 kg | |
| Seat static load acceptance target | 950 N downward force | |
| Gas lift cycles | 100,000 height-adjustment cycles | |
| Caster rolling durability | 100,000 cycles on hard-floor test surface | |
| Seat foam density | 45 kg/m3 molded polyurethane | |
| Seat foam rebound | 40% | |
| Mesh back static tension target | 220 N distributed back load | |
| Warranty target | 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Backrest | Grey flexible mesh over a contoured polymer outer frame | |
|---|---|---|
| Seat cushion | Molded polyurethane foam with fixed grey woven upholstery | |
| Headrest | Curved mesh pad with polymer frame and support post | |
| Armrests | Silver-painted support uprights with black polymer arm pads | |
| Under-seat frame | Black steel and polymer mechanism housing with silver lower seat shell | |
| Base and lift | Polished five-star steel base, chrome telescopic lift, black twin-wheel casters |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Height adjustment | Pneumatic seat-height lift provides 100 mm travel through a side under-seat lever | |
|---|---|---|
| Recline and lock | Synchronized tilt mechanism reclines to 125 degrees and locks at 95, 105 and 115 degrees | |
| Head support | Height-adjustable curved headrest moves 80 mm and pivots 25 degrees for neck alignment | |
| Mobility | 360-degree swivel seat and five 60 mm twin-wheel casters enable movement on hard floors or low-pile carpet |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office workstation | Suitable for full-time computer work at executive desks, home offices and shared workstations due to headrest, mesh back and swivel mobility | |
|---|---|---|
| Meeting or manager room | Appropriate for task-oriented meeting rooms where users require recline support, padded arms and easy movement between desk positions |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1335-1 | Dimensional safety requirements for office task chairs, used to verify seat, back and clearance geometry | |
|---|---|---|
| EN 1335-2 | Safety requirements for office task chairs, including structural strength and stability | |
| EN 1335-3 | Test methods for office task chairs, suitable for procurement validation of tilt and base performance | |
| EN 1022 | Domestic and contract furniture stability test method, applicable to seated tipping assessment |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.1 | Office chairs standard for safety, durability, structural load, backrest, arm and base testing |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 10357.2 | Test method for furniture surface physical properties, applicable to painted metal and polymer contact surfaces | |
|---|---|---|
| GB/T 10357.3 | Strength and durability test method for chair seating, backrest and arm loading | |
| GB/T 28004 | Applicable specification framework for swivel office chairs, including stability, adjustment and durability |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 10357.2: Test method for furniture surface physical properties, applicable to painted metal and polymer contact surfaces; 2. GB/T 10357.3: Strength and durability test method for chair seating, backrest and arm loading; 3. GB/T 28004: Applicable specification framework for swivel office chairs, including stability, adjustment and durability; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
