Name: Black Mesh Ergonomic Office Chair with Headrest and Sliding Footrest
Brand: FENGGUAN
SKU: PUZGSQ

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 680 × 1320 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight	150 kg
Chair net weight	22 kg
Static base load reference	600 mm, polished aluminum base rated for a 700 kg verification load
Seat impact durability reference	100,000 cycles
Backrest cyclic load reference	120,000 cycles
Caster rolling durability reference	100,000 cycles
Seat mesh load distribution	150 kg user load distributed across flexible woven mesh and molded perimeter frame
Recline tension range	20degrees; published single value 20 degrees
Warranty target	5 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Back upholstery	Black flexible woven mesh tensioned over a black polymer outer frame
Seat upholstery	Black woven mesh over a contoured molded polymer seat pan
Headrest	Black mesh panel in a curved polymer frame with height-adjustable support bracket
Lumbar zone	Separate curved mesh lumbar panel integrated with the back support structure
Armrests	Hard black polymer pads on height-adjustable polymer support posts
Mechanism covers	Black molded polymer housing and levers around a steel synchro-tilt mechanism

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift with right-side lever, providing 80 mm travel from 460 to 540 mm
Recline system	Synchro-tilt mechanism with 20-degree maximum back recline and proportional seat tilt
Lumbar support	Curved independent mesh lumbar zone positioned to follow the lower back during recline
Arm adjustment	Height-adjustable arm pads at 240 mm above the seat, with flat pressure-distributing tops

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	880 x 660 x 360 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation	Suitable for desk-based staff requiring 8 hour seated work, with breathable mesh, headrest, lumbar zone, and sliding leg support
Commercial interiors	Suited to open offices, executive workstations, home offices, and task rooms where swivel mobility and adjustable support are required

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EMH-FR-BLK-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EMH-FR-BLK-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EMH-FR-BLK-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

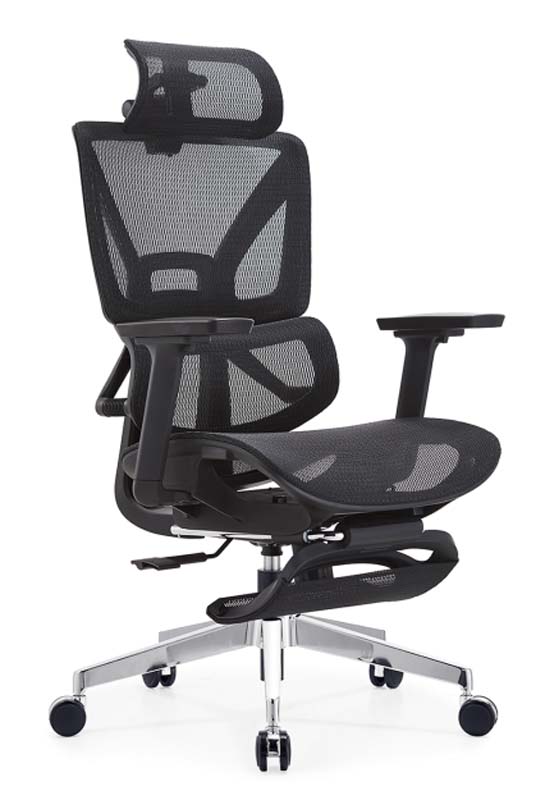

The FENGGUAN EMH-FR-BLK-01 is a black high-back ergonomic office chair designed for extended desk work. Its upright, layered silhouette combines a tall mesh back, separate curved lumbar panel, headrest, flat arm pads, and sliding footrest in a coordinated black finish. The chair measures 680 by 680 by 1320 mm overall, with 540 mm of clear width between the armrests. A polished aluminum base and twin-wheel casters give the piece a professional appearance while supporting swivel movement around a workstation. Breathable black flexible woven mesh is tensioned over a black polymer outer frame for the back, while the seat uses black woven mesh over a contoured molded polymer seat pan. The finished seat cushion is 90 mm thick, the backrest padding is 70 mm thick, and the lumbar support zone is 240 mm high. The headrest uses a black mesh panel in a curved polymer frame with a height-adjustable bracket. Hard black polymer arm pads mount on height-adjustable posts, and molded black polymer covers and levers enclose a steel synchro-tilt mechanism. The chair is built for users up to 150 kg and weighs 22 kg. Its polished aluminum base is rated for a 700 kg verification load. Durability references include 100,000 seat-impact cycles, 120,000 backrest cyclic-load cycles, and 100,000 caster-rolling cycles. For a 150 kg user load, the flexible woven seat mesh and molded perimeter frame distribute weight across the seating surface. Pneumatic seat-height adjustment is operated by a right-side lever, with 80 mm of travel from 460 to 540 mm seat height. The synchro-tilt mechanism allows a 20-degree maximum back recline with proportional seat tilt. The independent curved mesh lumbar zone is positioned to follow the lower back during recline, and the arm pads are height-adjustable to 240 mm above the seat with flat pressure-distributing tops. The sliding footrest adds leg support for users who want to recline during breaks or longer work sessions. This model is appropriate for desk-based staff requiring support during eight hours of seated work, as well as open offices, executive workstations, home offices, and task rooms where mobility and adjustable support are needed. Procurement teams should plan for one set packed in two cartons, with a packaged gross weight of 23 kg, reference carton volume of 0.26 cubic meters per set, and a reference assembly time of 40 minutes per set.
