PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	650 × 650 × 1140 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	135 kg
Net weight	16 kg
Seat foam density	45 kg/m3
Seat foam rebound	40%
Mesh back tensile validation	120 N per 50 mm strip
Base static load validation	1134 kg
Caster rolling durability	100000 cycles
Gas lift compression durability	100000 cycles
Seat sliding durability	100000 cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Gray woven flexible mesh over a contoured polymer support frame
Seat cushion	Orange woven fabric cover over 70 mm molded high-resilience foam
Seat support shell	Injection-molded polymer seat carrier with metal reinforcement plate
Armrest assemblies	Black polymer arm pads on silver painted metal or alloy upright supports
Central mechanism	Black steel tilt and seat-slide mechanism with multi-lever control
Base and casters	Polished aluminum alloy five-star base with black nylon twin-wheel casters

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic gas lift provides 100 mm height travel through the right-side under-seat lever
Back tilt and lock	Synchronized recline mechanism supports 18-degree rearward tilt and three lock positions
Seat depth adjustment	Under-seat paddle controls a 60 mm forward seat slide for thigh-depth fit
Recline Angle / Lock Reference	125° with 3suggested lock positions

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	680 x 650 x 430 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary workspace	Open-plan offices, workstation clusters, and home offices where users need swivel access, lumbar support, and height adjustment
Procurement configuration	Suitable for daily 8-hour desk work with desks 760 mm high and monitor-based computer tasks

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1 applicability	Use office-chair dimensional and safety terminology for seat, back, clearance, and adjustment checks.
EN 1335-2 applicability	Apply safety, structural strength, and stability test requirements to the chair before purchase.
EN 1335-3 applicability	Use mechanical test methods for backrest, armrest, base, gas lift, and caster validation.
EN 1021-1 applicability	Require cigarette-ignition smoldering test data for the orange seat upholstery and foam package.
EN 1021-2 applicability	Require match-flame ignition test data where public-area fire performance is specified.
EN 12528 applicability	Verify caster behavior on hard flooring, rolling resistance, and floor-protection performance.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1 applicability	Use back, seat, arm, base, stability, and fatigue tests for commercial task-chair acceptance.
ANSI/BIFMA X5.4 applicability	Apply lounge and public-office seating criteria only if the chair is procured for lounge use.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357.3 applicability	Apply back-strength and durability test methods to the backrest and frame during procurement inspection.
GB/T 10357.5 applicability	Apply coating and plated-layer tests to the polished base and painted arm supports.
GB/T 28004.2 applicability	Use office-chair safety, dimensional, and mechanical test requirements for contract acceptance.
GB 18584 applicability	Limit formaldehyde emission from any wood-based or laminated furniture components in the assembly.

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357.3 applicability: Apply back-strength and durability test methods to the backrest and frame during procurement inspection.;
2. GB/T 10357.5 applicability: Apply coating and plated-layer tests to the polished base and painted arm supports.;
3. GB/T 28004.2 applicability: Use office-chair safety, dimensional, and mechanical test requirements for contract acceptance.;
4. GB 18584 applicability: Limit formaldehyde emission from any wood-based or laminated furniture components in the assembly.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERC-MESH-ORG-520

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERC-MESH-ORG-520

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERC-MESH-ORG-520Open Export Tool

Quick Actions

Post an RFQ

Product Description

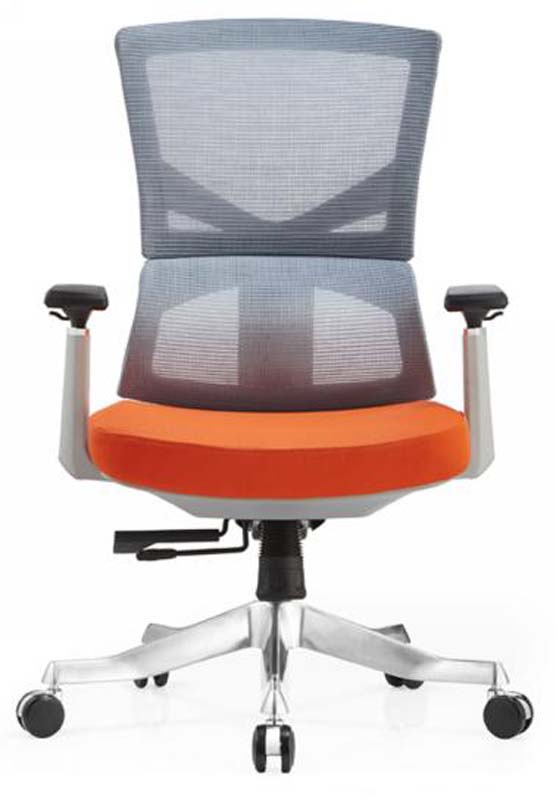

The Gray Mesh Ergonomic Task Chair with Orange Cushioned Seat, model ERC-MESH-ORG-520, offers a practical balance of supportive seating, mobile access, and understated visual contrast for modern work environments. Its gray mesh back creates a light, open profile, while the orange upholstered seat adds a distinct accent without making the chair visually dominant. The design is organized around a central swivel mechanism, contoured backrest, cushioned seat, paired armrests, and polished five-star base, giving the chair a familiar task-chair silhouette suited to individual workstations and shared desk areas. The backrest uses gray woven flexible mesh over a contoured polymer support frame, with a defined lumbar support zone and padded backrest construction. The seat combines an orange woven fabric cover with molded high-resilience foam set within an injection-molded polymer carrier reinforced by a metal plate. Armrests use black polymer pads supported by silver painted metal or alloy uprights. Beneath the seat, a black steel tilt and seat-slide mechanism provides multi-lever control, while the polished aluminum alloy five-star base is fitted with black nylon twin-wheel casters and a gas lift for height changes. Functionality is focused on adjustability for regular desk work. A right-side under-seat lever operates the pneumatic seat-height lift, and a separate under-seat paddle controls forward seat-slide adjustment to refine thigh support. The synchronized recline mechanism allows rearward tilt with lock positions, helping users shift posture during computer-based tasks. The swivel base and twin casters support easy turning and movement between nearby work surfaces. The chair also includes padded armrests and a spacious clearance between them, contributing to a comfortable seated layout. This model is suitable for open-plan offices, workstation clusters, and home offices where users require lumbar support, height adjustment, seat-depth adjustment, and swivel access. It is configured for daily desk use with standard-height desks and monitor-based work. Its neutral gray frame and orange seat can complement practical office interiors, collaborative floors, or residential workspaces that use accent color. For procurement, buyers should note the unbranded product status, two-carton packaging, per-set assembly time, and packaged gross weight. Planning should allow for receiving, movement to the workspace, and assembly. The specified weight capacity and structural validation values should be reviewed against intended user requirements, and purchasers should confirm finish consistency, replacement or warranty terms, caster suitability for the intended floor surface, and whether the adjustment features match the needs of the workforce.

Gray Mesh Ergonomic Task Chair with Orange Cushioned Seat Specifications
