PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	630 × 620 × 1040 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	136 kg
Net weight	13.5 kg
Seat foam density	40 kg/m3
Back frame static load target	680 N
Gas-lift class rating	Class 3
Base static load target	1130 kg
Caster rolling durability target	100,000 cycles
Seat sliding durability target	100,000 cycles
Recommended users per day	1
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support	Breathable red polymer mesh stretched over a contoured molded frame
Seat upholstery	Red woven or knit office fabric over molded foam padding
Seat cushion	Molded polyurethane foam with rounded waterfall front
Armrests	Integral red molded T-arm supports with flat contact pads
Central structure	Black tilt mechanism and 50 mm chrome gas lift with red telescopic cover
Five-star base	Red painted five-star base, likely nylon composite or steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift controlled by the visible right-side lever, providing a 100 mm adjustment span
Swivel movement	360-degree swivel around the central gas-lift axis
Tilt function	Synchronous or center-tilt mechanism activated by the visible paddle lever, with 12-degree rear recline
Tension control	Rotary black tension knob under the seat adjusts backward tilt resistance

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton gross weight	15.5 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan workstation	Suitable for daily individual desk work where breathability, compact footprint, and rolling mobility are required
Home office or study	Fits a single desk setup in residential workspaces requiring color-coordinated seating and swivel access

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OC-MESH-TARM-RED

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OC-MESH-TARM-RED

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OC-MESH-TARM-REDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

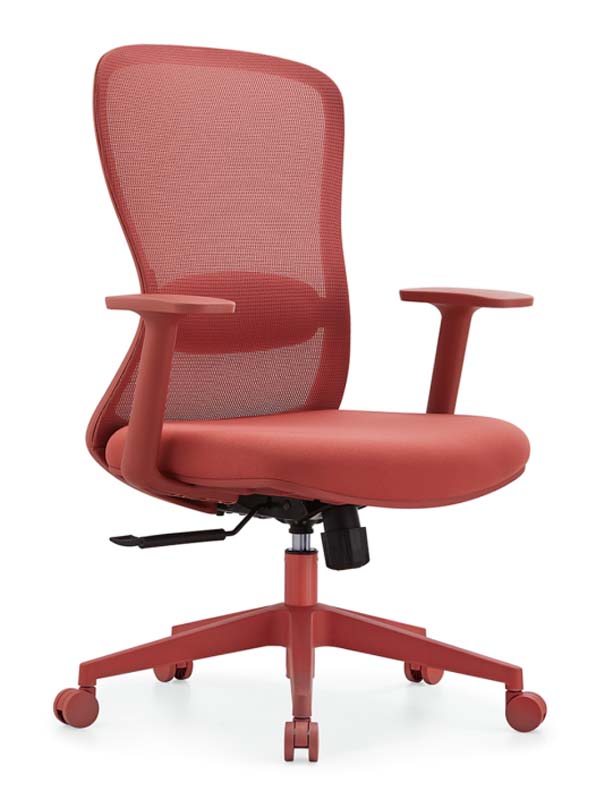

The Mid-Back Mesh Swivel Office Chair with Fixed T-Armrests, model OC-MESH-TARM-RED, is an unbranded task chair designed for practical daily desk use. Its coordinated red finish gives it a distinct visual identity, with a breathable red polymer mesh backrest stretched over a contoured molded frame. The mid-height back includes a defined lumbar support zone, while the padded seat uses molded polyurethane foam with a rounded waterfall front, upholstered in red woven or knit office fabric. Integrated fixed T-armrests match the red structure and provide flat contact pads. The black tilt mechanism, chrome gas lift, red telescopic cover, and red five-star base create a clear contrast between functional control components and the chair’s colored exterior. Its overall dimensions are 630 by 620 by 1040 mm, with 540 mm of clear width between the armrests. The seat cushion has a finished thickness of 90 mm, and the backrest padding thickness is 70 mm. Construction combines upholstered padding, mesh support, and a red painted metal or glass-filled nylon support structure. The five-star base may be nylon composite or steel, and twin-wheel casters support movement across typical office flooring. Under-seat components include a black tilt mechanism and a 50 mm Class 3 chrome gas lift. The chair supports a recommended user weight capacity of 136 kg and has a net weight of 13.5 kg. Seat foam density is specified at 40 kg/m3. For normal operation, the chair offers pneumatic height adjustment through a visible right-side lever, with a 100 mm adjustment span. It swivels 360 degrees around the central gas-lift axis, and its synchronous or center-tilt mechanism is activated by a visible paddle lever, allowing a 12-degree rear recline. A rotary black tension knob beneath the seat adjusts backward tilt resistance. Fixed armrests give consistent upper-body support without the added adjustment points of movable arms. This model is appropriate for open-plan workstations where individual desk work requires breathability, a compact footprint, and rolling mobility. It also suits a home office or study with a single desk setup, particularly where color-coordinated seating and easy swivel access are desired. Procurement planning should account for assembly and delivery details: each set is supplied in two cartons, with a reference assembly time of 40 minutes. Reference packaged gross weight is 23 kg per set, and reference carton volume is 0.26 cubic meters per set. Buyers should also verify floor and caster compatibility, confirm the preferred base material option, and consider the fixed arm height and red aesthetic in relation to existing workstations and interiors.

Mid-Back Mesh Swivel Office Chair with Fixed T-Armrests Specifications
