PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	630 × 620 × 1010 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	120 kg
Net weight	13.5 kg
Backrest static load reference	136 kg
Seat impact durability reference	100000 cycles
Caster rolling durability reference	100000 cycles
Gas lift cycles reference	100000 cycles
Recommended user height range	1850 mm
Seat foam density	45 kg/m3
Seat foam rebound	40%
Fabric abrasion acceptance target	50000 Martindale cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Grey flexible mesh stretched within a polymer outer frame
Seat upholstery	Grey woven fabric over contoured foam
Seat cushion	70 mm molded polyurethane foam, 45 kg/m3 density target
Back frame	Light-grey injection-molded polymer frame with integrated side bolsters
Lumbar support	Padded polymer lumbar pad attached across the mesh back
Armrests	Fixed light-grey polymer T-arms with flat grey contact pads

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift with 100 mm travel controlled by the visible right-side lever
Swivel function	360-degree swivel around the central gas lift
Back tilt	Synchronized recline mechanism with 12-degree rearward tilt and tension adjustment
Tilt lock	Single-position lock at upright working posture through the under-seat mechanism

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	660 x 360 x 630 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan and private office workstations	Suits desks 760 mm high where a compact 630 mm wide chair and rolling base are required.
Hot-desk and meeting-room seating	Swivel seat, fixed arms and twin casters support frequent turn-taking and short-duration movement.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OC-MESH-GRY-FA5

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OC-MESH-GRY-FA5

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OC-MESH-GRY-FA5Open Export Tool

Quick Actions

Post an RFQ

Product Description

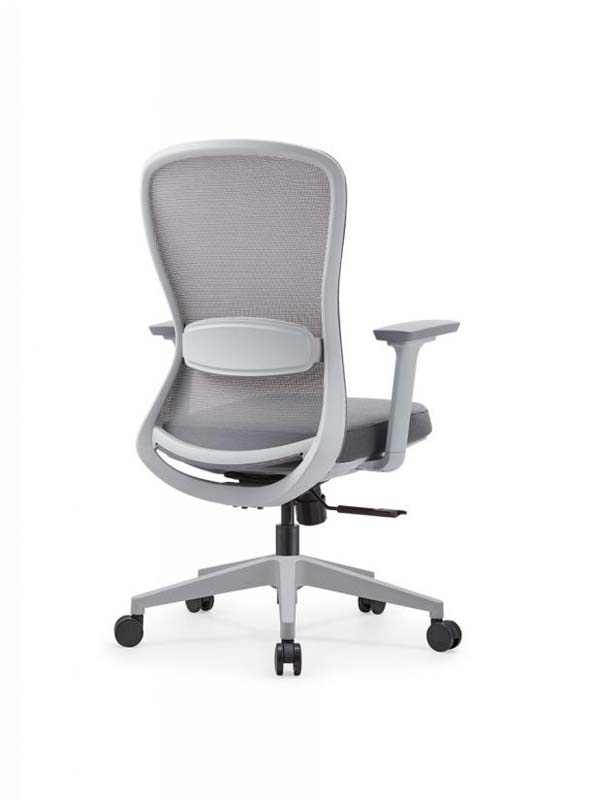

The OC-MESH-GRY-FA5 is an unbranded mid-back mesh swivel task chair designed for practical daily office use. Its coordinated grey finish gives the chair a clean, understated appearance, while the five-star caster base creates a familiar mobile task-chair silhouette suited to both individual workstations and shared work areas. Visually, the chair features a grey flexible mesh back stretched within a light-grey injection-molded polymer outer frame with integrated side bolsters. A padded polymer lumbar pad is attached across the mesh back, providing a defined support zone without enclosing the backrest. The seat is upholstered in grey woven fabric over contoured molded polyurethane foam, with a finished cushion thickness of 90 mm. Fixed light-grey polymer T-arms with flat grey contact pads frame the seat and offer a clear armrest width of 540 mm. The central gas lift and under-seat mechanism use black painted steel, contrasting with the light-grey frame and supporting the nylon five-star base fitted with twin-wheel casters. Functionality is centered on adjustable, movement-friendly task seating. A right-side lever operates the pneumatic seat-height lift, which provides 100 mm of travel. The seat rotates 360 degrees around the central gas lift, and the synchronized recline mechanism allows 12 degrees of rearward tilt with tension adjustment. An under-seat control also provides a single-position tilt lock for maintaining an upright working posture. The chair has an overall footprint of 630 by 620 mm and an overall height of 1010 mm, with a recommended user weight capacity of 120 kg and suitability for users up to 1850 mm in height. Durability references include 100000 cycles for seat impact, caster rolling and gas-lift use, along with a 136 kg backrest static load reference. This model is appropriate for open-plan and private office workstations, particularly desks 760 mm high where a compact rolling chair is required. Its swivel, fixed arms and twin casters also make it suitable for hot-desk settings, meeting rooms and other environments involving frequent turn-taking or short-distance movement. It can equally serve residential desks, study areas and home offices where a straightforward commercial-style task chair is preferred. For procurement planning, the chair is supplied as one set across two cartons, with a packaged gross weight reference of 23 kg per set and a carton volume reference of 0.26 cubic meter per set. Buyers should allow 40 minutes per set for assembly and should confirm storage, receiving and installation logistics for the two-carton packaging. Fixed arms should be assessed against desk clearance and user access needs, while the grey mesh-and-fabric specification should be reviewed against interior finishes and maintenance expectations.
