PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	650 × 630 × 1070 mm
Overall chair footprint	650 x 630 x 1070 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	120 kg
Net weight	15.5 kg
Seat foam density	45 kg/m3
Seat foam indentation hardness	65 kgf
Back mesh tensile strength reference	450 N per 50 mm
Fabric abrasion acceptance	50,000 Martindale cycles
Seat static-load acceptance	102 kg
Back static-load acceptance	68 kg
Caster rolling durability acceptance	100,000 cycles
Gas-lift service class	Class 4

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest	Light gray molded polymer outer frame with light beige flexible mesh insert
Lumbar support	Padded-looking light gray polymer lumbar band mounted across the lower back
Seat cushion	Orange woven fabric over a 70 mm molded foam cushion
Seat inner support	Molded plywood or polymer seat board with steel mounting plate
Armrests	Light gray polymer T-shaped arm pads and vertical support posts
Synchronous mechanism	Black painted steel tilt mechanism with side tension or lock lever

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic gas lift raises the seat through a 100 mm travel from 440 to 540 mm
Swivel movement	360-degree swivel around the central gas-lift axis
Recline movement	Backrest reclines through a 12-degree tilt with synchronized seat movement
Tilt tension and lock	Side lever and rotary knob provide tilt lock and resistance adjustment for users up to 120 kg

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan and private office workstations	Suited to daily computer work with swivel mobility, lumbar support and 540 mm maximum seat height.
Meeting and hot-desk areas	Neutral gray frame with orange seat provides a visible color accent while the caster base supports quick repositioning.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ETC-MESH-OR-550

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ETC-MESH-OR-550

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ETC-MESH-OR-550Open Export Tool

Quick Actions

Post an RFQ

Product Description

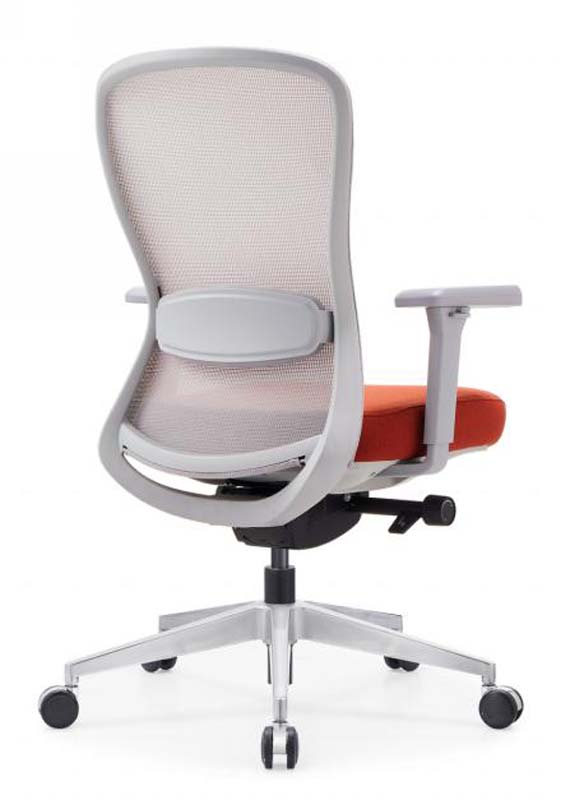

The Mesh Back Ergonomic Task Chair with Orange Upholstered Seat is a mid-back office seating solution supplied under model ETC-MESH-OR-550 without a consumer-facing brand. Its appearance combines a light gray molded polymer outer back frame, a light beige flexible mesh insert, and a contrasting orange woven-fabric seat. A padded-looking light gray polymer lumbar band crosses the lower back, while matching T-shaped polymer arm pads and vertical support posts continue the frame’s neutral finish. The chair is built around a five-star aluminum-alloy base, nylon twin casters, a central gas lift, and a black painted steel synchronous tilt mechanism. Its overall footprint is 650 x 630 x 1070 mm, with 540 mm of clear width between the armrests. The seat presents a 90 mm finished cushion over a 70 mm molded foam cushion supported by a molded plywood or polymer seat board and steel mounting plate. Construction is intended to balance controlled support, breathability through the mesh back, and a distinct upholstered color accent. Practical adjustment centers on a pneumatic gas lift that moves the seat through 100 mm of travel, from 440 to 540 mm high. The seat rotates through a full 360 degrees around the central axis, and the backrest reclines through 12 degrees with synchronized seat movement. A side lever and rotary knob control tilt lock and resistance, allowing the mechanism to be set to the user’s preference up to the recommended user weight capacity of 120 kg. The 240 mm lumbar support zone and padded armrests support routine computer-based work, while the caster base assists movement between desk tasks and nearby work surfaces. The chair is well suited to open-plan workstations, private offices, meeting rooms, and hot-desking areas. In neutral office interiors, the gray frame and mesh keep the visual profile understated, while the orange seat creates a recognizable accent for collaborative or flexible spaces. Its swivel and mobile base make repositioning straightforward in shared environments, and its ergonomic features support daily task use. Buyers should plan for assembly from two cartons per set, with a reference assembly time of 40 minutes. Packaged gross weight is 23 kg per set and carton volume is 0.26 cubic meters per set, useful factors for receiving, storage, and bulk transport planning. Material references include 45 kg/m3 seat foam, 65 kgf indentation hardness, a back mesh tensile reference of 450 N per 50 mm, and fabric abrasion acceptance of 50,000 Martindale cycles. Procurement teams should also review seat-height range, armrest width, visual coordination, assembly resources, and freight quantities when specifying the chair for multiple workstations.

Mesh Back Ergonomic Task Chair with Orange Upholstered Seat Specifications
