PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 680 × 1280 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Net weight	18 kg
Static seat verification load	660 kg
Caster rolling durability	100000 cycles
Seat height adjustment cycles	100000 cycles
Backrest cyclic durability	120000 cycles
Fabric abrasion resistance	50000 Martindale cycles
Seat foam density	45 kg/m3
Seat foam rebound	40%
Recommended user height range	1900 mm

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest	Breathable grey woven mesh stretched over a curved polymer or painted-metal perimeter frame
Seat cushion	Grey fabric upholstery over 80 mm molded foam with a polymer load-bearing shell
Headrest	Curved grey mesh pad with a central support bracket and padded front surface
Armrests	Flat padded arm caps mounted on light-grey vertical posts with black joint hardware
Seat mechanism	Black tilt mechanism with side operating lever and tension control under the seat
Gas lift	Black telescoping gas column with 50 mm outer diameter and 100 mm travel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift operated by the visible side lever, with 100 mm travel from 450 to 550 mm
Recline and lock	Synchro-tilt mechanism allows 23-degree back travel from 95 to 118 degrees with multi-position lock
Tension control	Rear rotary tension knob adjusts recline resistance for user body weight up to 150 kg
Swivel movement	360-degree swivel seat supported by the central gas-lift bearing and five-star base

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office workstations	Suitable for individual 8-hour desk work because the high mesh back, headrest and padded armrests support seated posture during computer tasks
Home office and executive workroom	Fits a 680 mm footprint and grey neutral finish for professional work-from-home or management seating

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture safety and strength applicability	EN 1335
Office chair structural testing applicability	EN 1335
Office chair surface stability applicability	EN 1335

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Office chair safety and durability applicability	ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Office chair safety and structural applicability	GB/T 10357.2
Furniture coating applicability	GB/T 4893.4
Textile safety applicability	GB 18401
Furniture indoor air applicability	GB/T 33243section 5.2

Standardized tender description text

This product must meet the following technical requirements:
1. Office chair safety and structural applicability: GB/T 10357.2;
2. Furniture coating applicability: GB/T 4893.4;
3. Textile safety applicability: GB 18401;
4. Furniture indoor air applicability: GB/T 33243section 5.2;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERG-MESH-HB-GRY-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERG-MESH-HB-GRY-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERG-MESH-HB-GRY-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

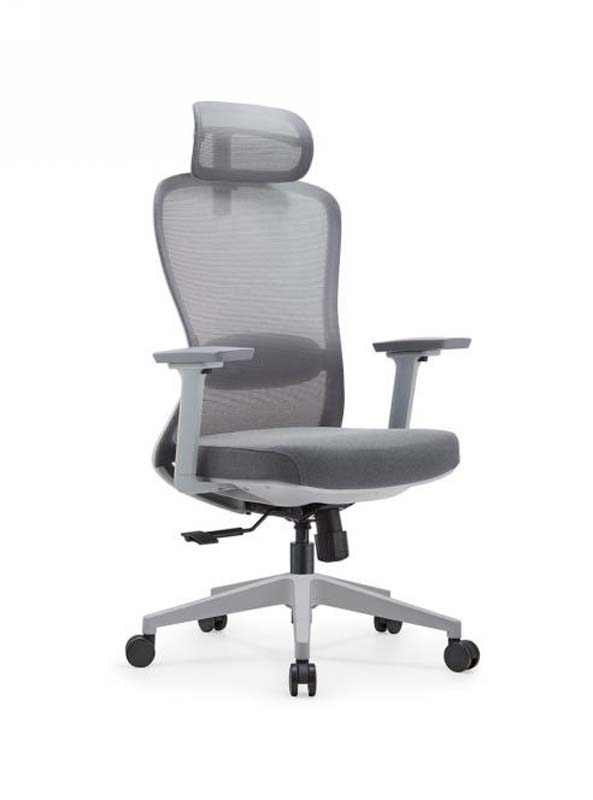

The High-Back Mesh Ergonomic Office Chair with Headrest, model ERG-MESH-HB-GRY-01, presents a professional seating solution in a neutral grey finish. Its tall woven mesh backrest follows a curved profile, topped by a matching curved mesh headrest with a padded front surface and central support bracket. The chair uses a flat fabric seat, padded arm caps on light-grey vertical posts with black joint hardware, and a central black gas column leading to a five-star base with twin-wheel casters. The overall form balances open, breathable backing with softer contact surfaces, giving it a functional appearance suited to focused desk settings. Construction centers on a breathable grey mesh back and headrest stretched over a curved polymer or painted-metal perimeter frame. The seat uses grey fabric upholstery over molded foam with a polymer load-bearing shell, while the frame may be painted metal or nylon according to the supplied specification. A black tilt mechanism, side operating lever, under-seat tension control, telescoping gas lift, and caster base complete the structure. The chair has a 90 mm finished seat cushion, 70 mm backrest padding thickness, a 240 mm lumbar support zone, and 540 mm clear width between armrests. Practical adjustment is built around daily workstation use. The visible side lever operates pneumatic seat-height adjustment, with 100 mm travel covering seat heights from 450 to 550 mm. A synchro-tilt mechanism provides 23 degrees of back travel from 95 to 118 degrees and includes multi-position lock, while a rear rotary tension knob adjusts recline resistance for users up to 150 kg. The seat also swivels 360 degrees, supported by the central gas-lift bearing and five-star base. These features support posture changes during computer work and allow the chair to be adapted to different desk and user preferences. The model is suitable for open-plan office workstations where individuals spend full workdays at desks, as the high mesh back, headrest, and padded armrests provide support during prolonged computer tasks. Its grey finish and compact 680 mm footprint also make it appropriate for home offices, executive workrooms, and professional work-from-home spaces where management-level appearance and residential compatibility are both required. Procurement teams should note that the unbranded chair ships as one set in two cartons, with a packaged gross weight of 23 kg and a reference assembly time of 40 minutes per set. The reference carton dimensions are 850 by 420 by 720 mm, with total carton volume of 0.26 cubic meters per set. The specification also indicates 135 sets can be loaded in a 20GP container at 85 percent space utilization, useful for volume planning. The chair has a net weight of 18 kg and a recommended user weight capacity of 150 kg. Buyers specifying long-life commercial seating can review the documented static seat verification load, caster rolling durability, seat-height adjustment cycles, backrest cyclic durability, and fabric abrasion resistance before matching the product to intended office or residential use.

High-Back Mesh Ergonomic Office Chair with Headrest Specifications
