PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	620 × 620 × 1010 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	120 kg
Net weight	12.5 kg
Static seat verification load	500 kg
Caster rolling durability	100000 cycles
Gas lift cyclic durability	100000 cycles
Backrest dynamic load endurance	120000 cycles
Seat foam density	35 kg/m3
Foam rebound rate	40%
Fabric abrasion resistance	50000 Martindale cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest fabric	Black flexible woven mesh stretched over a curved polymer back frame
Seat upholstery	Black woven fabric over contoured foam cushion
Cushion foam	Molded polyurethane foam with 60 mm front-edge thickness
Armrests	Integrated black polymer loop arms connected to the seat-back support
Back support frame	Black glass-fiber-reinforced nylon or polymer side frame
Gas lift	Chrome-plated steel telescoping gas lift with 50 mm outer tube

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift with 100 mm stroke controlled by the visible right-side lever
Tilt movement	Synchro-style seat and back tilt with 12-degree rearward recline
Tilt lock	Multi-position lockable tilt mechanism actuated by the lower paddle lever
Tilt tension	Rotary tension knob under the seat adjusts resistance for 60 to 120 kg users

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	650 x 600 x 360 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Workstation use	Suitable for open-plan offices, home offices, and hot-desking areas where a compact 620 mm-wide swivel task chair is required
Meeting and study use	Suitable for conference rooms, training stations, and study desks needing 4 to 8 hours of general-purpose seating

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1:2020 applicability	Recommended European office-chair standard for dimensions and product classification
EN 1335-2:2018 applicability	Recommended European safety, strength, and durability requirements for office chairs
EN 1335-3:2020 applicability	Recommended European test methods for office chair safety and durability

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017 applicability	Recommended North American office-chair standard for strength, durability, stability, and cyclic testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357.2 applicability	Recommended furniture stability test method for chairs and stools
GB/T 10357.3 applicability	Recommended strength and durability test method for chair seats and backs

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357.2 applicability: Recommended furniture stability test method for chairs and stools;
2. GB/T 10357.3 applicability: Recommended strength and durability test method for chair seats and backs;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · TSK-MB-MESH-BLK-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · TSK-MB-MESH-BLK-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · TSK-MB-MESH-BLK-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

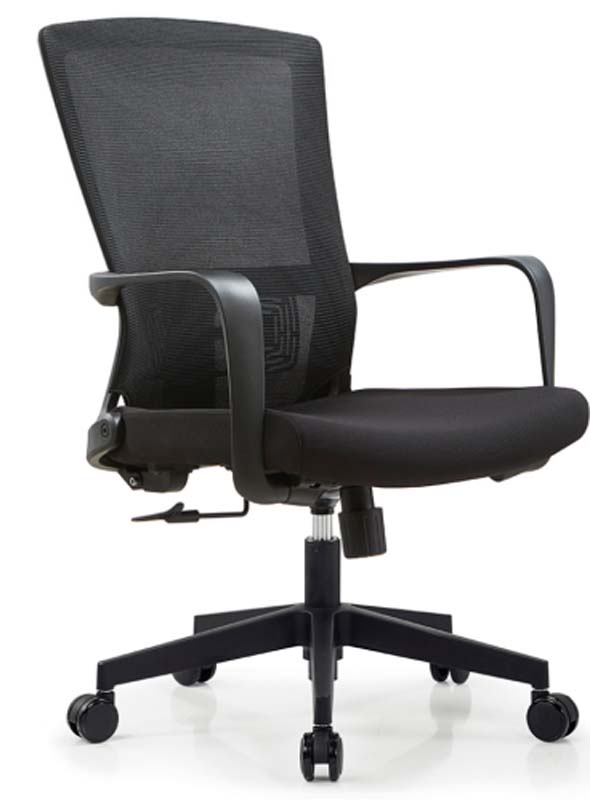

The Black Mesh Mid-Back Swivel Task Chair is an unbranded office chair designed for general-purpose workstation, meeting, and study seating. Its compact footprint and black finish give it a practical, understated appearance that integrates easily with a broad range of desk layouts and interior schemes. The chair features a mid-height back with black flexible woven mesh stretched over a curved polymer frame. The mesh back is supported by a black glass-fiber-reinforced nylon or polymer side frame and includes a defined lumbar support zone. The seat is upholstered in black woven fabric over a contoured molded polyurethane foam cushion. Fixed black polymer loop armrests are integrated with the seat-back support, giving the chair a continuous visual profile while providing a defined arm rest. A five-star nylon base, chrome-plated telescoping gas lift, and twin-wheel casters complete the swivel chair configuration. Functionally, the chair supports everyday office movement and posture changes. A visible right-side lever operates the pneumatic seat-height lift, while a lower paddle lever controls the multi-position lockable tilt mechanism. The synchro-style seat and back tilt allows a controlled rearward recline, and a rotary tension knob beneath the seat lets users adjust resistance according to body weight. The twin-wheel casters enable movement across typical chair-friendly flooring, and the swivel base supports turning between work zones. This model is suitable for open-plan offices, home offices, and hot-desking areas where a compact swivel task chair is required. It is also appropriate for conference rooms, training stations, and study desks used for general-purpose seating through a standard workday. Buyers should consider the fixed armrest design and mid-back support when matching the chair to specific users, desk styles, and task requirements. The listed recommended user weight capacity should be respected, and seating intended for prolonged or specialized use should be evaluated against user needs. For procurement planning, the chair is supplied as one set across two cartons, with assembly required and a packaged gross weight of 23 kg per set. Receiving teams should allow time for unpacking, component checking, assembly, and final caster and adjustment inspection. The model number is TSK-MB-MESH-BLK-01.

Black Mesh Mid-Back Swivel Task Chair Specifications
