PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	670 × 670 × 1090 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	136 kg
Static backrest proof load	680 N
Seat static proof load	1600 N
Caster rolling durability	100,000 cycles
Gas-lift cycles	100,000 height-adjustment cycles
Back-rest cyclic durability	120,000 recline cycles
Net chair weight	16.5 kg
Recommended user height range	1900 mm
Seat weight distribution area	0.235 square meters
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Back upholstery	Gray polyester mesh with open woven structure over a framed curved back carrier
Seat upholstery	Gray woven mesh or mesh-faced flexible seat carrier with molded edge support
Lumbar zone	Integrated curved padded lumbar section behind matching gray mesh
Arm pads	Rigid molded polymer top pads with matte gray finish
Arm supports	Light gray painted metal or aluminum uprights with polymer adjustment housings
Seat shell and mechanism cover	Gray molded polymer seat shell with black under-seat control housing

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift raises the seat from 450 to 540 mm through a side actuating lever.
Recline control	Under-seat synchronized tilt allows a 24-degree back movement from 94 to 118 degrees with tension adjustment.
Armrest adjustment	Height-adjustable arm pads provide 70 mm vertical travel for keyboard and reading positions.
Swivel and mobility	360-degree swivel seat and five 60 mm twin casters enable movement around standard workstations.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office workstation	Suited to daily computer work because the breathable mesh back, adjustable arms, and 540 mm seat height fit standard desks.
Home office or shared meeting space	Neutral gray finish and swivel caster base fit individual desks, hot desks, and compact study areas.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1 office seating dimensions	Use dimensional safety, adjustment, and fit criteria for task office chairs.
EN 1335-2 office seating safety	Use structural safety requirements including stability, strength, and castor behavior.
EN 1335-3 office seating test methods	Use standardized test methods for seat, back, arm, gas lift, and base verification.
EN 1022 seating stability	Use stability test procedure for forward, rearward, and lateral loading checks.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1 office chairs	Use the commercial office chair standard for static, dynamic, impact, arm, caster, and life-cycle acceptance.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357.3 furniture mechanical testing	Use seat and back strength/durability test methods as the acceptance framework for office seating.
GB 28007 furniture safety	Use children’s furniture edge and tip-related safety principles only where the chair is specified for child-use areas.

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357.3 furniture mechanical testing: Use seat and back strength/durability test methods as the acceptance framework for office seating.;
2. GB 28007 furniture safety: Use children’s furniture edge and tip-related safety principles only where the chair is specified for child-use areas.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EM-OC-GRY-MESH-ADJ-ARM

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EM-OC-GRY-MESH-ADJ-ARM

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EM-OC-GRY-MESH-ADJ-ARMOpen Export Tool

Quick Actions

Post an RFQ

Product Description

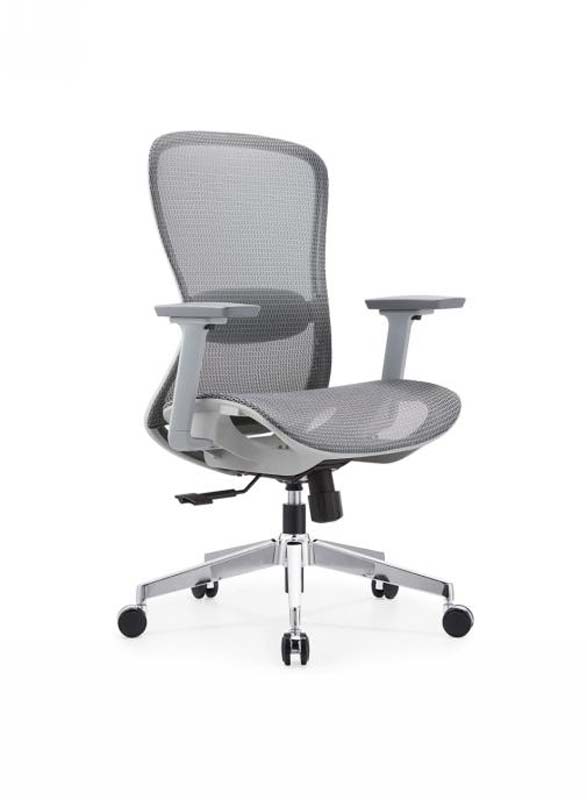

The Gray Mesh Ergonomic Office Chair is a high-back task seating solution with a clean, neutral appearance suited to professional and domestic workspaces. Its open gray mesh back follows a framed curved carrier, while the matching mesh-faced seat is supported by a molded edge and gray polymer shell. A curved padded lumbar section sits behind the back mesh, providing a defined support zone without interrupting the chair’s streamlined look. Matte molded arm pads, light gray painted aluminum uprights, a polished aluminum five-star base, and black twin-wheel casters complete the visual composition. Between the armrests, the clear width is 540 mm; the seat cushion is 90 mm thick and the backrest padding is 70 mm thick. The lumbar support zone is 240 mm high. Construction combines breathable polyester mesh, molded polymer components, painted and polished aluminum, a steel gas lift, and black nylon casters. These materials give the chair a lightweight commercial feel, with a net weight of 16.5 kg, while the polished five-star base provides a structured foundation. The chair is rated for a recommended user weight of 136 kg. Its static test ratings include a 680 N backrest proof load and a 1600 N seat proof load. Durability references include 100,000 caster rolling cycles, 100,000 gas-lift height-adjustment cycles, and 120,000 recline cycles. Functional adjustment is centered on routine office comfort. A side lever operates the pneumatic seat-height lift, which adjusts from 450 to 540 mm. The under-seat synchronized tilt mechanism allows the backrest to move through 24 degrees, from 94 to 118 degrees, and includes tension adjustment. The arm pads offer 70 mm of vertical travel, helping users align support for keyboard work or reading. A 360-degree swivel seat and five 60 mm twin casters support easy movement around standard workstations. This model is appropriate for open-plan office desks, home offices, hot desks, shared meeting spaces, and compact study areas. Its gray finish coordinates with restrained commercial interiors, while the breathable back and adjustable features support daily computer use. Buyers should note that the unbranded chair is supplied as one set in two cartons, with a packaged gross weight of 23 kg and a reference assembly time of 40 minutes. Carton dimensions are 850 by 420 by 720 mm, with 0.26 cubic meters per set, making the packaging details useful for receiving, storage, and freight planning.

Gray Mesh Ergonomic Office Chair with Height-Adjustable Arms and Polished Aluminum Base Specifications
