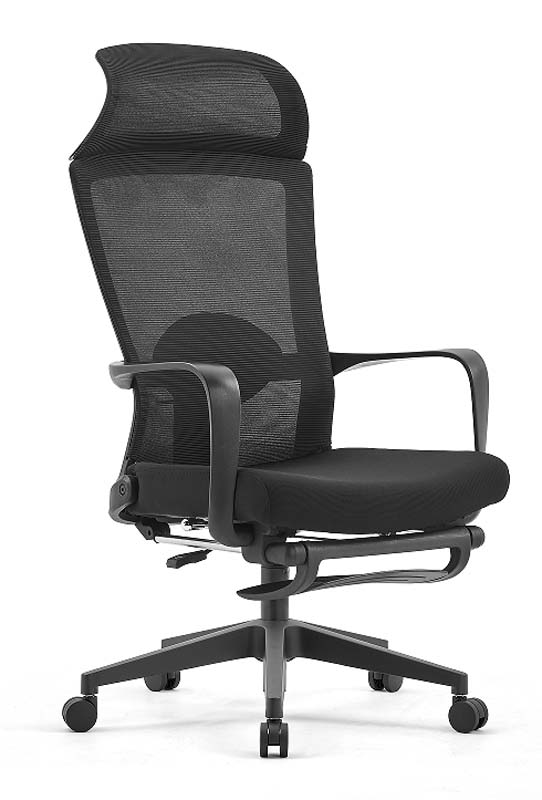

High-Back Mesh Executive Ergonomic Office Chair with Headrest and Footrest (model HB-MESH-FT-01) is listed under Mesh Office Chair. Dimensions: 670 × 700 × 1290 mm. Materials: Black flexible mesh stretched over a framed high-back structure, providing visible ventilated support; exact yarn and mesh density require supplier BOM confirmation.. Load capacity: 200 kg. Product Features: black,high-back,mesh-back,headrest,integrated,footrest,swivel,lumbar,support,five-star,base,twin-wheel,casters. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | FENGGUAN | Model | HB-MESH-FT-01 |
| Overall dimensions (W × D × H) | 670 × 700 × 1290 mm | Finished Seat Cushion Thickness | 90 mm |
| Backrest Padding Thickness | 70 mm | Lumbar Support Zone Height | 240 mm |
| Clear Width Between Armrests | 540 mm | Net weight | 18.5 kg |
| Recommended user weight capacity | 150 kg | Back tilt angle | 135 degrees |
| Seat height travel | 80 mm | Backrest static load acceptance target | 200 kg |
| Caster rolling durability target | 100000 cycles | Gas-lift durability target | 100000 height cycles |
| Recommended daily user duration | 8 hours | Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
| Back Foam Density Reference | 38 kg/m³ | Backrest upholstery | Black flexible mesh stretched over a framed high-back structure, providing visible ventilated support; exact yarn and mesh density require supplier BOM confirmation. |
| Seat cushion | Black fabric-covered molded foam seat with a 70 mm target cushion thickness and rounded waterfall front; foam grade is not visibly marked. | Seat foam specification | Molded polyurethane foam with a target density of 45 kg/m3 and 40 percent ball rebound for office seating validation. |
| Frame and back support | Black molded polymer outer frame over an internal steel back-support frame; frame thickness and coating require supplier BOM confirmation. | Armrests | Fixed loop-style black polymer arm pads and supports bolted to the seat mechanism, with no visible height- or width-adjustment controls. |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | Height adjustment | Pneumatic seat-height adjustment provides 80 mm travel through an under-seat lever and swivels 360 degrees around the central gas lift. |
| Recline mechanism | Synchro-style tilt mechanism supports a 135-degree maximum back angle with an under-seat tension lever; visible image does not confirm multi-position lock count. | Leg rest | A pull-out footrest rail is mounted under the seat and extends forward for reclined leg support; exact extension travel is not printed on the product. |
| Mobility and support | Five 60 mm twin-wheel casters on a 680 mm steel base provide rolling mobility, while the contoured mesh back gives fixed lumbar and neck support. | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Carton Dimensions | 850× 420× 720 mm |
| Reference Packaged Gross Weight | 23 kg/set | Reference Carton Volume | 0.26 m³/set |
| Indicative 20GP Loading | 135 sets at 85% space utilization | Executive and office workstation use | Suitable for managerial desks, private offices, and full-shift computer work where head, lumbar, arm, and leg support are required. |
| Reclined short-break seating | The high back, headrest, and pull-out footrest support temporary reclining during breaks in an office or study room. | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 670 × 700 × 1290 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 18.5 kg | |
|---|---|---|
| Recommended user weight capacity | 150 kg | |
| Back tilt angle | 135 degrees | |
| Seat height travel | 80 mm | |
| Backrest static load acceptance target | 200 kg | |
| Caster rolling durability target | 100000 cycles | |
| Gas-lift durability target | 100000 height cycles | |
| Recommended daily user duration | 8 hours | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Backrest upholstery | Black flexible mesh stretched over a framed high-back structure, providing visible ventilated support; exact yarn and mesh density require supplier BOM confirmation. | |
|---|---|---|
| Seat cushion | Black fabric-covered molded foam seat with a 70 mm target cushion thickness and rounded waterfall front; foam grade is not visibly marked. | |
| Seat foam specification | Molded polyurethane foam with a target density of 45 kg/m3 and 40 percent ball rebound for office seating validation. | |
| Frame and back support | Black molded polymer outer frame over an internal steel back-support frame; frame thickness and coating require supplier BOM confirmation. | |
| Armrests | Fixed loop-style black polymer arm pads and supports bolted to the seat mechanism, with no visible height- or width-adjustment controls. | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Height adjustment | Pneumatic seat-height adjustment provides 80 mm travel through an under-seat lever and swivels 360 degrees around the central gas lift. | |
|---|---|---|
| Recline mechanism | Synchro-style tilt mechanism supports a 135-degree maximum back angle with an under-seat tension lever; visible image does not confirm multi-position lock count. | |
| Leg rest | A pull-out footrest rail is mounted under the seat and extends forward for reclined leg support; exact extension travel is not printed on the product. | |
| Mobility and support | Five 60 mm twin-wheel casters on a 680 mm steel base provide rolling mobility, while the contoured mesh back gives fixed lumbar and neck support. |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive and office workstation use | Suitable for managerial desks, private offices, and full-shift computer work where head, lumbar, arm, and leg support are required. | |
|---|---|---|
| Reclined short-break seating | The high back, headrest, and pull-out footrest support temporary reclining during breaks in an office or study room. |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.1 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
