PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	650 × 650 × 1290 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Static seat verification load	680 kg
Caster rolling durability target	100000 cycles
Gas-lift cycle durability target	100000 height-adjustment cycles
Seat-back tilt durability target	300000 cycles
Armrest vertical load target	45 kg per arm
Suggested user height range	165 to 190 cm
Net weight reference	18 kg
Color option count	2 colors
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest and headrest fabric	Breathable dark-gray woven mesh tensioned over a framed polymer back structure
Seat upholstery	Dark-gray fabric-faced cushion over molded foam and a polymer load-bearing seat shell
Seat foam	70 mm molded polyurethane comfort foam with density target 45 kg/m3 and rebound target 40%
Frame and back supports	Light-gray molded polymer frame with integrated side supports and lumbar carrier
Armrests	Height-adjustable polymer posts with padded polymer arm caps and visible side release control
Base and lift	Light-gray nylon five-star base, chrome-plated steel gas lift, and black telescopic trim

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift operated by the right-side lever, with a 90 mm public lift value and 360-degree swivel
Backrest recline	Synchro-style tilt mechanism with 125-degree maximum back angle and seat-back synchronized movement
Lumbar support	Separate curved lumbar carrier follows the lower back and uses a side knob for depth or tension adjustment
Armrest adjustment	Height-adjustable armrests with side release button and fixed-width padded arm caps; 80 mm adjustment travel is the procurement value

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton count	1 flat-packed carton
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation use	Suited to individual desks and open-plan workstations where mesh ventilation, lumbar support, and swivel mobility are required for full-day task work
Meeting and home-office use	Appropriate for conference rooms, manager offices, and home offices because the high back, headrest, armrests, and casters support long meetings and computer work

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1 office chair dimensions	Applies to dimensional suitability and seated-space verification for office task seating
EN 1335-2 safety requirements	Applies to structural safety, stability, and caster-related office-chair acceptance checks
EN 1335-3 test methods	Applies to laboratory verification of strength, durability, and mechanism performance
EN 1022 seating stability	Applies to front, rear, and lateral overturning verification on the five-star mobile base

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1 office chairs	Applies to back, seat, base, arm, caster, and tilt-mechanism performance verification
BIFMA X5.1 caster durability test	Applies to 100000-cycle rolling durability when specifying hard-floor casters

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357.2 furniture mechanical test	Applies to chair stability and floor-contact safety verification during procurement testing
GB/T 10357.3 furniture strength/durability	Applies to seat and back static, impact, and fatigue verification for office seating
GB/T 28004.1 office chair guidance	Applies to general office-chair safety, dimensional, and ergonomic purchasing checks

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357.2 furniture mechanical test: Applies to chair stability and floor-contact safety verification during procurement testing;
2. GB/T 10357.3 furniture strength/durability: Applies to seat and back static, impact, and fatigue verification for office seating;
3. GB/T 28004.1 office chair guidance: Applies to general office-chair safety, dimensional, and ergonomic purchasing checks;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERG-MESH-HB-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERG-MESH-HB-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERG-MESH-HB-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

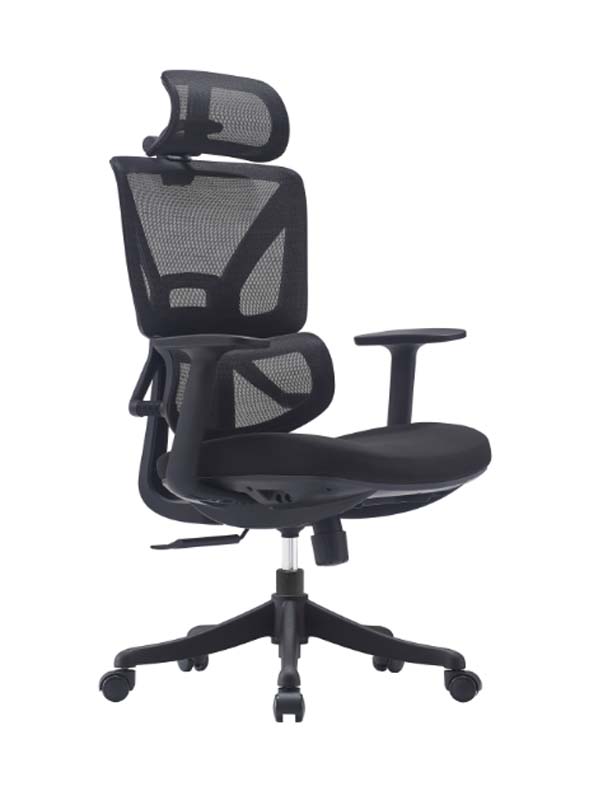

The Mesh High-Back Ergonomic Office Chair, model ERG-MESH-HB-01, presents a modern task-chair profile defined by a dark-gray mesh back and matching headrest, a dark upholstered foam seat, and a light-gray molded polymer frame. Its high-back form extends support from the lumbar region through the upper body, while the integrated headrest creates a continuous visual line above the backrest. Fixed-width padded armrests sit within a 540 mm clear arm span, and the nylon five-star base gives the chair a balanced commercial-office footprint. The overall dimensions are 650 x 650 x 1290 mm, including the elevated headrest. Breathable dark-gray woven mesh is tensioned over a framed polymer back structure, helping the backrest retain a light, open appearance. The seat uses dark fabric-facing over molded polyurethane foam and a polymer load-bearing shell. Its finished cushion is 90 mm thick, with a 70 mm molded foam comfort layer specified at a 45 kg/m3 density target and 40% rebound target. The backrest includes 70 mm of padding, while a separate curved lumbar carrier occupies a 240 mm support zone. Light-gray molded polymer forms the frame, side supports, lumbar carrier, armrest posts, and arm-cap structure, with a chrome-plated steel gas lift, light-gray nylon five-star base, black telescopic trim, and twin-wheel casters completing the construction. Functionality is centered on adjustability and movement. A right-side lever controls the pneumatic seat-height lift, which has a 90 mm public lift value, and the seat rotates through 360 degrees. The synchro-style tilt mechanism coordinates seat and back movement, with a 125-degree maximum back angle. The lumbar carrier follows the lower back and is adjusted by a side knob for depth or tension. Each armrest uses a visible side release button for height adjustment, with 80 mm of adjustment travel. Casters provide mobility across desk, meeting, and home-office settings. The chair is suited to individual desks and open-plan workstations where ventilation, lumbar support, swivel access, and full-day task support are priorities. It is also appropriate for conference rooms, manager offices, and home offices used for long meetings or computer work. Its recommended user weight capacity is 150 kg, and the suggested user height range reaches 190 cm. Durability targets include 100,000 caster rolling cycles, 100,000 gas-lift height-adjustment cycles, 300,000 seat-back tilt cycles, and a 45 kg vertical load target per arm; static seat verification is stated at 680 kg. Procurement teams should note the unbranded presentation and flat-packed supply format. The product is listed as one flat-packed carton, with reference logistics data showing one set per two cartons, a packaged gross weight of 23 kg per set, reference carton dimensions of 850 x 420 x 720 mm, and reference volume of 0.26 m3 per set. Reference assembly time is 40 minutes per set, making receiving, storage, and installation planning important for multi-seat office rollouts.

Mesh High-Back Ergonomic Office Chair with Adjustable Headrest and Armrests Specifications
