PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	660 × 660 × 1290 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	136 kg
Net weight	16.5 kg
Seat foam density	45 kg/m3
Back mesh tensile verification target	120 N warp and 100 N weft
Seat foam indentation hardness	65 N at 25% compression
Caster rolling durability target	100000 cycles
Gas-lift cycle durability target	100000 height-adjustment cycles
Base static load verification target	1134 kg vertical load
Fabric abrasion acceptance target	50000 Martindale cycles
Suitable user height range	1900 mm

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support	Dark gray elastic mesh tensioned in a black polymer outer frame
Seat cushion	80 mm molded foam pad with black woven or polyurethane upholstery
Headrest	Padded black outer cushion with gray mesh insert and polymer support housing
Lumbar component	Fixed black polymer lumbar panel attached to the central back spine
Armrests	Fixed black polymer T-arms with molded elbow pads and vertical posts
Lift and mechanism	Chrome-free black steel gas lift connected to a steel tilt mechanism under a polymer seat shell

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic lift operated by the visible under-seat lever with a 100 mm stroke
Back recline	Synchronized seat-and-back tilt with 24-degree rearward travel and tension control
Swivel movement	360-degree swivel around the gas-lift center column
Headrest adjustment	Height-adjustable headrest moving 80 mm along the central support post

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	860 x 650 x 360 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation use	Suitable for individual workstations, computer desks and shared administrative seating because it provides lumbar mesh, swivel mobility and height adjustment
Commercial project allocation	Recommended for open offices, meeting rooms and home offices needing a black neutral task chair with caster mobility

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1 applicability	Use for office chair dimensional and safety requirements when supplying European workplaces
EN 1335-2 applicability	Use for structural safety, stability and strength acceptance testing
EN 1335-3 applicability	Use for seat, backrest, arm and base durability test methods
EN 1021-1 cigarette ignition applicability	Use for upholstery cigarette ignition assessment if fabric seating is specified

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1 Office Chairs applicability	Use for safety, static load, swivel, tilt, caster and durability verification in commercial projects

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357 furniture strength tests	Apply relevant seating strength, backrest and leg static/durability test methods for acceptance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357 furniture strength tests: Apply relevant seating strength, backrest and leg static/durability test methods for acceptance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OC-MESH-HR-FA-BK-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OC-MESH-HR-FA-BK-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OC-MESH-HR-FA-BK-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

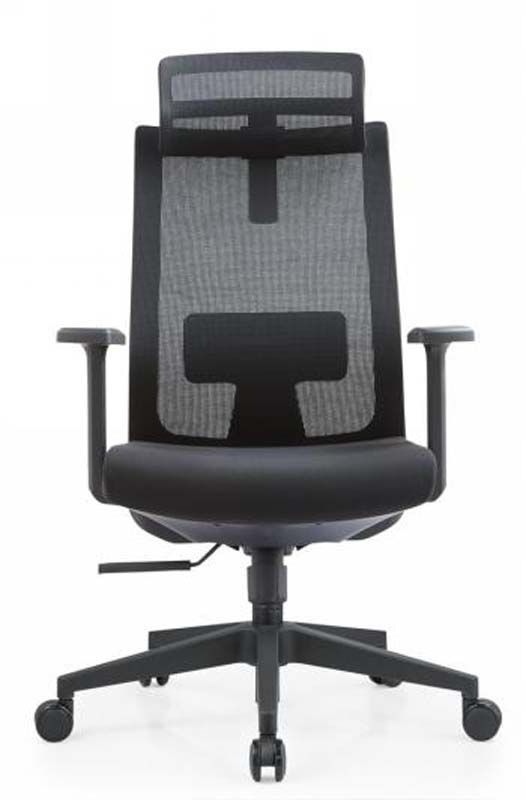

The Black Mesh Ergonomic Office Chair with Height-Adjustable Headrest and Fixed Arms presents a streamlined, high-back task-seating form in a restrained black and dark gray palette. Its mesh back is tensioned within a black polymer outer frame and follows a central back spine, while a fixed black polymer lumbar panel supports the lower-back region. The padded headrest combines a black outer cushion with a gray mesh insert and polymer support housing. Fixed black polymer T-arms with molded elbow pads and vertical posts frame the seat, giving the chair a structured workstation profile suited to neutral office interiors. Construction balances breathable support with practical durability. The backrest uses dark gray elastic mesh, and the seat features a molded foam pad upholstered in black woven or polyurethane material. Supporting components include a black plastic frame, fixed plastic armrests, a chrome-free black steel gas lift, a steel tilt mechanism under a polymer seat shell, and a nylon five-star base with twin-wheel casters. The chair has a finished seat cushion thickness of 90 mm, backrest padding thickness of 70 mm, lumbar support zone height of 240 mm, and 540 mm of clear width between the armrests. Overall dimensions are 660 x 660 x 1290 mm. Functional adjustment is focused on everyday desk use. A visible under-seat lever controls pneumatic seat-height adjustment with a 100 mm stroke. The synchronized seat-and-back tilt offers 24 degrees of rearward travel and includes tension control, while the center column allows 360-degree swivel movement. The headrest adjusts 80 mm in height along its central support post. Twin-wheel casters support movement across typical workplace seating layouts, and the fixed arms help maintain a consistent visual and spatial footprint. The recommended user weight capacity is 136 kg, and the chair has a net weight of 16.5 kg. This model is appropriate for individual workstations, computer desks, and shared administrative seating in open offices. Its black appearance also makes it suitable for meeting rooms and home offices where a coordinated, mobile task chair is required. For procurement planning, note that one set is supplied in two cartons, with a packaged gross weight of 23 kg and reference carton volume of 0.26 cubic meters per set. The reference assembly time is 40 minutes per set, so receiving, installation, and replacement scheduling should allow for on-site fitting. Buyers should also confirm floor surface compatibility, desk height, and arm clearance, particularly where the chair will be used with fixed-height workstations or enclosed work areas.

Black Mesh Ergonomic Office Chair with Height-Adjustable Headrest and Fixed Arms Specifications
