PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	630 × 620 × 1010 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	120 kg
Net weight	12.5 kg
Seat foam density	45 kg/m3 molded polyurethane
Back mesh static load	136 kg
Base static-load rating	1135 kg vertical proof load
Gas-lift class	Class 4, 100 mm stroke, 50 mm outer tube
Caster rolling durability	100000 cycles on hard-floor test surface
Seat-front edge load	750 kg static pressure
Fabric abrasion acceptance	50000 Martindale cycles
Recommended warranty	3 years structural and mechanism coverage

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest	Black flexible mesh tensioned over a black molded polymer outer frame
Seat cushion	Black woven fabric over 65 mm polyurethane foam on a molded plywood or polymer seat shell
Armrests	Fixed black polymer T-arms with integrated support posts and flat pads
Lift and column	Chrome-finish steel telescoping gas cylinder with black lower telescopic shroud
Five-star base	Black glass-filled nylon five-star caster base with swept legs
Casters	Black nylon twin-wheel swivel casters with steel mounting stems

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic lever raises and lowers the seat through 100 mm, from 440 to 540 mm
Back tilt control	Center-tilt or synchro mechanism reclines to 115 degrees with one lockable upright position
Tilt tension regulation	Rotary knob under the seat adjusts backward resistance for user weight
Swivel and mobility	360-degree swivel seat with five twin casters for omnidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

General office workstation	Suits open-plan desks, administrative workstations and home offices where a 540 mm seat height matches standard 760 mm desks.
Daily individual task seating	Intended for single-user daily computer work, with fixed arms, ventilated mesh back and rolling five-star base.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MB-TASK-MESH-BLK-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MB-TASK-MESH-BLK-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MB-TASK-MESH-BLK-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

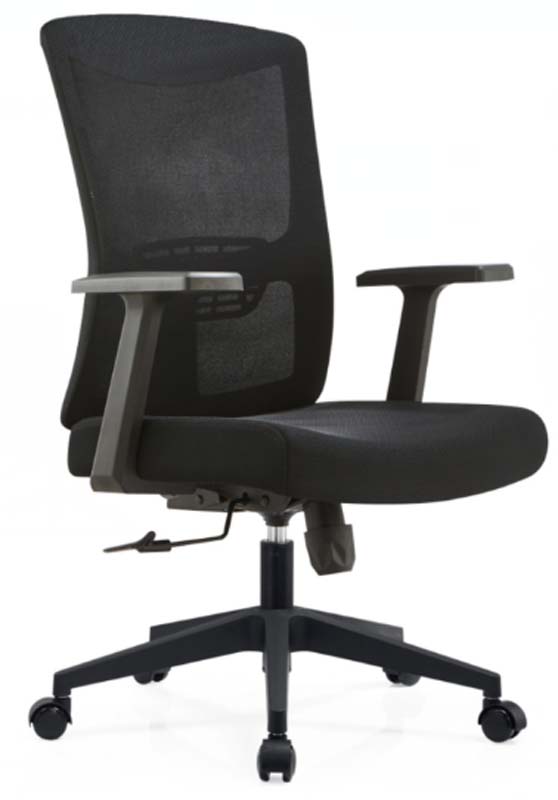

The Black Mesh Mid-Back Swivel Task Chair with Fixed Armrests presents a clean, functional office seating solution for daily computer work and general workstation use. Its black color scheme gives it a consistent, understated appearance: a flexible mesh back is tensioned within a molded polymer outer frame, while the seat is upholstered in black woven fabric. Fixed polymer T-arms with integrated support posts and flat pads frame the seating area, and a black five-star base with swept legs creates the familiar task-chair silhouette. The chrome-finish steel telescoping gas cylinder and black lower shroud provide a subtle contrast to the otherwise black frame. The chair is configured as a single seat on a central column, with five twin-wheel swivel casters set around the base for stable support and omnidirectional movement. Construction balances comfort, support and mobility. The backrest uses ventilated mesh over a polymer frame, and the seat combines a molded plywood or polymer shell with molded polyurethane foam covered by woven fabric. Fixed armrests and the glass-filled nylon base are finished in black, while the lift uses a Class 4 steel gas cylinder with a 100 mm stroke and 50 mm outer tube. Nylon twin-wheel casters with steel mounting stems complete the mobile base. Specification details include a 90 mm finished seat cushion, 70 mm backrest padding and a 240 mm lumbar support zone, with 540 mm of clear width between the armrests. Practical operation is handled through a pneumatic height lever, allowing the seat to move from 440 to 540 mm to suit standard desk positions. The center-tilt or synchro mechanism reclines to 115 degrees and includes one lockable upright position. A rotary knob beneath the seat adjusts backward resistance to the user, and the 360-degree swivel seat allows easy turning and reach without moving the complete chair. This model is appropriate for open-plan offices, administrative workstations, private desks and home offices, particularly where task seating is needed for one regular user. The ventilated back, fixed arms and rolling base suit routine desk-based work rather than collaborative lounge settings. Procurement teams should note the unbranded product identity, model MB-TASK-MESH-BLK-01, recommended user weight capacity of 120 kg, and 12.5 kg net weight. Each set ships in two cartons with a packaged gross weight of 23 kg, and reference assembly time is 40 minutes per set. These logistics should be reviewed alongside delivery access, storage space, required assembly labor and whether fixed arms suit the intended desk layout. For container planning, the reference data indicates 135 sets in a 20GP arrangement at 85 percent space utilization.

Black Mesh Mid-Back Swivel Task Chair with Fixed Armrests Specifications
