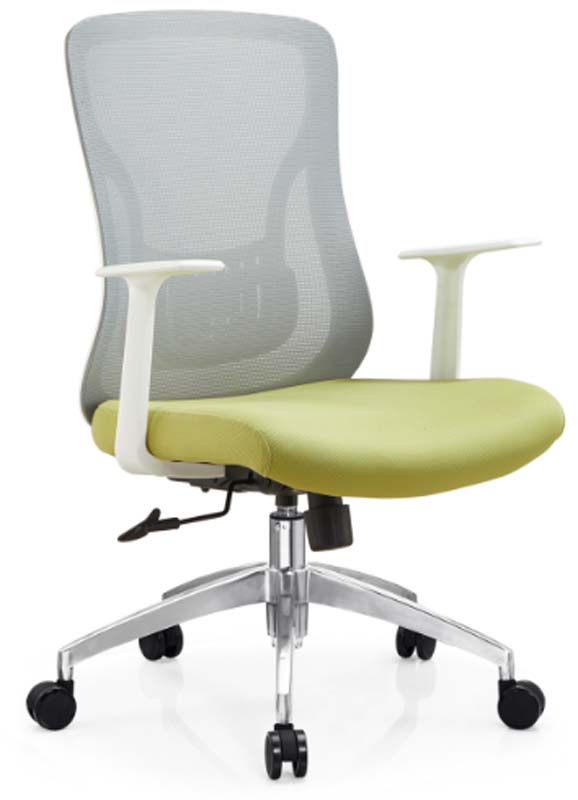

Mid-Back Mesh Swivel Task Chair with Green Upholstered Seat and White Fixed Arms (model TSK-MB-GRN-WHT-01) is listed under Mesh Office Chair. Dimensions: 630 × 610 × 1010 mm. Materials: Light gray woven polymer mesh over a contoured framed back for breathable lumbar and thoracic support. Load capacity: 1,020 kg static proof load. Product Features: ergonomic-contoured,mid-back,swivel,task,chair,fixed,armrests,mesh,back,upholstered,seat,five-star,caster,base. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | FENGGUAN | Model | TSK-MB-GRN-WHT-01 |
| Overall dimensions (W × D × H) | 630 × 610 × 1010 mm | Finished Seat Cushion Thickness | 90 mm |
| Backrest Padding Thickness | 70 mm | Lumbar Support Zone Height | 240 mm |
| Clear Width Between Armrests | 540 mm | Recommended user weight capacity | 120 kg |
| Net weight | 12.5 kg | Caster rolling durability | 40,000 cycles |
| Gas-lift cycle life | 100,000 height-adjustment cycles | Seat static load verification | 1,020 kg static proof load |
| Backrest rearward load target | 136 kg test force | Fabric abrasion acceptance | 50,000 Martindale cycles |
| Recommended user height range | 160 to 185 cm | Color options in visible configuration | 2 visible colors |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | Backrest | Light gray woven polymer mesh over a contoured framed back for breathable lumbar and thoracic support |
| Seat upholstery | Green woven textile cover over a padded cushion with sewn front edge | Seat cushion | Molded polyurethane foam pad, 70 mm thick, with a procurement density target of 45 kg/m3 |
| Armrests | White molded fixed T-arms with vertical support and horizontal elbow pad | Five-star base | Polished chrome-plated metal five-star base with five radiating legs |
| Gas lift and mechanism | Chrome telescoping gas lift with black metal tilt mechanism and adjustment lever | Height adjustment | Pneumatic right-side lever raises and lowers the seat through a 100 mm stroke from 420 to 520 mm |
| Tilt control | Black under-seat mechanism provides synchronized seat-and-back recline with a 12-degree maximum tilt target | Tilt tension and lock | Side knob sets tilt resistance and the mechanism locks in the upright working position at 0 degrees |
| Mobility | Five twin-wheel casters provide rolling movement on hard floors or low-pile carpet | Carton count | 1 flat-packed carton |
| Gross weight | 14.5 kg | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Carton Dimensions | 850× 420× 720 mm |
| Reference Packaged Gross Weight | 23 kg/set | Workstation use | Suitable for open-plan desks, private offices, and hot-desking where breathable mesh support and compact swivel movement are required |
| Facility procurement | Suited to projects needing multiple light-duty commercial chairs with fixed arms and caster mobility | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 630 × 610 × 1010 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight capacity | 120 kg | |
|---|---|---|
| Net weight | 12.5 kg | |
| Caster rolling durability | 40,000 cycles | |
| Gas-lift cycle life | 100,000 height-adjustment cycles | |
| Seat static load verification | 1,020 kg static proof load | |
| Backrest rearward load target | 136 kg test force | |
| Fabric abrasion acceptance | 50,000 Martindale cycles | |
| Recommended user height range | 160 to 185 cm | |
| Color options in visible configuration | 2 visible colors | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Backrest | Light gray woven polymer mesh over a contoured framed back for breathable lumbar and thoracic support | |
|---|---|---|
| Seat upholstery | Green woven textile cover over a padded cushion with sewn front edge | |
| Seat cushion | Molded polyurethane foam pad, 70 mm thick, with a procurement density target of 45 kg/m3 | |
| Armrests | White molded fixed T-arms with vertical support and horizontal elbow pad | |
| Five-star base | Polished chrome-plated metal five-star base with five radiating legs | |
| Gas lift and mechanism | Chrome telescoping gas lift with black metal tilt mechanism and adjustment lever |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Height adjustment | Pneumatic right-side lever raises and lowers the seat through a 100 mm stroke from 420 to 520 mm | |
|---|---|---|
| Tilt control | Black under-seat mechanism provides synchronized seat-and-back recline with a 12-degree maximum tilt target | |
| Tilt tension and lock | Side knob sets tilt resistance and the mechanism locks in the upright working position at 0 degrees | |
| Mobility | Five twin-wheel casters provide rolling movement on hard floors or low-pile carpet |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton count | 1 flat-packed carton | |
|---|---|---|
| Gross weight | 14.5 kg | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Workstation use | Suitable for open-plan desks, private offices, and hot-desking where breathable mesh support and compact swivel movement are required | |
|---|---|---|
| Facility procurement | Suited to projects needing multiple light-duty commercial chairs with fixed arms and caster mobility |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.1 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
