PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 690 × 1290 mm
Overall chair footprint	680 x 690 x 1290 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Suitable user body height	190 cm
Seat static-load verification target	680 kg
Backrest cyclic test target	120,000 cycles
Gas-lift cycles	100,000 operations
Caster rolling durability	100,000 cycles
Chair net weight reference	21 kg
Color options in visible program	1 visible color, light gray frame with gray mesh
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Back and headrest upholstery	Gray engineered polymer-fiber mesh with woven open-cell structure
Seat support surface	Gray mesh panel bonded or clamped to a molded load-distributing seat shell
Seat internal cushioning	8 mm molded elastic mesh carrier with 40 kg/m3 high-resilience foam reference
Structural frame	Light gray painted or powder-coated metal and reinforced polymer back frame
Arm supports and pads	Height-adjustable polymer or aluminum upright with molded polyurethane pad
Five-star base	Light gray molded reinforced nylon or die-cast aluminum five-star base

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Synchronized seat-back recline	Back reclines through 120 degrees with linked seat tilt and lockable positions
Seat-height control	Pneumatic lever raises and lowers the seat through a 90 mm stroke
Adjustable head support	Curved mesh headrest provides 90 mm height movement and 25-degree angular pivot
Independent lumbar support	Curved lumbar panel follows the lower back and is adjusted by the visible side knob or bracket

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

40-foot high-cube loading	370 cartons
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan and private office workstations	Suited to 8 hour desk work because the mesh back, headrest, lumbar panel, and synchro tilt provide adjustable support.
Home office and computer-task rooms	Fits users needing a mobile high-back chair with swivel, recline, adjustable arms, and compact caster footprint.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1 office furniture office chair dimensions	Applies to dimensional fit and adjustment-range verification.
EN 1335-2 office chair safety requirements	Applies to structural safety, stability, and shear-risk inspection.
EN 1335-3 office chair test methods	Applies to strength, durability, and mechanism validation by a laboratory.
EN 1022 domestic and contract seating stability	Applies to tipping assessment for the mobile high-back configuration.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1 office chairs general-purpose	Applies to static, dynamic, fatigue, stability, and arm-load acceptance tests.
ANSI/BIFMA e3 furniture sustainability standard	Applies only as an optional procurement requirement for materials, energy, and social impact.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357.2 furniture mechanical stability	Applies to chair stability verification on level floors during procurement inspection.
GB/T 10357.3 furniture strength and durability test	Applies to seat, back, arm, and caster fatigue acceptance for office seating.
GB/T 28001-2023 human factors office ergonomic principles	Applies to dimensional and adjustment review for seated office work.
GB 17927-2022 upholstered furniture fire safety	Applies only if the ordered configuration contains combustible soft padding specified for China.

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357.2 furniture mechanical stability: Applies to chair stability verification on level floors during procurement inspection.;
2. GB/T 10357.3 furniture strength and durability test: Applies to seat, back, arm, and caster fatigue acceptance for office seating.;
3. GB/T 28001-2023 human factors office ergonomic principles: Applies to dimensional and adjustment review for seated office work.;
4. GB 17927-2022 upholstered furniture fire safety: Applies only if the ordered configuration contains combustible soft padding specified for China.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EM-GRY-HR4D-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EM-GRY-HR4D-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EM-GRY-HR4D-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

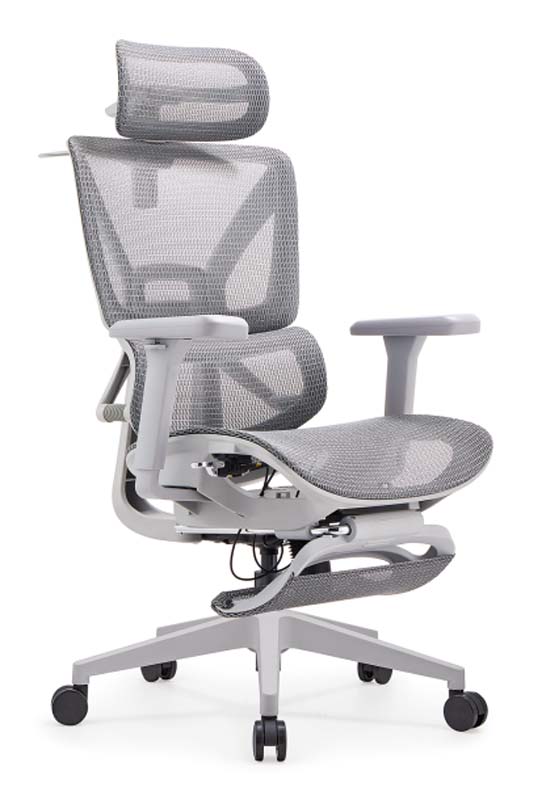

The Ergonomic Gray Mesh Executive Task Chair combines a structured high-back profile with a coordinated gray finish suited to professional work environments. Its tall mesh back, contoured headrest, molded seat, and four-dimensional arm supports create a layered executive appearance, while the five-star base and twin-wheel casters maintain the familiar mobility of a task chair. With an overall footprint of 680 x 690 x 1290 mm and a clear width of 540 mm between armrests, the design balances substantial back support with a practical workstation scale. Gray engineered polymer-fiber mesh with a woven open-cell structure is used on the back and headrest. The seat support uses a gray mesh panel bonded or clamped to a molded load-distributing shell, with a 90 mm finished cushion, an 8 mm molded elastic mesh carrier, and high-resilience foam specified at 40 kg per cubic meter. The backrest has 70 mm of padding and a 240 mm lumbar support zone. Its light gray frame is offered in painted or powder-coated metal with a reinforced polymer back frame, while arm uprights may be polymer or aluminum and pads are molded polyurethane. Buyers can select from a molded reinforced nylon or die-cast aluminum five-star base, both finished in light gray. Functional support is delivered through synchronized seat-and-back recline. The back moves through 120 degrees with linked seat tilt and lockable positions, and a pneumatic lever provides 90 mm of seat-height adjustment. The curved mesh headrest moves 90 mm in height and pivots through 25 degrees, while the independent curved lumbar panel follows the lower back and is set with the visible side knob or bracket. The 4D arms add further personal adjustment, and swivel, gas lift, and black casters support easy movement at the desk. The chair is appropriate for open-plan workstations, private offices, home offices, and computer-task rooms where users need a high-back chair capable of supporting extended desk work. It is specified for users up to 190 cm tall and 150 kg. Design verification targets include a 680 kg static seat load, 120,000 backrest cycles, 100,000 gas-lift operations, and 100,000 caster rolling cycles. Procurement teams should note the unbranded model EM-GRY-HR4D-01, 21 kg net chair weight, two-carton packaging, 23 kg packaged weight, 0.26 cubic meter carton volume, and 40-minute assembly reference. A 40-foot high-cube container accommodates 370 cartons.

Ergonomic Gray Mesh Executive Task Chair with Adjustable Headrest and 4D Arms Specifications
