PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	650 × 650 × 1290 mm
Overall product envelope	650 x 650 x 1290 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	136 kg
Net weight reference	16.5 kg
Seat foam density	45 kg/m3
Seat foam thickness	80 mm
Back mesh fabric abrasion acceptance	50,000 Martindale cycles
Caster rolling durability acceptance	100,000 cycles
Gas lift cyclic durability acceptance	100,000 height cycles
Base static load acceptance	1134 kg
Seat downward static load acceptance	1590 kg
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest	Black flexible mesh tensioned in a framed ergonomic outer support
Seat cushion	Black woven fabric over 80 mm cut or molded polyurethane foam
Lumbar insert	Black padded flexible lumbar panel integrated into the mesh back
Headrest	Black mesh center panel with curved polymer outer frame
Armrests	Rigid black polymer T-armrests with vertical posts and flat pads
Internal frame and mechanism	Black steel seat plate with polymer back frame and steel connector brackets

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic lever raises or lowers the seat over a 540 mm working range
Swivel movement	360-degree swivel around the central gas lift
Recline and tension control	Synchro-style tilt mechanism with 118-degree full recline and side tension knob
Headrest positioning	Curved headrest provides 80 mm height adjustment and pivoting neck support

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation use	Suited to individual desk-based work where breathable back support, swivel access and height adjustment are required
Shared business spaces	Appropriate for open offices, home offices and meeting rooms needing a black neutral task chair

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EMC-MESH-HR-BLK-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EMC-MESH-HR-BLK-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EMC-MESH-HR-BLK-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

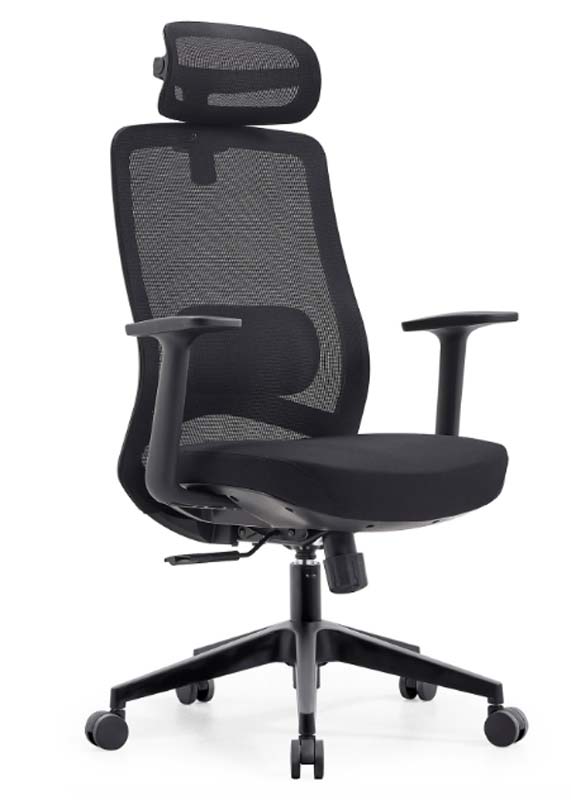

The Black Mesh Ergonomic Office Chair with Adjustable Headrest and Fixed Armrests is a high-back task chair with a clean, neutral appearance suited to professional and residential work settings. Its black finish creates a coordinated look across the mesh back, headrest, frame, armrests, base, and casters. The tall back uses flexible mesh tensioned within an ergonomic outer support, while a padded flexible lumbar panel is integrated into the lower back area. A curved headrest with a black mesh center and polymer frame extends the supportive profile, and rigid T-shaped armrests provide simple, fixed side support with flat pads. The chair has an overall envelope of 650 by 650 by 1290 millimeters, with a 540-millimeter clear width between armrests. Construction combines a fabric-upholstered foam seat, black nylon or steel framing, steel connector brackets, a painted metal five-star base, and twin-wheel nylon casters. The seat uses black woven fabric over cut or molded polyurethane foam. The finished cushion thickness is 90 millimeters, with an 80-millimeter foam specification and 45 kilogram per cubic meter foam density. The backrest padding specification is 70 millimeters, and the lumbar support zone height is 240 millimeters. Material and component acceptance references include 50,000 Martindale cycles for the back mesh fabric, 100,000 rolling cycles for the casters, and 100,000 height cycles for the gas lift. Recommended user weight capacity is 136 kilograms, and net weight reference is 16.5 kilograms. Daily operation is supported by pneumatic seat-height adjustment through a lever, a 360-degree swivel around the central gas lift, and a synchro-style tilt mechanism. Recline reaches 118 degrees, and a side tension knob allows tilt resistance to be adjusted. The headrest offers 80 millimeters of height adjustment and pivots to support the neck. These features make the chair appropriate for individual desk-based work requiring breathable back support, easy movement, and adjustable posture. The model EMC-MESH-HR-BLK-01 is an unbranded ergonomic office chair suitable for open offices, private workstations, home offices, and meeting rooms where a black neutral task chair is preferred. Procurement teams should plan for one set supplied in two cartons, packaged gross weight of 23 kilograms, 0.26 cubic meter carton volume, and a reference assembly time of 40 minutes per set. A 20-foot general-purpose container indication is 135 sets at 85 percent space utilization. Buyers should also confirm fixed armrest compatibility with desk dimensions and review assembly, replacement component, and delivery terms before ordering.

Black Mesh Ergonomic Office Chair with Adjustable Headrest and Fixed Armrests Specifications
